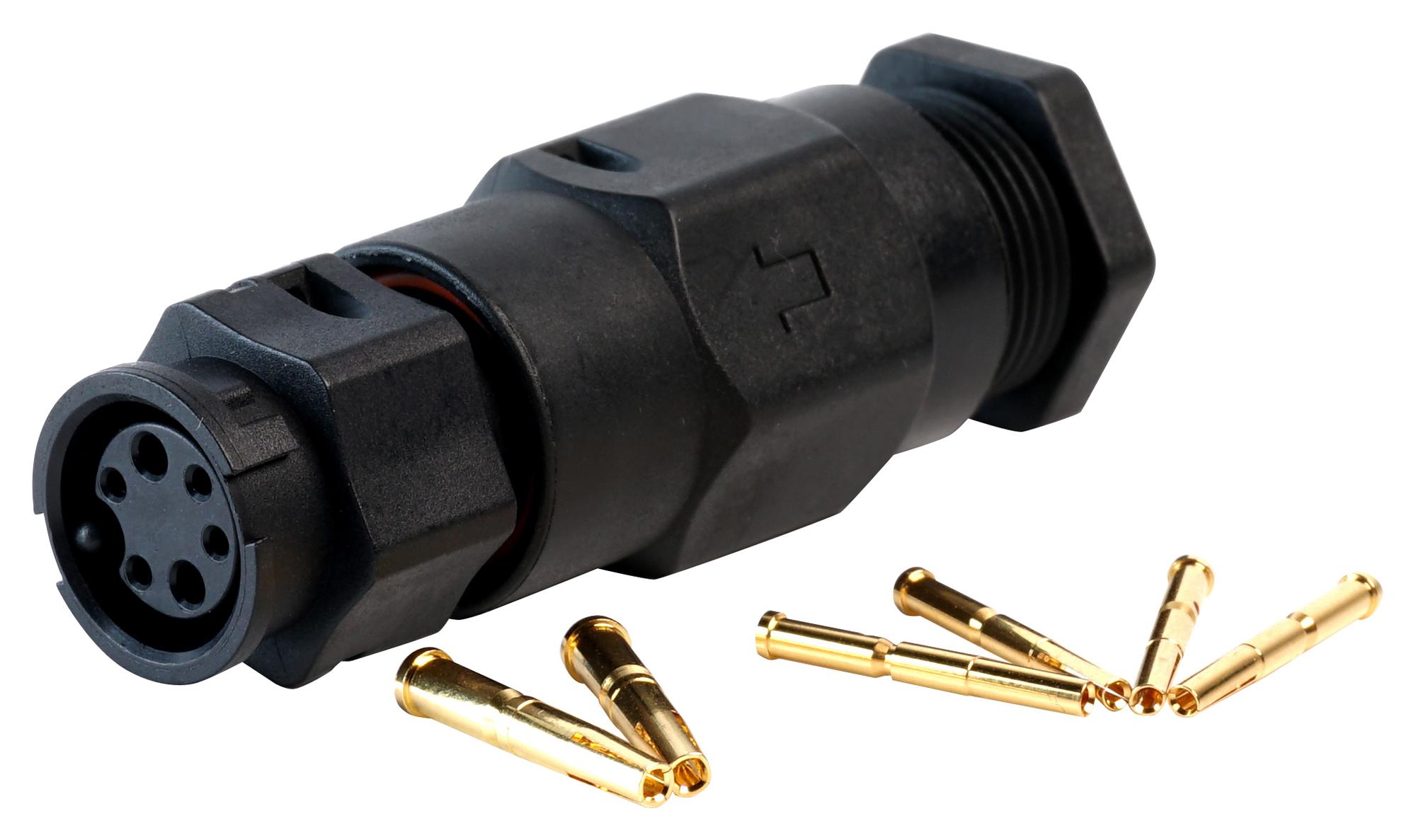

MULTICOMP PRO MP002499 Hybrid Connectors
The MP Hybrid Series offers a versatile solution for combining power and signal connections within a single, compact housing, ideal for applications with limited panel space. These connectors are environmentally sealed to IP67 standards, ensuring reliable protection even when unmated or without the sealing cap. They feature fully rear potted panel-mount connectors, providing additional durability. Available in C2 and C3 sizes, they fit 16mm and 20.75mm panel cut-outs respectively. The connectors support solder, crimp, or pre-wired terminations and utilize bayonet-style mating for quick and secure installation. Suitable for automation and process control, marine, medical, and security applications.
MULTICOMP PRO MP002499 Hybrid Connectors Specifications:
- IP Rating: IP67
- Housing Material: Thermoplastic
- Contact Material: Copper Alloy, Au Plated
- Seal Material: Silicone
- Cable Type: UL20549, 16AWGx3C+26AWGx2C+Al/My+D, OD=8mm
- Panel Mount Size: 16mm or 20.75mm
- Panel Thickness: 0.8mm to 4mm
- Recommend Cover Torque: 6 to 7Kgf-cm
- Recommend Gland Nut Torque: 9 to 10Kg-cm
- Wiring Methods: Solder, Crimp, Pre-wired
- Sealing: Environmentally sealed to IP67 standards
- Mating: Bayonet-style for quick and secure connection
- Application: Automation, process control, marine, medical, security
- Dimensions: Fits panel cut-outs of 16mm and 20.75mm
Buy the Multicomp Hybrid Connectors – Reliable IP67 Power and Signal Solutions for Industrial Applications
Discover the innovative hybrid connectors designed for demanding industrial environments. Support power and signal transmission with IP67 sealing, quick bayonet mating, and versatile terminations. Perfect for automation, marine, medical, and security applications, these connectors ensure durability, reliability, and ease of installation. Purchase online today to benefit from fast delivery and expert support. Enhance your industrial and process control systems with our high-quality, sealed, and easy-to-mate hybrid connectors—trusted for demanding technical needs.
Buy Multicomp Hybrid Connectors now and experience unmatched reliability and performance in industrial environments with quick, secure connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002499?
You can click on the BUY or RFQ button to purchase MP002499 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002499?
You can download the MP002499 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002499?
MULTICOMP PRO
