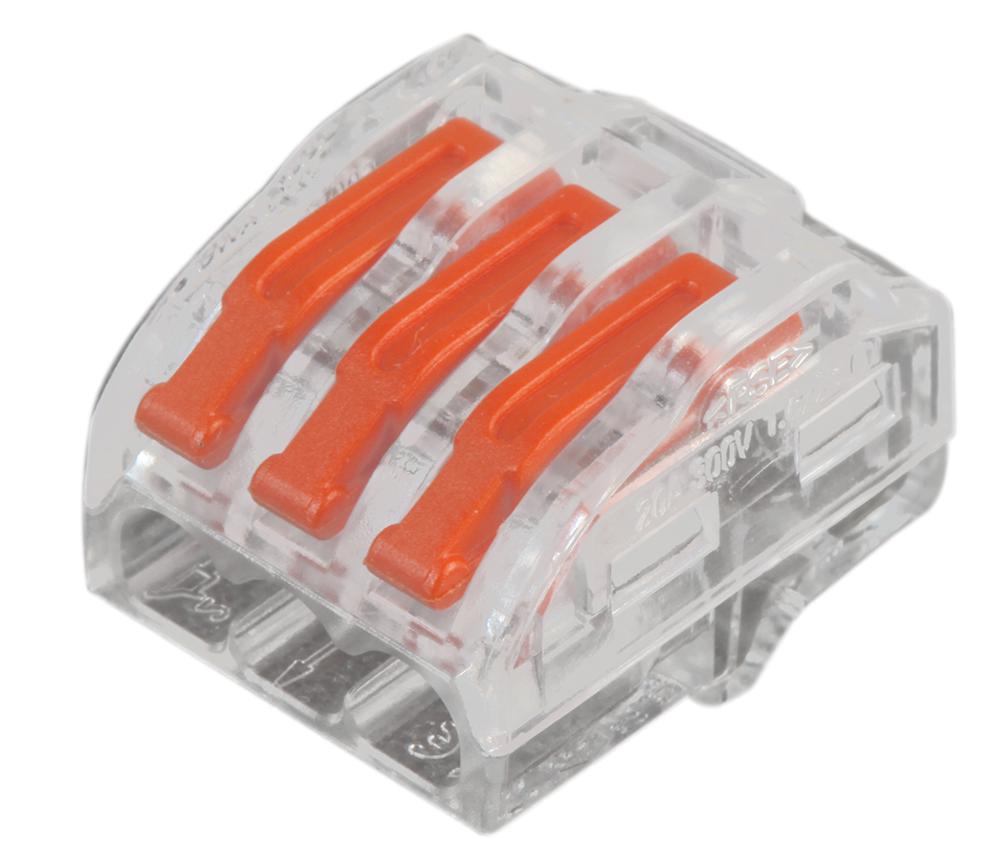

MULTICOMP PRO MP007140 Lever Wire Connector
This Multicomp Pro splicing connector features a lever lock mechanism that enables easy and tool-free connection of solid, stranded, and fine stranded cables. Suitable for conductors up to 4mm², it supports a maximum voltage of 450V AC and a current capacity of 32A, making it ideal for various electrical wiring applications. Made from durable materials with a polycarbonate body and polyamide 66 levers, this connector ensures reliable electrical connections. It complies with RoHS standards and UL94V-0 flammability rating, providing safety and compliance for professional electrical installations.
MULTICOMP PRO MP007140 Lever Wire Connector Specifications:
- Conductor Cable Size Range: 0.2mm² to 4mm², Stranded or Solid Core
- Conductor Strip Length: 10mm
- Current Rating: 32A
- Voltage Max: 450V~
- Temperature Rating: 85°C Max
- Material: Body - Polycarbonate, Levers - Polyamide 66, Terminals - Tin-plated Copper
- Dimensions: Width 16.8mm, Height 7.45mm, Depth 20.7mm
- Flammability Rating: UL94V-0
Buy the Buy Multicomp Pro Lever Wire Connector Part Number MP007140 Online
Purchase the Multicomp Pro Lever Wire Connector MP007140 online for easy, tool-free wiring of electrical conductors. Designed for solid and stranded cables up to 4mm², it supports 32A current and 450V voltage. Crafted with durable polycarbonate and polyamide materials, it ensures safety with UL94V-0 flammability ratings. Ideal for professional electrical installations, this connector features a lever lock mechanism for quick, secure connections. Available now to streamline your wiring projects with high reliability and safety standards.
Buy Multicomp Pro MP007140 now and experience reliable, tool-free cable connections with high current capacity and safety compliance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP007140?
You can click on the BUY or RFQ button to purchase MP007140 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007140?
You can download the MP007140 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP007140?
MULTICOMP PRO
