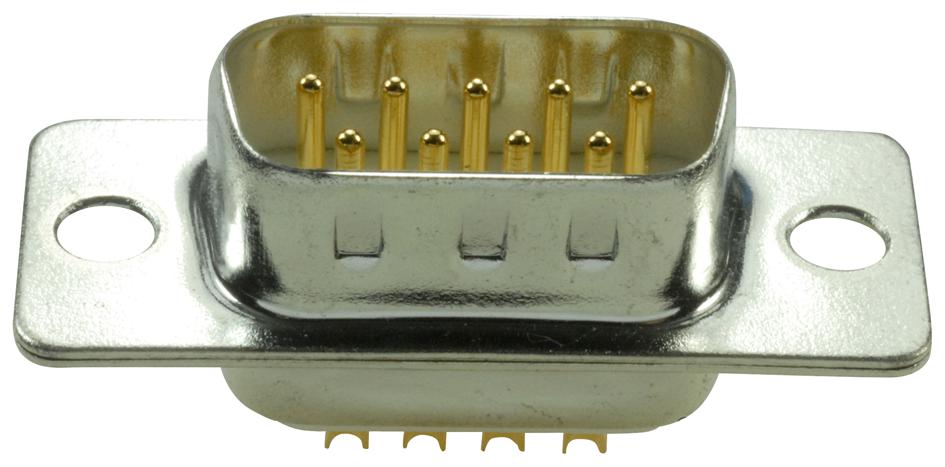

MULTICOMP PRO MP007536 D-Sub Connector
This 9-pin D-Sub connector features a male solder type with machined contacts, plated with 1 micro inch gold for enhanced conductivity and durability. It has an insulator made of glass-filled thermoplastic PBT with UL94V-O flame rating, ensuring safety. The front and back shells are steel with nickel and tin coatings, respectively, providing corrosion resistance. It supports a maximum current of 5A and a voltage rating of 250V AC, making it suitable for reliable data and power connections in various electronic and industrial applications. Designed for robustness, it ensures secure mating and long-lasting performance.
MULTICOMP PRO MP007536 D-Sub Connector Specifications:
- Insulator Material: Glass-filled thermoplastic PBT, UL94V-O
- Contact Material: Copper Alloy, Machined Pin, 1 Micro Inch Gold-Plated
- Front Shell: Steel, 60u” Nickel Coating
- Back Shell: Steel, 100u” Tin Coating
- Contact Resistance: 20mΩ Max at 1 Amp DC
- Insulation Resistance: 1000 MΩ @ 500V DC
- Dielectric Withstanding Voltage: 1000V AC/rms 60Hz for 1 minute
- Current Rating: 5 Amp
- Voltage Rating: 250V AC/rms 60Hz
- Dimensions: Millimeters (Inches), detailed dimensions in provided datasheet
Buy the Multicomp MP007536 – Reliable D-Sub for Industrial Applications
Order the versatile D-Sub Connector with 9 pins today through our online platform. Designed for durability and high performance, this solder-type connector features machined, gold-plated contacts for reliable electrical connections. Its robust steel shells with nickel and tin coatings make it ideal for industrial and electronic applications, supporting 5A current and 250V voltage ratings. Easy to install and highly durable, this connector ensures secure mating and long-term performance, making it an essential component for your electronic assembly needs.
Get Multicomp MP007536 today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP007536?
You can click on the BUY or RFQ button to purchase MP007536 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007536?
You can download the MP007536 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP007536?
MULTICOMP PRO
