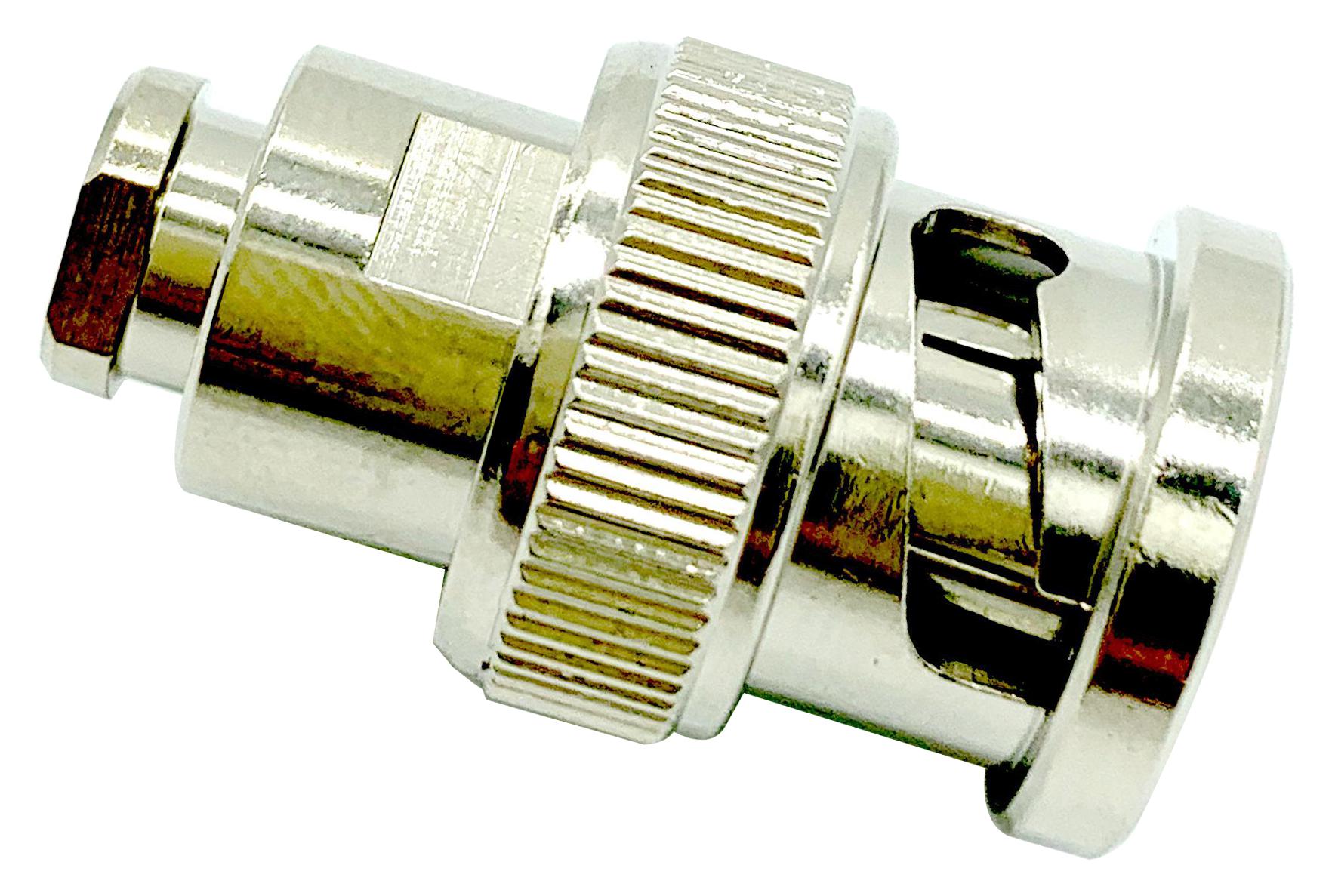

MULTICOMP PRO MP007942 RF Coaxial Connector
The BNC-J3 is a high-quality RF coaxial connector with a silver plated brass contact, nickel plated brass body, and PTFE insulation, suitable for connecting RG174, RG316, and RG179 cables. Designed for cable mounting and solder type coaxial termination, it offers a characteristic impedance of 50Ω and operates from 0GHz to 4GHz. Key features include low contact resistance, high insulation resistance, voltage withstand capability of 1500V, and durability of 500 cycles, making it ideal for reliable RF communication systems.
MULTICOMP PRO MP007942 RF Coaxial Connector Specifications:
- Characteristic Impedance: 50Ω
- Frequency Range: 0GHz to 4GHz
- Contact Resistance: Center Conductor <1.5mΩ, Out Conductor <0.2mΩ
- Insulation Resistance: 25000 MΩ
- Insulator Voltage Withstanding: 1500V
- VSWR: ≤1.5
- Connector Durability: 500 cycles
- Materials: Brass Nickel-plated body, Gold-plated brass contact, PTFE Insulation
- Cable Compatibility: RG174, RG316, RG179
- Mounting Type: Cable mounting and solder type
Buy the Multicomp Series RF Coaxial Connector: MP007942
Purchase the Multicomp Series RF coaxial connector MP007942 online today and enjoy top-tier quality with durable construction, excellent impedance matching, and reliable performance across a broad frequency range. Designed for connecting RG174, RG316, and RG179 cables, this connector features a nickel-plated brass body with PTFE insulation, ensuring longevity and stability in high-frequency applications. With low contact resistance and high insulation resistance, it guarantees optimal signal integrity. Easy to install with cable mounting and solder options, it’s the ideal choice for professional RF systems.
Buy Multicomp Series MP007942 now and experience unmatched reliability and performance in RF communications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP007942?
You can click on the BUY or RFQ button to purchase MP007942 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007942?
You can download the MP007942 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP007942?
MULTICOMP PRO
