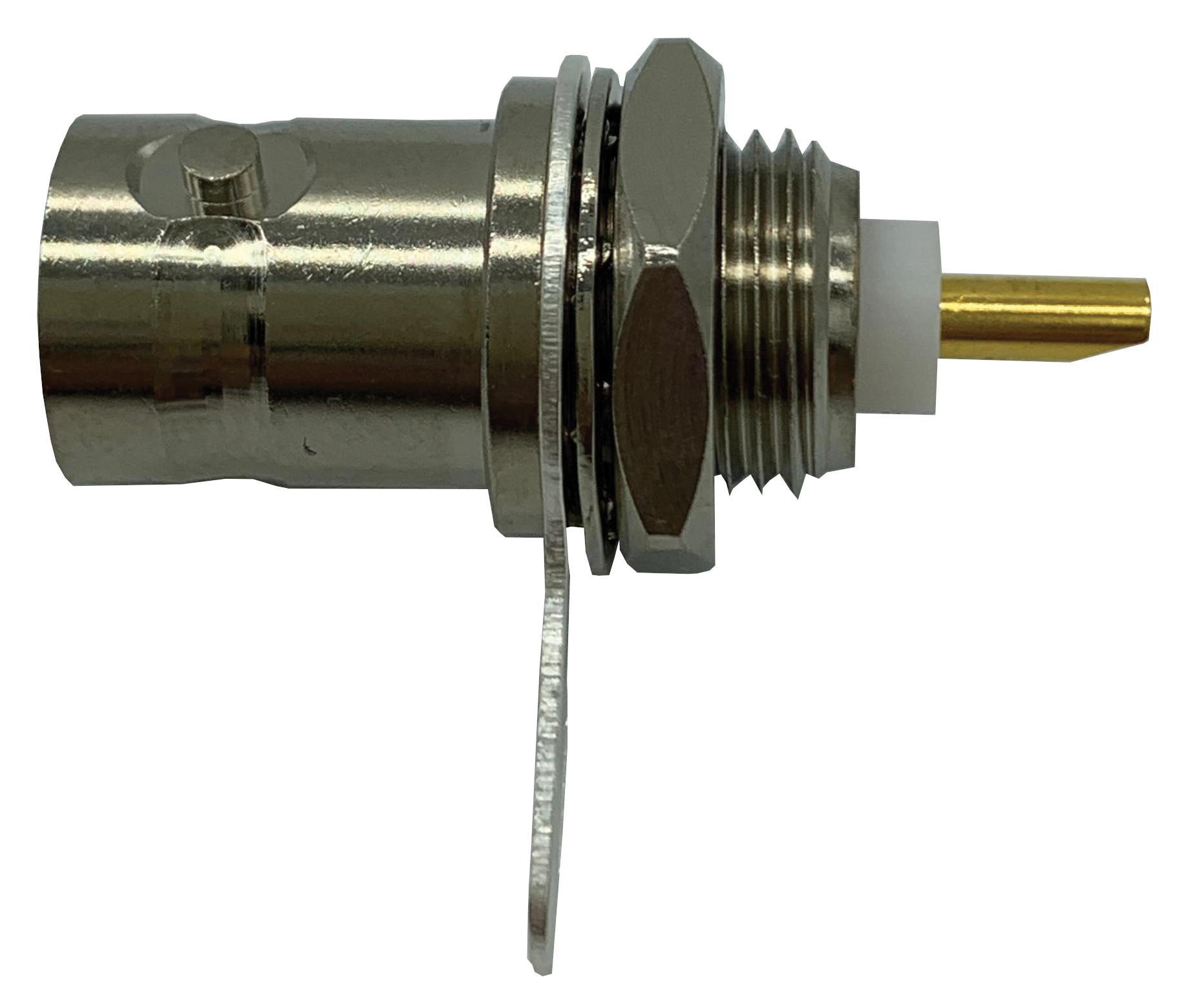

MULTICOMP PRO MP007943 RF Coaxial Socket
The MP007943 is a high-performance BNC straight bulkhead socket designed for RF and coaxial applications. Made with nickel-plated brass and PTFE insulation, it features a gold-plated beryllium copper contact for enhanced conductivity. Suitable for connecting RG174 cables, it offers reliable solder coaxial termination. With a characteristic impedance of 50Ω and a frequency range up to 4GHz, this connector ensures low contact resistance, high insulation resistance, and durability over 500 cycles. Ideal for industrial, communication, and electronic testing applications where dependable RF connections are essential.
MULTICOMP PRO MP007943 RF Coaxial Socket Specifications:
- Characteristic Impedance: 50Ω
- Frequency Range: 0GHz to 4GHz
- Contact Resistance: Center Conductor <$1.5mΩ, Out Conductor <$0.2mΩ
- Insulation Resistance: 25000 MΩ
- Insulator Voltage Withstanding: 1500V
- VSWR: ≤1.3
- Connector Durability: 500 cycles
- Material: Brass with Nickel Plating, Gold-plated Beryllium Copper Contact
- Insulation: PTFE
- Cable Compatibility: RG174
- Termination Type: Solder coaxial
- Mounting: Bulkhead socket
- Application: RF, communication systems, test equipment
Buy the Multicomp MP007943 – Reliable RF Coaxial for Industrial Applications
Order the multicomp MP007943 RF coaxial socket online today and enhance your electronic and communication projects with a high-quality, durable connector. Featuring gold-plated contact and nickel-plated brass body, it provides excellent conductivity, low contact resistance, and high insulation resistance up to 25000 MΩ. Suitable for RG174 cables, with a frequency range up to 4GHz and a characteristic impedance of 50Ω, this bulkhead socket ensures reliable performance across demanding industrial and testing environments. Easy to install and built for durability over 500 cycles.
Buy multicomp MP007943 now and experience unmatched reliability and high-performance in RF connection solutions for industrial and communication systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP007943?
You can click on the BUY or RFQ button to purchase MP007943 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007943?
You can download the MP007943 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP007943?
MULTICOMP PRO
