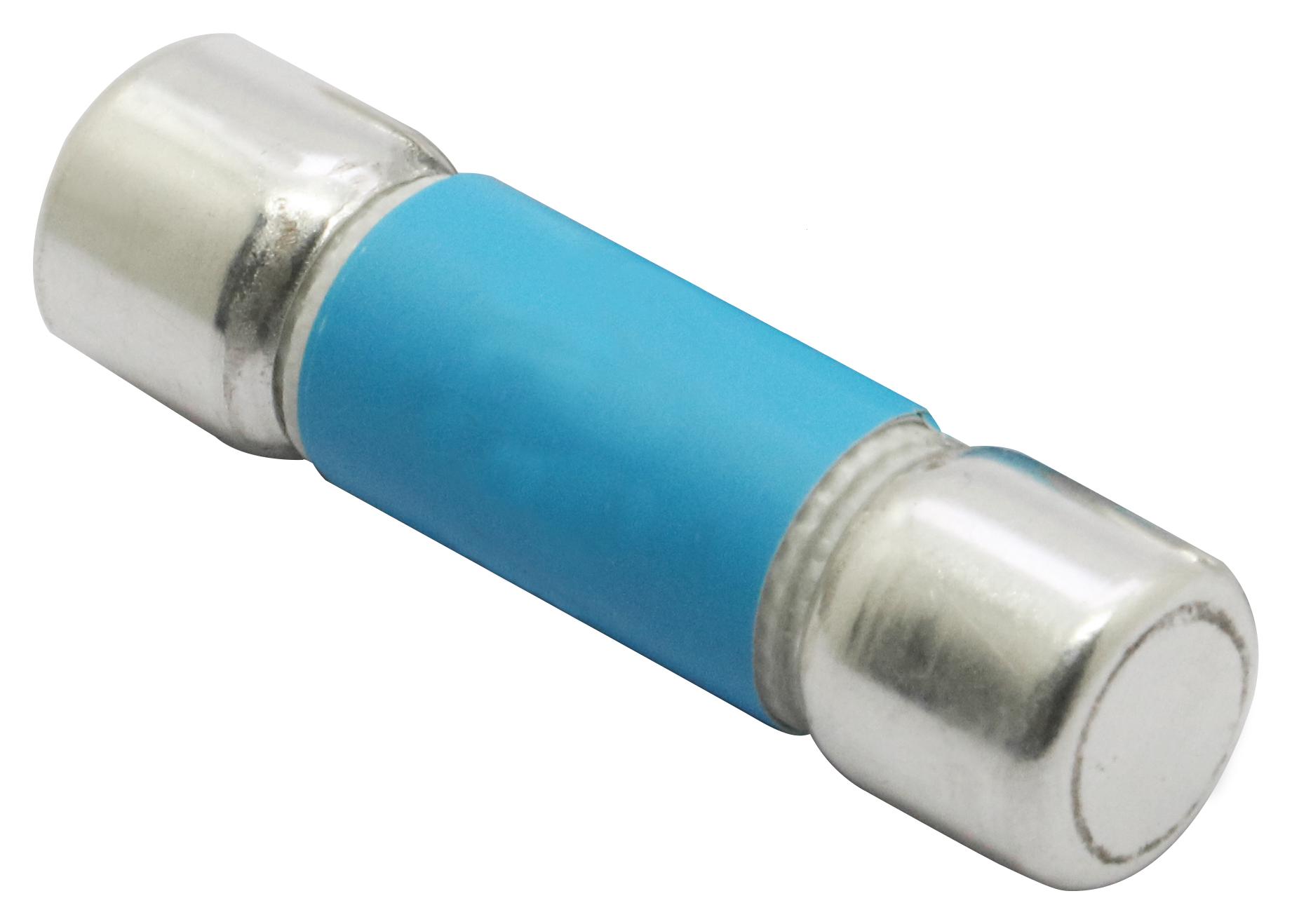

MULTICOMP PRO MP008150 Cylindrical Fuse
These 10mm x 38mm cylindrical fuses are high-power PV protection components rated for 1100V DC, with current ratings from 1A to 32A. Featuring glass-fiber links, silver-plated caps, and UL IEC approvals, they are designed for reliable circuit protection in inverter, junction, and battery systems. Their fast response time of 1ms to 3ms ensures quick fault clearance while providing high breaking capacity up to 30 kA. Customizable options and compliance with RoHS make these fuses ideal for demanding industrial and renewable energy applications.
MULTICOMP PRO MP008150 Cylindrical Fuse Specifications:
- Rated Voltage: 1100V DC
- Rated Current: 1A to 32A
- Breaking Capacity: 30 kA at 1100V DC (IEC and UL compliant)
- Time Constant: 1ms to 3ms
- Body Dimensions: 10mm x 38mm
- Materials: Glass-fiber link, silver-plated caps
- Certifications: IEC 60269-6, UL 248-19
- Dissipation: Up to 240W depending on current rating
- Pre-Arcing I-t: Measured at <10% rated current at 25°C ambient
- Applications: PV arrays, inverters, junction boxes, battery systems
Buy the Multicomp Cylindrical Fuse – Reliable PV Protection for Industrial Applications
Enhance your electrical safety with these reliable cylindrical fuses rated for 1100V DC. Available in multiple current ratings from 1A to 32A, these fuses feature glass-fiber links, silver-plated caps, and robust UL/IEC approvals, making them ideal for solar power systems, inverters, and industrial equipment. With quick trip times of 1ms to 3ms and a high breaking capacity of 30 kA, they ensure fast fault clearance and system protection. Conveniently order online to secure dependable performance for your critical energy and power applications.
Order your multicomp cylindrical fuse part MP008150 today and ensure your PV and inverter systems are protected with dependable high-current fuses.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP008150?
You can click on the BUY or RFQ button to purchase MP008150 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP008150?
You can download the MP008150 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP008150?
MULTICOMP PRO
