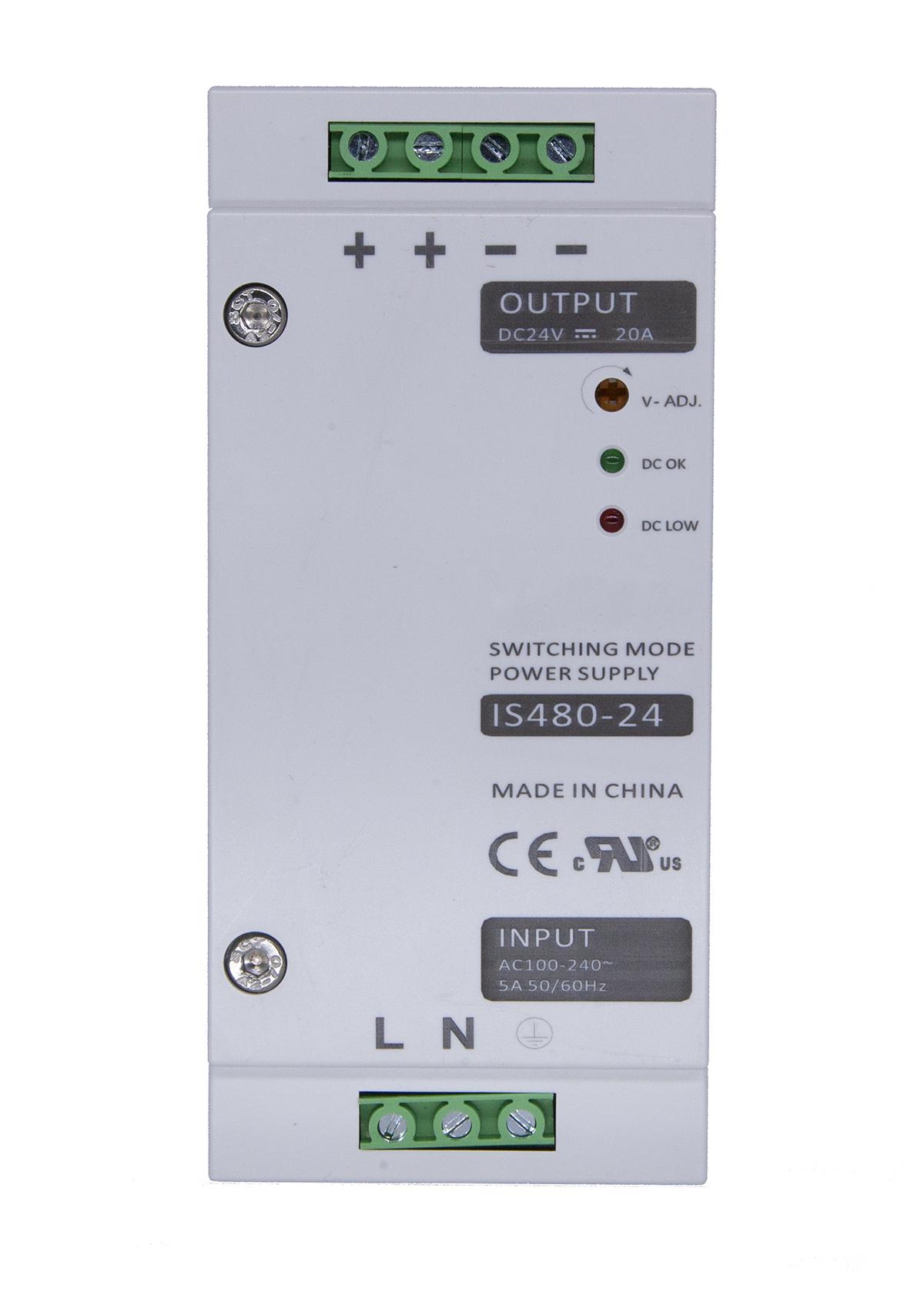

MULTICOMP PRO MP003278 Industrial Power Supply
The 480W AC-DC DIN rail power supply offers reliable, high-performance single-phase input voltage operation from 90V AC to 264V AC. It features compact DIN rail mounting, high efficiency up to 94%, and comprehensive protections including short circuit, overvoltage, overcurrent, and overtemperature. With LED indicators for DC power status and low voltage fault, it supports process control, factory automation, traffic systems, and other industrial applications. Its robust design includes free air convection cooling, wide operating temperature from -25°C to +70°C, and a durable construction suitable for harsh environments. It ensures safe, stable power delivery for industrial use.
MULTICOMP PRO MP003278 Industrial Power Supply Specifications:
- Input Voltage: 90V AC to 264V AC
- Input Frequency: 47Hz to 63Hz
- Output Voltage Range: 22V to 27V adjustable via V-ADJ
- Output Power: 480W, 24V, 20A
- Efficiency: Max 94%, Typical 93%
- Ripple: Max 100mV at full load
- Protection: Short circuit, over voltage, over current, over temperature
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- MTBF: 230,000 hours
- Dimensions: 60mm x 130mm x 125mm
- Weight: 1000g
- Safety Certifications: CE, FCC, CB, UL, CUL
- Isolation Voltage: Input-Output 3kV AC
Buy the Multicomp 2783 U+2013 Reliable Power Supply for Industrial Applications
Upgrade your industrial setup with the reliable 480W AC-DC DIN rail power supply. Designed for high performance, it features adjustable output, wide input voltage, and comprehensive protection functions. Its compact, DIN rail mountable form factor makes installation straightforward in control panels, factory automation, traffic systems, and other heavy-duty applications. With certifications like UL, CE, and FCC, it guarantees safety and stability. Enhance your operational efficiency by ordering this dependable power supply online, ensuring your systems remain powered with consistent, safe, and efficient energy.
Order your multicomp series MP003278 power supply today and ensure dependable power delivery for your industrial automation and process control projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP003278?
You can click on the BUY or RFQ button to purchase MP003278 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003278?
You can download the MP003278 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP003278?
MULTICOMP PRO
