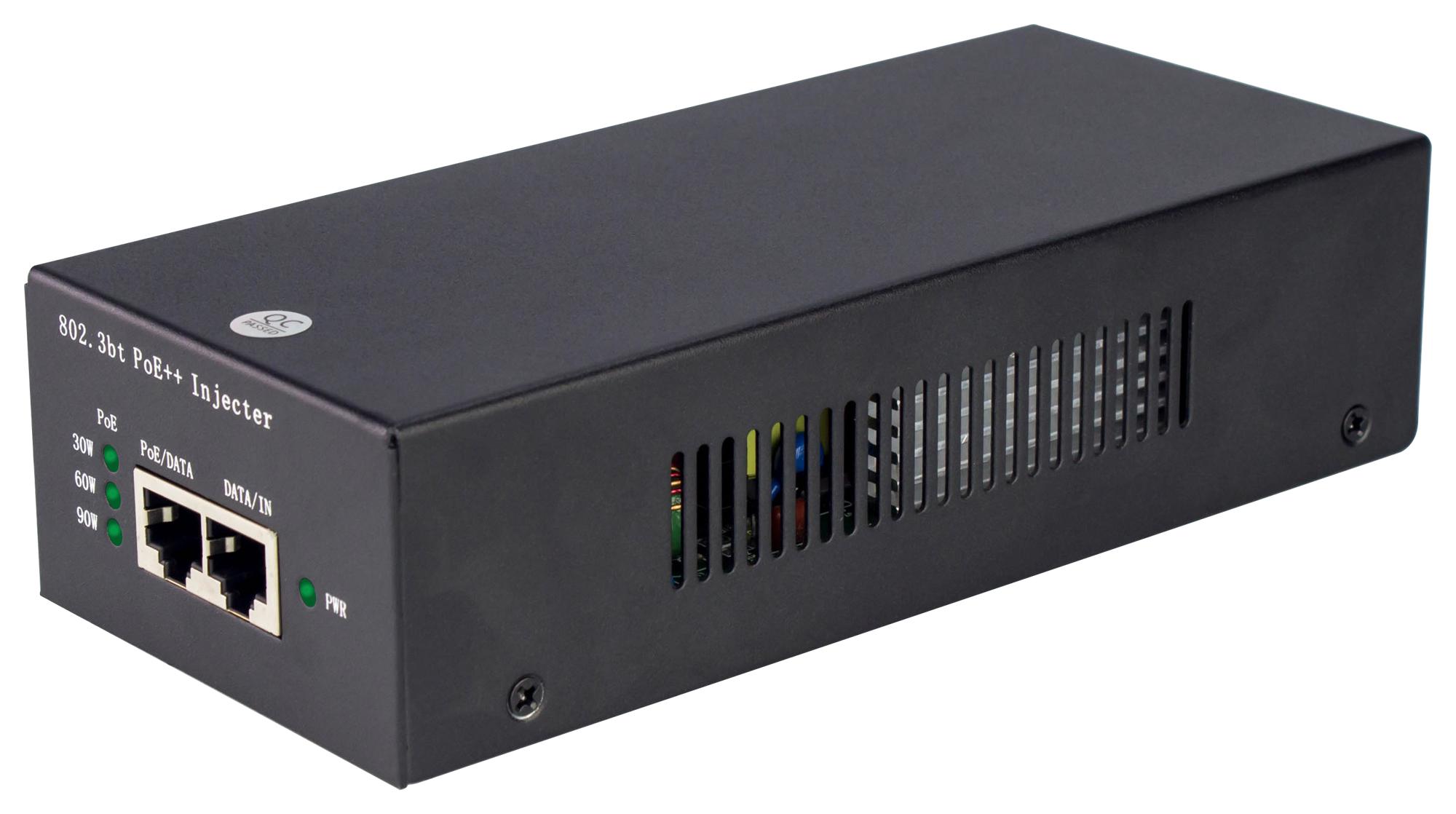

MULTICOMP PRO MP008632 PoE Injector
This 1-channel PoE Injector provides a compact, reliable, and cost-effective solution for powering network devices over Ethernet. Supporting IEEE 802.3af, at, and bt standards, it delivers up to 90W of power over four pairs, with simple plug-and-play installation, internal AC/DC conversion, surge protection, and distance up to 100 meters. Suitable for wireless access points, IP cameras, VOIP phones, and low port density setups, it ensures seamless remote powering without external power supplies, making network deployment efficient and secure.
MULTICOMP PRO MP008632 PoE Injector Specifications:
- No. of channels: 1
- Pass Through Data Rates: 10/100/1000Mbps
- Output Power Voltage: 54V DC
- User Port Power: 90W MAX
- AC Input Voltage: 100 to 240 V AC
- AC Input Current: 1A 100-240 V
- AC Frequency: 50 Hz to 60 Hz
- Dimensions: 173mm x 83mm x 44mm
- Indicators: System AC Power, Channel Power (30W, 60W, 90W)
- Connectors: Shielded RJ-45, EIA 568A and 568B
- Protection: Over current, Overload, Over voltage, Anti-interference
- Operating Temperature: 0°C to 45°C
- Operating Humidity: Max 80%, Non-condensing
- Storage Temperature: -20°C to 70°C
- Storage Humidity: Max 80%, Non-condensing
- Regulatory Compliance: IEEE 802.3af/at/bt standards, 15.4W, 30W, 90W
Buy the Buy multicomp-pro PoE Injector Part Number MP008632 Online
Get the multicomp-pro PoE Injector with a single port design, supporting IEEE 802.3af, at, and bt standards up to 90W power output. Compact, easy to install, and internally powered with AC/DC conversion, it offers reliable surge and interference protection, making it ideal for powering wireless access points, IP cameras, and VoIP phones over Ethernet up to 100 meters. Perfect for low port density applications requiring secure, efficient, and remote power delivery without external power supplies.
Buy multicomp-pro MP008632 now and enjoy reliable, high-power PoE injection for seamless network device deployment and remote powering.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP008632?
You can click on the BUY or RFQ button to purchase MP008632 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP008632?
You can download the MP008632 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP008632?
MULTICOMP PRO
