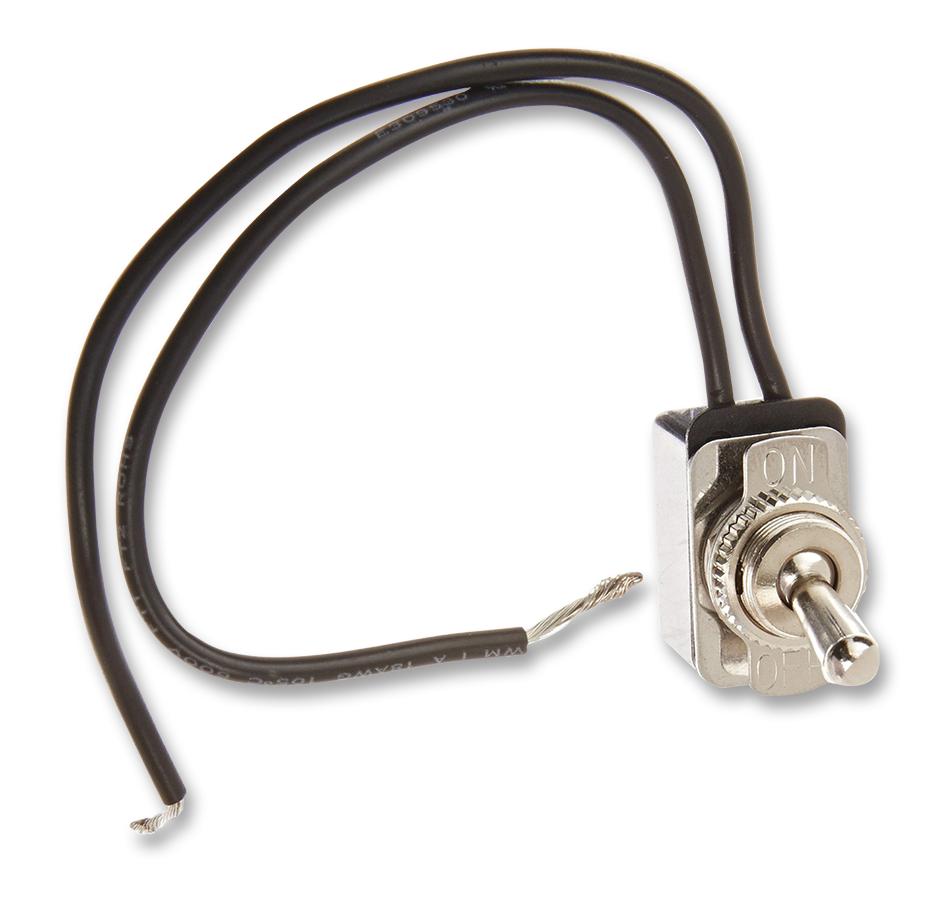

MULTICOMP PRO MP008637 Toggle Switch
The toggle switch with wire is a single pole single throw (SPST) ON-OFF switch rated at 12V and 15A, suitable for various electronic and industrial applications. It features RoHS compliance, a durable mechanical lifespan of 100,000 operations, and an electrical life of at least 30,000 operations. The switch supports wire sizes from 2-18 AWG, with dimensions of approximately 96mm x 9.5mm. Its robust insulation resistance of 100MΩ and voltage rating make it ideal for reliable circuit control in various environments.
MULTICOMP PRO MP008637 Toggle Switch Specifications:
- Contact Resistance: 50mΩ max. (initial)
- Insulation Resistance: 100MΩ min. (at 500V DC)
- Dielectric Strength: 1,000V AC for 1 minute
- Service Life: 100,000 mechanical operations, 30,000 electrical operations
- Voltage Rating: 12V
- Current Rating: 15A
- Function: SPST ON-OFF
- Dimensions: approximately 96mm x 9.5mm
- Wire Compatibility: 2-18 AWG
- RoHS compliant
- Dimensions T: 12.8mm, compatible with 15/32"-32" fittings
- Material: Durable plastic housing with metal components
- Mounting Type: Panel-mount compatible
- Operating Temperature: -20°C to +70°C
- Certifications: RoHS
Buy the Buy Multicomp PRO Toggle Switch Part Number MP008637 Online
Purchase the Multicomp PRO toggle switch MP008637 online today to ensure reliable circuit switching for your projects. This SPST ON-OFF switch rated at 12V and 15A offers high durability, RoHS compliance, and compatibility with 2-18 AWG wires. Its robust design ensures a long service life, supporting up to 100,000 mechanical operations. Ideal for industrial, control panels, and electronic applications, the switch provides safe and consistent performance. Buy now for quality and dependable circuit control in your electronic systems, easy installation, and versatility in various environments.
Buy Multicomp PRO MP008637 toggle switch now and experience reliable circuit control with durable ON-OFF operation for industrial and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP008637?
You can click on the BUY or RFQ button to purchase MP008637 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP008637?
You can download the MP008637 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP008637?
MULTICOMP PRO
