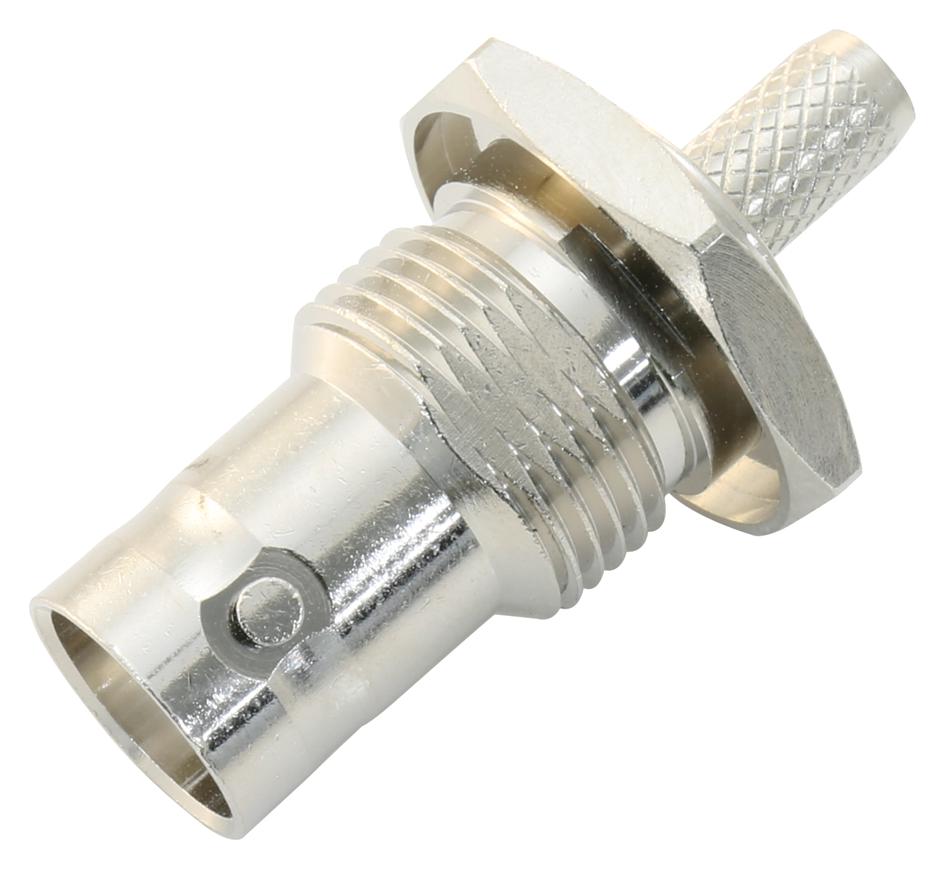

MULTICOMP PRO MP13151TSSRG179U RF coaxial connector
The BNC jack from the Multicomp Pro range provides a reliable, high-performance coaxial connection with a crimp termination and 75-ohm impedance, suitable for RF applications up to 11GHz. Made from durable brass with silver plating, it features a PTFE insulator and a max cable diameter of 254mm, ensuring excellent signal integrity. The straight body style facilitates easy installation in various electronic systems, offering a proof voltage of 2kV and operating within -65°C to +165°C temperature range. Ideal for professional RF connectivity solutions requiring high durability and performance.
MULTICOMP PRO MP13151TSSRG179U RF coaxial connector Specifications:
- Connector Type: BNC Coaxial
- Body Style: Straight Jack
- Coaxial Termination: Crimp
- Impedance: 75Ω
- Contact Material: Brass
- Contact Plating: Silver
- Frequency Max: 11GHz
- Connector Mounting: Cable
- Cable Diameter Max: 254mm
- Coaxial Type: RG179
- Contact Resistance: 1.5mΩ
- DC Current Max: 1A
- Insulator Material: PTFE
- Material: Brass with Silicone Gasket
- Operating Temperature: -65°C to +165°C
- Proof Voltage: 2kV
- Working Voltage: 500V
- VSWR: ≤1.35
Buy the Buy Multicomp BNC Jack Part Number MP13151TSSRG179U Online
Enhance your RF systems with the versatile Multicomp Pro BNC coaxial connector, offering a 75-ohm impedance for clear signal transmission up to 11GHz. Constructed from durable brass with silver plating, it features a PTFE insulator for excellent insulation properties. Suitable for high-frequency applications, this straight jack connector boasts an operating temperature range of -65°C to +165°C and a proof voltage of 2kV. Easy to install with crimp termination, it ensures reliable, long-lasting connections in professional electronic systems.
Order your Multicomp Pro BNC Jack MP13151TSSRG179U today and ensure your RF connections are reliable with high-performance crimp terminals.
