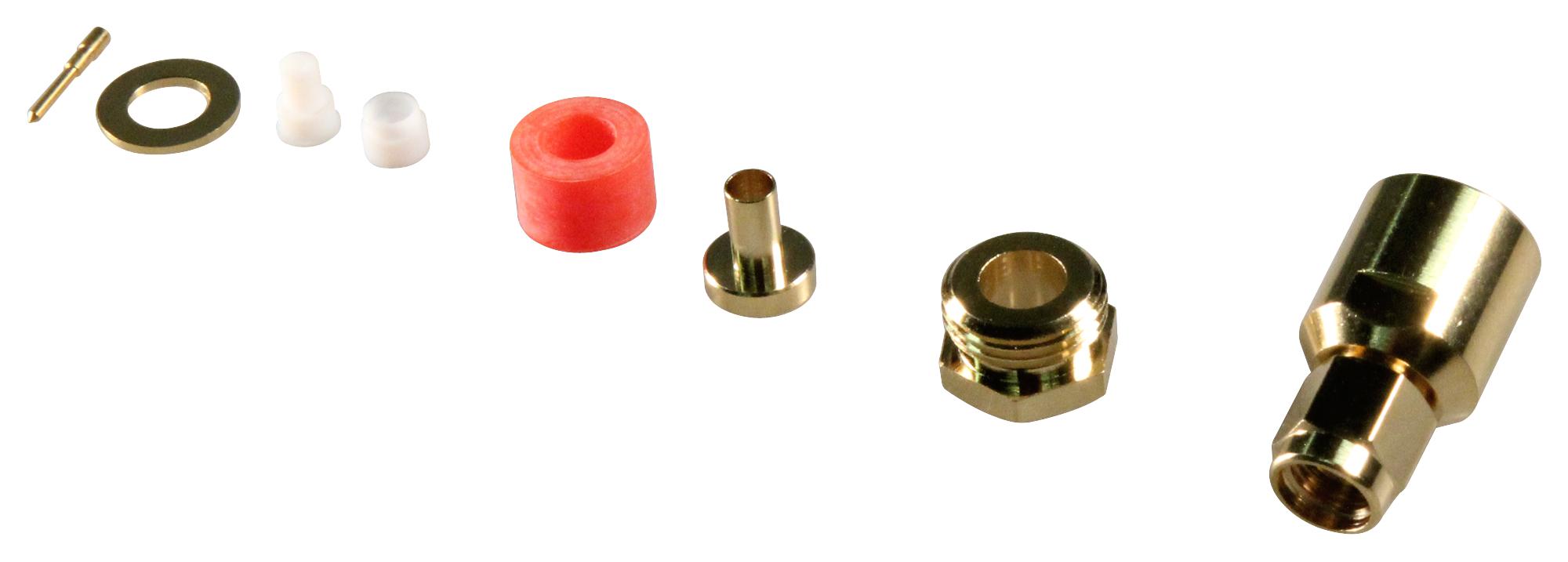

MULTICOMP PRO MP1901F3TGG SMA Coaxial Connector
The SMA Straight Plug Clamp is a coaxial connector designed for RF communications, compatible with RG58U and similar cables. It features a gold-plated brass body for durability and excellent conductivity, with PTFE insulation for reliable signal integrity. The connector includes a solder attachment and a silicone gasket for secure sealing, ensuring minimal signal loss. With a maximum voltage rating of 500 Volts and supporting frequencies up to DC-12.4 GHz, it is ideal for high-frequency applications. The connector's precise machining and RoHS compliance make it suitable for professional RF systems and advanced electronic devices.
MULTICOMP PRO MP1901F3TGG SMA Coaxial Connector Specifications:
- Frequency Range: DC-12.4 GHz
- Voltage Rating: 500 Volts Max.
- Impedance: 50 Ohms
- Materials: Brass (shell, body, braid clamp, nut), PTFE (insulation), Silicone (gasket)
- Finish: Gold-plated brass
- Mechanical Interface: MIL-STD-348A
- Cable Compatibility: RG58U or similar style cable
- Cable Attachment: Outer clamp, inner solder
- Recommended Coupling Torque: 3 to 5 in-lbs
- Operating Temperature Range: -65°C to +165°C
- Connector Dimension: 17/05/16 V1.0
- RoHS Compliant
- Connector Type: SMA Straight Plug
- Connector Size: 3p" minimum, 1/4*-Q6UNS
Buy the Multicomp Series SMA Coaxial Connector: MP1901F3TGG
Purchase the Multicomp SMA Coaxial Connector MP1901F3TGG online today to ensure high-quality signal transfer in your RF projects. This durable connector features gold-plated brass construction for excellent conductivity and corrosion resistance, along with PTFE insulation for reliable performance across a wide temperature range. Suitable for RG58 cables, it supports high-frequency applications up to 12.4 GHz, with precise machining for easy assembly. Enjoy fast shipping, secure online ordering, and the confidence of trusted quality for all your RF connectivity needs.
Buy Multicomp SMA Straight Plug Clamp now and experience unmatched reliability and high-frequency performance for professional RF systems.
