MULTICOMP PRO MP1920TGG RF coaxial adapter

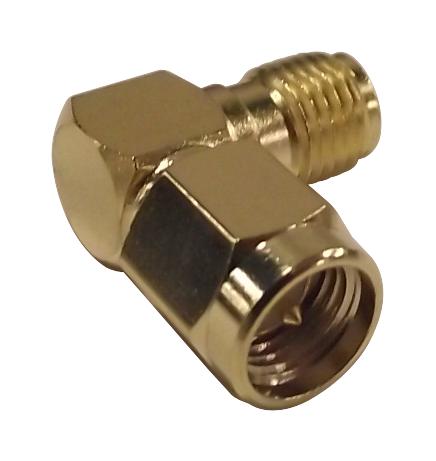

The 19-20-TGG from Multicomp Pro is a right-angled SMA RF connector adapter designed for high-frequency applications up to 12.4 GHz. Made with durable brass bodies and gold-plated contact surfaces, it features a 50-ohm impedance, supporting stable RF signal transmission. The insulative PTFE material ensures low insertion loss and VSWR, while the anti-rotational center contact provides reliable connection. Suitable for industrial, RF communications, and networking environments, this adapter meets MIL-STD-348A standards and offers excellent performance in demanding conditions. Its compact design simplifies installation and maintenance in professional RF setups.
MULTICOMP PRO MP1920TGG RF coaxial adapter Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 12.4 GHz
- VSWR: 1.23 max
- Insertion Loss: 0.3 dB max @ 12.4 GHz
- Bodies: Brass per JIS-C3604
- Center Contact: Brass per JIS-C3604 and Beryllium Copper per ASTM B196 UNS C17300
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Connector interface: MIL-STD-348A
- Material: Brass, Beryllium Copper, PTFE, Silicone
- Finish: Gold plating (minimum 3 μm or 50 micro-inches)
- Size: Specific dimensions in millimeters/inches
- Connector type: SMA, right angle
Buy the Buy multicomp:ro SMA RF Adapter Part Number MP1920TGG Online
Enhance your RF connection setup with the multicomp:ro SMA RF adapter featuring a right-angle design for space-saving installations. This 50-ohm adapter operates seamlessly from DC to 12.4 GHz, ensuring stable and low-loss signal transmission. Constructed with high-quality brass and gold-plated contacts, it guarantees durability, corrosion resistance, and excellent electrical performance. Compliant with MIL-STD-348A standards, it’s perfect for industrial, networking, and RF communication applications. Easily install this compact connector for reliable, high-performance RF systems, backed by a limited warranty and trusted by professionals worldwide.
Buy multicomp:ro MP1920TGG now and experience reliable high-frequency signal transmission with durable brass and gold-plated contacts.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP1920TGG?
You can click on the BUY or RFQ button to purchase MP1920TGG from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP1920TGG?
You can download the MP1920TGG datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP1920TGG?
MULTICOMP PRO
