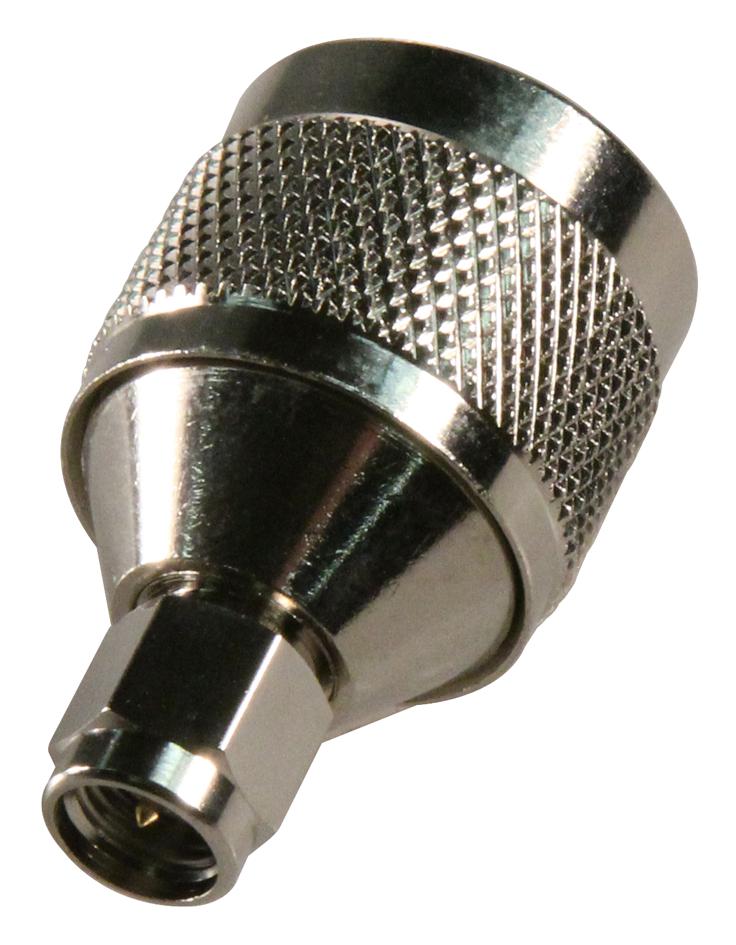

MULTICOMP PRO MP19242TGN SMA to N coaxial adapter
The 19-24-2 TGN is a high-quality, straight coaxial adaptor designed for reliable connections in communications, industrial, aerospace, and military applications. Made of gold-plated brass for optimal conductivity and durability, it features a PTFE insulation conforming to ASTM D1457 and ASTM D1710 standards. Connecting an SMA plug to an N-type connector, it has a body diameter of 15.5mm and includes nickel-plated brass shells and stainless steel washers. This adaptor ensures excellent impedance matching and mechanical stability for demanding RF environments.
MULTICOMP PRO MP19242TGN SMA to N coaxial adapter Specifications:
- Connector Type: Inter Series Coaxial
- Convert From Connector: SMA Coaxial Plug
- Convert From Gender: Plug
- Convert To Connector: N Coaxial Plug
- Convert To Gender: Plug
- Body Diameter: 15.5mm
- Connector Type A: SMA Plug
- Connector Type B: N Plug
- External Length / Height: 28.2mm
- Impedance: 50Ω
- Shell Material: Brass Nickel 100, Min.
- Centre Contact: Gold-plated Brass
- Insulation Material: PTFE ASTM D1457, ASTM D1710
- Washer: Stainless Steel, Brass Nickel 100, Min.
- Dimensions: Diameter 15.5mm, Length 28.2mm
- Body Material: Brass
- Gasket: Silicone
- Material Finishes: Nickel, Gold
- Applicable Standards: MIL-STD-348A
Buy the Multicomp Series SMA to N Coaxial Adapter: MP19242TGN
Purchase the Multicomp Series SMA to N coaxial adaptor MP19242TGN online today for dependable RF connections. Crafted with durable gold-plated brass contacts and a nickel-plated body, this high-quality adapter offers excellent electrical performance and mechanical stability. It features PTFE insulation for reliable dielectric properties and conforms to industry standards, ensuring it performs well in defense, aerospace, communications, and industrial environments. With a straightforward design, it ensures easy installation, long-term durability, and optimal impedance matching for demanding RF systems.
Get Multicomp Series SMA to N Coaxial Adapter MP19242TGN today—built for precision and long-lasting durability in RF applications.
