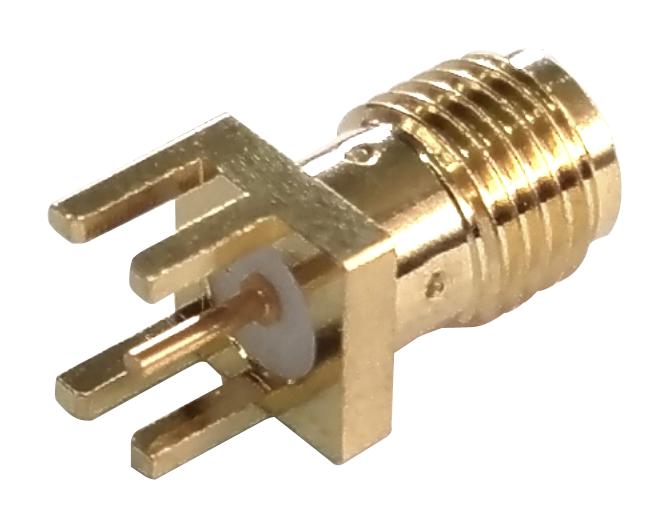

MULTICOMP-PRO MP19701TGG SMA End Launch Connector
The Multicomp Pro 19-70-1-TGG is an SMA end launch jack connector optimized for printed circuit board applications with a PCB thickness of 0.068 inches. This semi-precision connector offers reliable electrical performance from DC to 18 GHz, making it suitable for RF communications, industrial automation, and networking systems. It features a gold-plated brass body and center contact for corrosion resistance, PTFE insulation for excellent dielectric properties, and complies with MIL-STD-348A standards. Designed for durability and high-frequency performance, it ensures excellent signal integrity in demanding environments.
MULTICOMP-PRO MP19701TGG SMA End Launch Connector Specifications:
- Connector Body Style: Jack Receptacle
- Coaxial Termination: End Launch
- Connector Mounting: PCB Mount
- Frequency Range: DC - 18GHz
- Impedance: 50Ω
- Voltage Rating: 500V Max
- VSWR: 1.23 Max
- Materials: Brass body, Beryllium Copper center contact, PTFE insulation
- Interface: MIL-STD-348A
- Operating Temperature: -65°C to +165°C
- Dimensions: 49.70 mm length, PCB edge design, suitable for 0.068-inch PCB thickness
- Insulation: PTFE insulator, compliant with ASTM D1457 and D1710
- Finish: Gold-plated surfaces for corrosion resistance
- Certifications: RoHS compliant
- Environmental: Suitable for high reliability RF and microwave applications
Buy the Multicomp Series SMA End Launch Jack Connectors: MP19701TGG
Purchase the Multicomp Series SMA End Launch Jack Connector MP19701TGG online today and experience high-frequency stability from DC to 18 GHz. Designed for PCB mount applications, it features a durable gold-plated brass body and center contact, PTFE insulation for excellent dielectric properties, and meets MIL-STD-348A standards for high reliability. Perfect for RF communication, industrial automation, and networking systems, this connector ensures signal integrity with a compact and robust design. Buy now for quick delivery and dependable performance.
Get Multicomp Series MP19701TGG today—built for high-frequency performance and long-lasting reliability.
