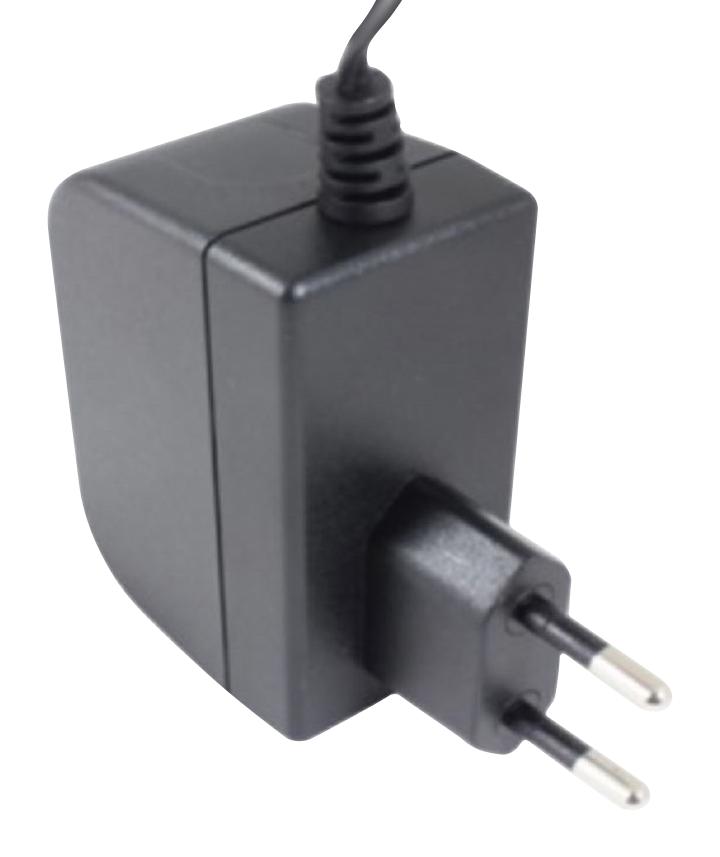

MULTICOMP PRO MP005038 European Power Adapter
The 5W EU Wall Plug Adapter is a compact, energy-efficient power supply providing 5V DC at 1A output, suitable for various low-power electronic devices. It features a European fixed AC head, Level VI efficiency, and CE approval, ensuring reliable performance and compliance with safety standards. Designed with a 2.1mm x 5.5mm x 12mm centre positive right angle output connector, it handles input voltages from 90V to 264V AC, operating efficiently across variable loads. Its robust construction includes overload, short-circuit, and over-voltage protections, making it ideal for use in general power applications, with an operating temperature of 0°C to +40°C.
MULTICOMP PRO MP005038 European Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 0.2A Max
- Output Voltage: +5V
- Output Current Range: 1A
- Output Min Current: 0.05A
- Output Connection: 2.1mm x 5.5mm x 12mm Centre Positive — Right Angle
- Total Output Regulation: +5%
- Line and Load Regulation: 45%
- Ripple & Noise: 300mVp-p
- Efficiency: 73.77% Min
- Over Voltage Protection: 6.5V DC Max
- Over Current Protection: 1.1A to 1.8A max with auto-recovery
- Short-Circuit Protection: Yes, damage-resistant during short
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +60°C
- Operating Humidity: 20% to 85%
- Storage Humidity: 5% to 95%
- Safety Standard: Meets TUV-GS (EN60950-1)
- EMI Standard: Meets CE (EN55032)
- Life Expectancy: 50,000 hours MTBF
- Size: 67mm (L) x 26mm (W) x 72.2mm (H)
- Weight: 80g ±15%
- Regulator Type: Switched Mode Power Supply
- Hi-Pot: 3000V AC 10mA 1min
- Leakage Current: 0.25mA max
Buy the Buy Multicomp EU Wall Plug Adapter Part Number MP005038 Online
Purchase the Multicomp EU Wall Plug Adapter online today and enjoy fast, secure delivery. Designed for versatility and safety, it provides dependable 5V DC power at 1A for a variety of devices. Its energy-efficient design meets Level VI standards and has CE approval, ensuring compliance with international safety protocols. The compact size and built-in protections make it ideal for various applications, from electronics to small appliances. Get your reliable power solution now and keep your devices powered efficiently and safely.
Buy Multicomp MP005038 now and experience reliable power delivery with compact design and superior safety features for your low-power electronic devices.
