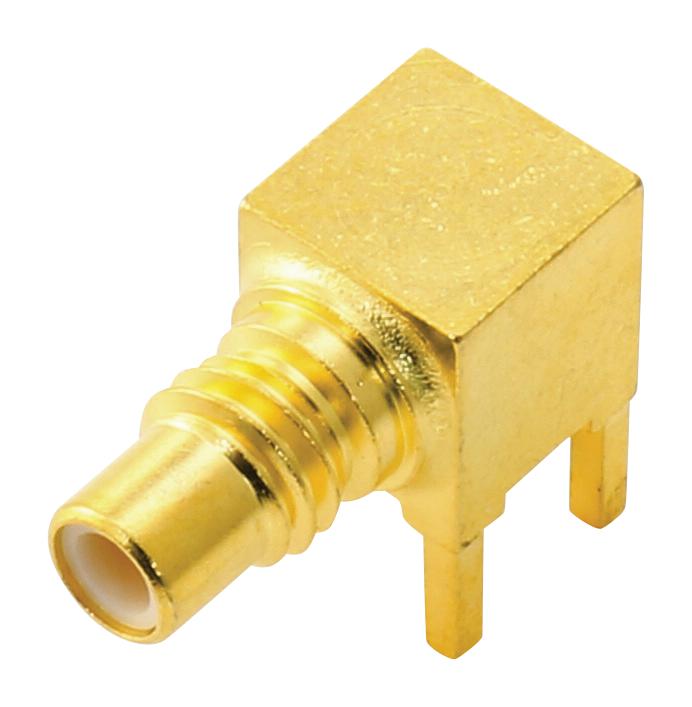

MULTICOMP PRO MP2610TGG Right-Angle Coaxial Jack
The 26-10-TGG is a high-performance right-angle coaxial jack designed for PCB mounting, featuring a durable gold-plated brass body and PTFE insulation conforming to ASTM standards. Capable of operating up to 10 GHz, it offers excellent impedance matching of 50 ohms, low contact resistance, and high insulation resistance. Its construction includes a brass center contact and body, ensuring reliability in demanding environments. Suitable for defense, aerospace, military, communication, industrial, and networking applications, this connector supports wide temperature ranges from -65°C to +165°C and features a through-hole, right-angle design for ease of installation.
MULTICOMP PRO MP2610TGG Right-Angle Coaxial Jack Specifications:
- Connector Body Style: Right Angle Jack Receptacle
- Mounting Type: PCB Mount, Through Hole
- Frequency Range: DC to 10 GHz
- Impedance: 50 ohms
- Voltage Rating: 335V Max.
- Contact Resistance: 6 milliohms
- Insulation Resistance: 1000 megaohms
- Material: Brass with Gold Plating (minimum 3 μ inch)
- Insulation Material: PTFE per ASTM D1457 and ASTM D1710
- Operating Temperature Range: -65°C to +165°C
- RoHS Compliant
- Connector Center Contact Finish: Gold (minimum 30 μ inch)
Buy the Buy multicomp PCB Mount Coaxial Jack Part Number MP2610TGG Online
Discover the high-quality multicomp PCB mount coaxial jack with gold-plated contacts and PTFE insulation designed for high-frequency applications up to 10 GHz. This connector features a durable brass construction, ensuring reliable performance in demanding environments such as aerospace, defense, military, and industrial sectors. Its through-hole, right-angle design simplifies installation on printed circuit boards. Rated for temperatures from -65°C to +165°C, it provides excellent impedance matching and low contact resistance, making it an ideal choice for communication and networking equipment. Purchase online for quick delivery and superior performance.
Get multicomp PCB Mount Coaxial Jack MP2610TGG today—built for high-frequency communication, durability, and reliable PCB connections.
