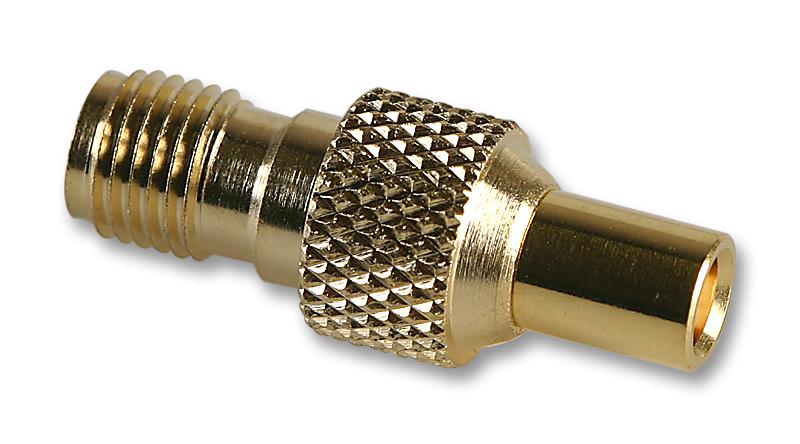

MULTICOMP-PRO MP2725TGG RF Coaxial Adapter
The 27-25 TGG is a RF/Coaxial Adapter featuring a gold-plated beryllium copper contact, a gold-plated brass body, and PTFE insulation conforming to ASTM D1457 and ASTM D1710 standards. It connects an SMA jack to an MCX jack and supports an impedance of 50Ω. The adapter offers a contact resistance of 1 milliohm, an insulation resistance of 1000 megaohms, and a maximum frequency of 6 GHz. Manufactured by Multicomp Pro, it is designed for reliable coaxial connection and high-performance signal integrity.
MULTICOMP-PRO MP2725TGG RF Coaxial Adapter Specifications:
- Connector Type A: SMA Coaxial
- Connector Type B: MCX Coaxial
- Convert From Connector: SMA Jack
- Convert To Connector: MCX Jack
- Contact Resistance: 1 milliohm
- Impedance: 50Ω
- Insulation Resistance: 1000 megaohms
- Maximum Operating Frequency: 6 GHz
- Working Voltage: 335V
- Body Material: Brass with gold plating
- Centre Contact Material: Beryllium Copper with gold plating
- Insulation Material: PTFE
- Connector interface compliance: MIL-STD-348A and CECC 22220
- Material and Finish: Brass, gold-plated;
Buy the Buy Multicomp RF Coaxial Adapter Part Number MP2725TGG Online
Experience high-quality RF and coaxial connections with the Multicomp RF Coaxial Adapter. Connecting SMA to MCX interfaces, it features gold-plated contacts, PTFE insulation, and supports frequencies up to 6 GHz. Ideal for professional electronic and communication equipment, this reliable adapter ensures low contact resistance, excellent insulation, and durability with a maximum working voltage of 335V. Purchase this versatile connector online to improve signal integrity and maintain high performance in your RF setups and electronic projects.
Get Multicomp RF Coaxial Adapter MP2725TGG today—designed for precise, stable performance in high-frequency applications.
