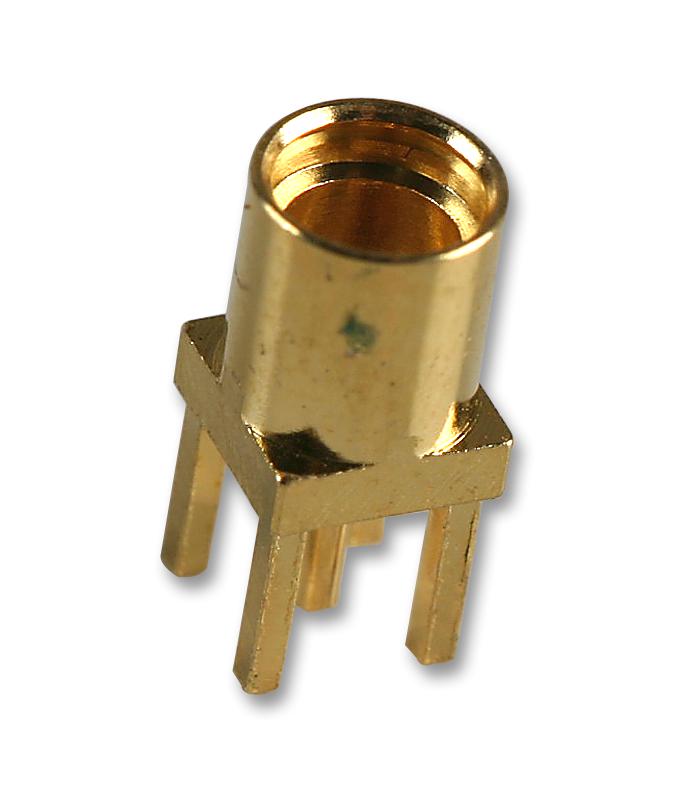

MULTICOMP PRO MP3706TGG MMCX connector
The MMCX straight bulkhead jack provides a reliable connection with gold-plated beryllium copper contacts and a brass body, ensuring durability and consistent performance. Insulated with high-quality PTFE according to ASTM D1457 and ASTM D1710 standards, it supports smooth electrical conduction. Designed for PCB mounting with through-hole solder termination, it offers excellent RF performance up to 6GHz, with a maximum voltage rating of 250V. Suitable for aerospace, military, defense, communications, and industrial applications, this connector guarantees robustness and precision in demanding environments.
MULTICOMP PRO MP3706TGG MMCX connector Specifications:
- Connector Body Style: Straight Jack Receptacle
- Connector Mounting: Through Hole PCB Mount
- RoHS Compliant
- Frequency Range: DC to 6GHz
- Nominal Impedance: 50 Ohms
- Voltage Rating: 250V Max.
- VSWR: 1.22 Max.
- Bodies Material: Brass per JIS-C3604 with gold plating
- Centre Contact Material: Copper with Beryllium Gold plating
- Insulation Material: PTFE per ASTM D1457 and ASTM D1710
- Operating Temperature: -55°C to +155°C
- Interface Standard: BS EN 122340
- Contact Material: Beryllium Copper per ASTM B196 UNS C17300
- Mounting Hole Diameter: 3.50 mm
- Dimensions: Millimetres (Inches)
Buy the Buy Multicomp MMCX Straight PCB Mount Part Number MP3706TGG Online
Secure your high-frequency connectivity with the MMCX straight PCB mount jack featuring gold-plated contacts, PTFE insulation, and 6GHz RF performance. Designed for reliable use in aerospace, military, defense, communications, and industrial systems, this connector ensures durability and precision. Easy to install with through-hole PCB mounting and solder termination, it handles voltages up to 250V and maintains low VSWR for optimal signal integrity. Order now to enhance your RF design projects with a trusted, high-quality connector.
Buy Multicomp MMCX MP3706TGG now and experience unmatched reliability and RF performance up to 6GHz for industrial, aerospace, and communication applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP3706TGG?
You can click on the BUY or RFQ button to purchase MP3706TGG from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP3706TGG?
You can download the MP3706TGG datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP3706TGG?
MULTICOMP PRO
