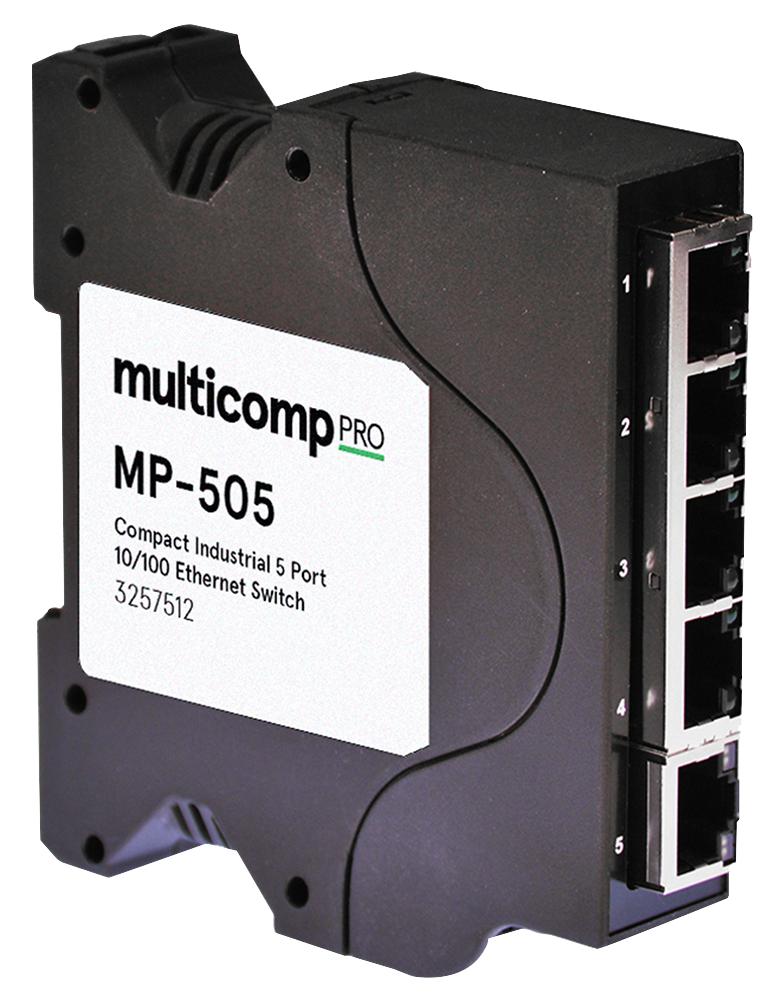

MULTICOMP PRO MP505 Industrial Ethernet Switch
This compact unmanaged Ethernet switch features 5 ports supporting 10/100Mbps Fast Ethernet, ideal for industrial applications. It has dual power inputs ranging from +5V to +30V DC with reverse polarity protection, and magnetic isolation of 1500VRMS for enhanced safety. Its rugged IP-20 rated polyamide housing ensures durability in harsh environments. The switch supports plug-and-play installation without software, provides broadcast storm protection, and is DIN mountable for easy integration into industrial systems. Operating temperature ranges from -40°C to +80°C, making it suitable for diverse industrial settings.
MULTICOMP PRO MP505 Industrial Ethernet Switch Specifications:
- Power Consumption: 1.35 Watts Max, 260mA @ +5V DC / 45mA @ +30V DC
- Power Supply Input: Unregulated +5V to +30V DC, reverse polarity protected
- Isolation: 1500VRMS Magnetic isolation from Ethernet ports
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -40°F to +176°F
- Ambient Humidity: 5% to 95% non-condensing
- Ethernet Ports: 5 x RJ45, 10/100Mhz, auto-sensing, crossover auto sensing (Auto MDIX)
- Protection: 1,500V magnetic isolation between ports
- Housing: IP-20 rated polyamide case
- Wire Compatibility: #26 - #16 AWG, 0.14mm-1.3mm diameter
- Dimensions: Standard DIN rail mounting, precise mm dimensions not specified
Buy the Buy Multicomp Pro Ethernet Switch Part Number MP505 Online
Get your industrial Ethernet switch online today. The 5-port MP505 from Multicomp Pro offers reliable, plug-and-play connectivity with rugged IP-20 housing, dual power inputs, and magnetic isolation. Designed for industrial environments, it supports DIN mounting, auto-sensing Ethernet ports, and operates from -40°C to +80°C. Perfect for factory automation, control systems, and harsh settings, this switch ensures seamless network expansion and robust performance. Buy now and ensure your network's resilience today.
Order your Multicomp Pro Series MP505 industrial Ethernet switch today and enhance your network reliability in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP505?
You can click on the BUY or RFQ button to purchase MP505 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP505?
You can download the MP505 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP505?
MULTICOMP PRO
