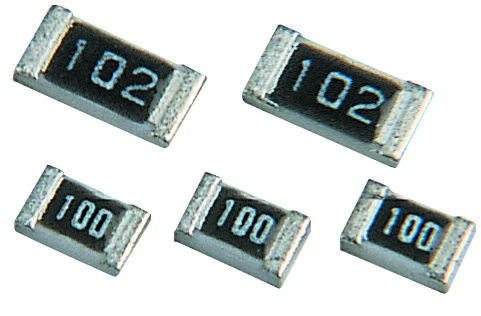

MULTICOMP-PRO MCHP06W2F6801T5E High Power Thick Film Resistor
The Multicomp Pro HP06 series are surface-mount, high-power thick film resistors designed for reliable performance in various electronic applications. With resistance values from 1 ohm to 10 MΩ, these resistors support both wave and reflow soldering techniques. They conform to the EIA 1206 standard size, with tolerance options of ±1% or ±5% for precise circuit tuning. Each resistor is rated at 500mW power, with a maximum voltage of 200V, and features temperature coefficients of ±200ppm/°C or ±100ppm/°C depending on resistance. These resistors are ideal for high power and high durability requirements in industrial and consumer electronics.
MULTICOMP-PRO MCHP06W2F6801T5E High Power Thick Film Resistor Specifications:
- Size: 1206 standard surface-mount package
- Resistance Range: 1Ω to 10MΩ
- Power Rating: 0.5W (500mW)
- Maximum Working Voltage: 200V
- Tolerance: ±1% or ±5%
- Temperature Coefficient: ±200ppm/°C (1Ω-10Ω), ±100ppm/°C (11Ω-10MΩ)
- Soldering: Suitable for wave and reflow soldering
- RoHS Compliant
- Operating Temperature Range: -55°C to +155°C
- Dimensions: L = 3.14mm, W = 1.55mm, H = 0.55mm
- Material: High purity alumina substrate with Sn finish termination
- Application: High power applications, industrial equipment, consumer electronics
- TCR Performance: 110 to 10Ω < +200PPM/°C, 11Ω to 10MΩ < +100PPM/°C
Buy the Buy multicomp High Power Thick Film Resistor Part Number MCHP06W2F6801T5E Online
Purchase the multicomp high power thick film resistor MCHP06W2F6801T5E online for reliable, high-performance circuit protection and precision control. These resistors support wave and reflow soldering, making assembly straightforward and efficient. With resistance options from 1Ω to 10MΩ, and tolerances of ±1% or ±5%, they provide excellent accuracy for industrial, consumer, and high-power applications. Rated at 0.5W with a voltage maximum of 200V, they ensure durability and stable operation in a wide temperature range. Buy now for long-lasting quality and consistent performance in your electronic projects.
Get multicomp high power thick film resistor MCHP06W2F6801T5E today—built for durability and precise performance in demanding applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCHP06W2F6801T5E?
You can click on the BUY or RFQ button to purchase MCHP06W2F6801T5E from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHP06W2F6801T5E?
You can download the MCHP06W2F6801T5E datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCHP06W2F6801T5E?
MULTICOMP-PRO
