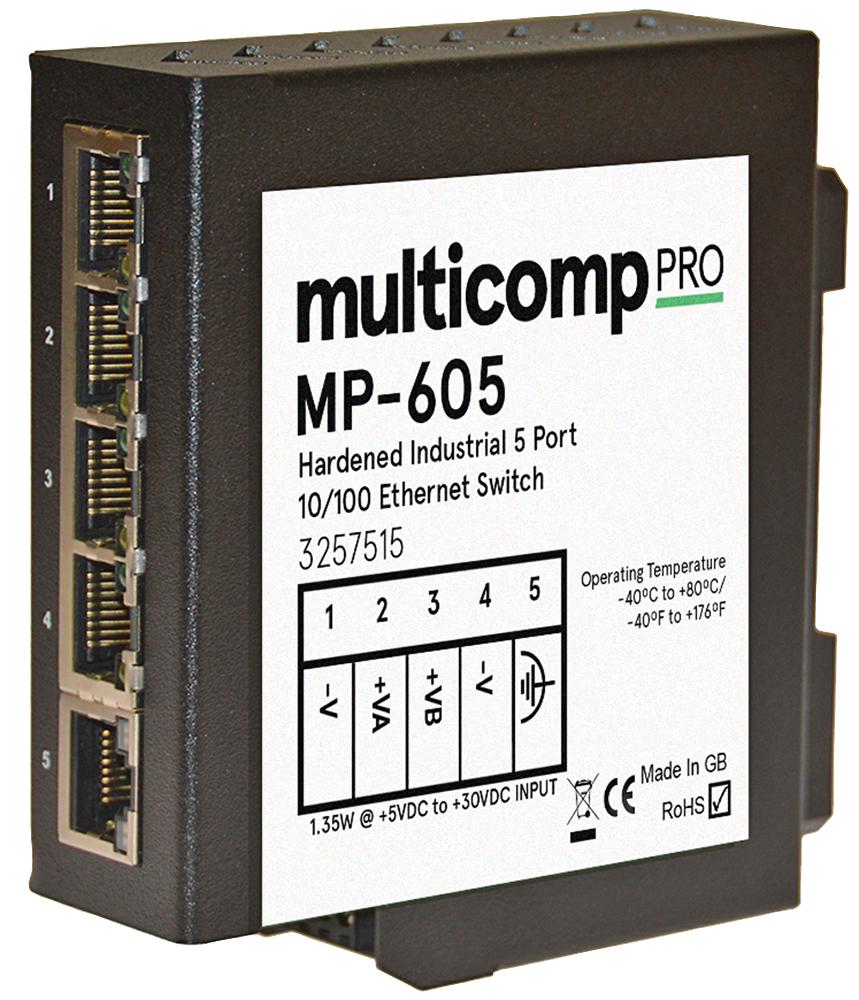

MULTICOMP PRO MP605 Industrial Ethernet Switch
This 5-port industrial Ethernet switch is designed for rugged environments, featuring 10/100Mbps ports, IP-20 metal housing, and DIN rail mounting. It provides reliable networking with magnetic isolation up to 1500V, dual power inputs (5V to 30V DC), and no software configuration required. The compact, heat-resistant design operates efficiently between -40°C to +80°C, with protections against reverse polarity and high humidity. Ideal for industrial automation and control systems requiring durable, plug-and-play Ethernet connectivity.
MULTICOMP PRO MP605 Industrial Ethernet Switch Specifications:
- Power Consumption: 1.35 Watts Max: 260m Amps @ +5V DC/45m Amps @ +30V DC
- Power Supply Input: Unregulated +5V to +30V DC, reverse polarity protected
- Isolation: 1500V magnetic isolation from Ethernet ports
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -40°F to +176°F
- Ambient Humidity: 5 to 95% (non-condensing)
- Ethernet Ports: 5 x RJ45, 10/100Mbps, auto-sensing, crossover auto sensing (Auto MDIX)
- Protection: 1500V magnetic isolation between ports
- Housing: IP-20 metal case
- Screw Terminals: 3.5mm pitch, #22 - #14, wire gauge #26 - #16 AWG
- Dimensions: Millimetres, detailed dimensions included
- Part Number: MP-605
Buy the Buy Multicomp Industrial Ethernet Switch Part Number MP-605 Online
Order the robust Multicomp industrial Ethernet switch MP-605 online for dependable networking in harsh environments. Featuring 5 ports, IP-20 metal housing, wide temperature range, and dual power inputs, this DIN rail mountable device offers plug-and-play installation without software setup. Ideal for automation, control systems, and industrial networking, its magnetic isolation and high humidity resistance ensure safe and stable operation. Enhance your industrial network with this durable Ethernet switch designed for reliability and efficiency, available now for quick online purchasing.
Get Multicomp industrial Ethernet switch MP-605 today—designed for rugged industrial environments with reliable Ethernet connectivity and DIN rail mounting.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP605?
You can click on the BUY or RFQ button to purchase MP605 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP605?
You can download the MP605 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP605?
MULTICOMP PRO
