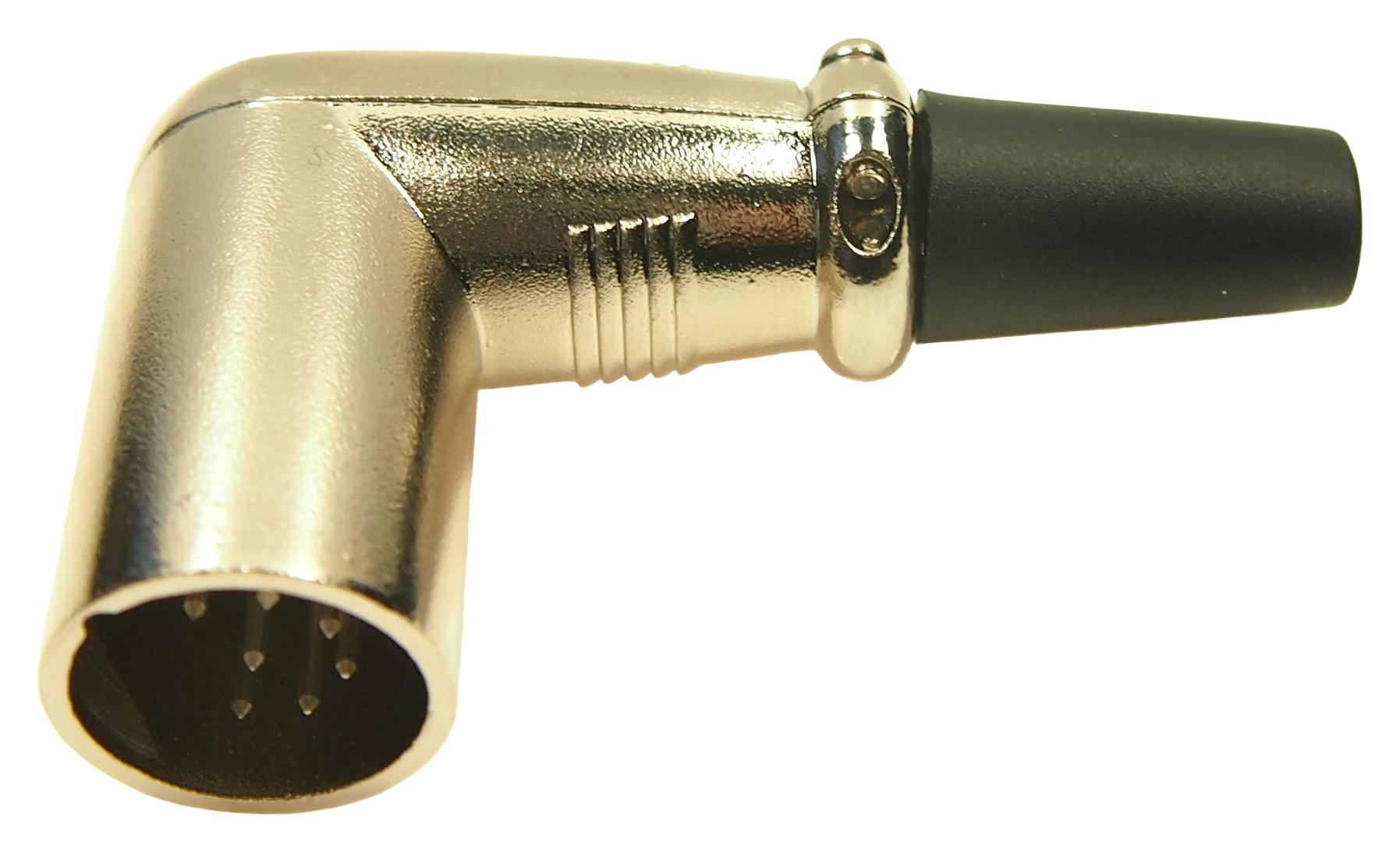

MULTICOMP PRO MP60967N 7-Pin Male XLR Connector
This high-quality 7-pin male XLR connector features a durable right-angle metal body with silver-plated brass contacts, ensuring excellent conductivity and corrosion resistance. It meets RoHS and Piz. compliance standards, making it suitable for professional audio and industrial applications. The connector offers a contact resistance of ≤6mΩ, insulation resistance of 25,000 MΩ, and withstands voltage of 1400V. Designed for durability, it supports over 22,000 mating cycles, with robust zinc alloy construction and nickel plating for longevity and reliable performance in demanding environments.
MULTICOMP PRO MP60967N 7-Pin Male XLR Connector Specifications:
- Contact Resistance: ≤6mΩ
- Insulation Resistance: 25,000 MΩ
- Withstand Voltage: 1400V
- Mating/Unmating Cycles: 22000
- Material - Body (Front): Zinc Alloy, Nickel Plate
- Material - Body (Rear): Zinc Alloy, Nickel Plate
- Contacts: Brass, Silver Plate
- Material - Earth Contact: Steel, Tin Plate
- Material - Grommet: PVC, Black
- Material - Top Screw: Steel, Nickel Plate
- Material - Screw: Steel, Nickel Plate
- Material - Insert: PBT, Black
- Material - Button: Zinc Alloy, Nickel Plate
- Material - Spring: Spring Steel, Black
- Material - Casing: Brass, Nickel Plate
Buy the Multicomp PRO MP60967N – Reliable 7-Pin Male XLR Connector for Industrial Applications
Purchase your 7-pin male XLR connector from Multicomp PRO today and experience exceptional durability and performance for professional audio, broadcasting, and industrial applications. Featuring a right-angle metal body with silver-plated contacts, this connector ensures optimal conductivity and corrosion resistance. With a contact resistance of ≤6mΩ, insulation resistance of 25,000 MΩ, and the ability to withstand voltage up to 1400V, it is designed for long-lasting, reliable operation with over 22,000 mating cycles, making it the ideal choice for demanding environments.
Order your Multicomp PRO MP60967N 7-pin male XLR connector today and enhance your audio and industrial projects with dependable quality and robust design.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP60967N?
You can click on the BUY or RFQ button to purchase MP60967N from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP60967N?
You can download the MP60967N datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP60967N?
MULTICOMP PRO
