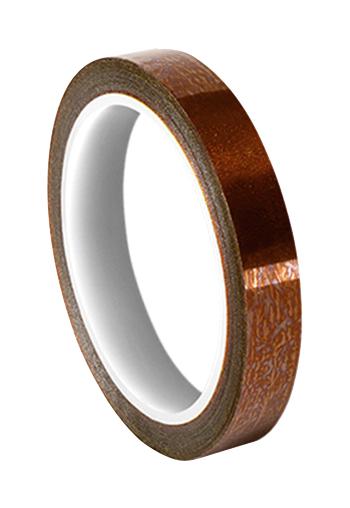

MULTICOMP PRO MP700362 Polyimide Tape
This high-temperature masking tape consists of a polyimide film with silicone adhesive, ideal for protecting gold fingers on printed circuit boards during wave soldering or solder dipping. It is suitable for electrical insulation on transformers, motors, coils, and PCB manufacturing. The tape is thin and conformable, allowing it to mask uneven surfaces. It can operate reliably at temperatures up to 500°F and provides excellent electrical insulation. The tape removes cleanly without leaving adhesive residue after exposure to heat or chemicals. The polyimide film thickness is 1.0 mil, with a total thickness of 2.5 mils.
MULTICOMP PRO MP700362 Polyimide Tape Specifications:
- Total Thickness 2.5 mils
- Adhesive Thickness 1.5 mils
- Film Thickness 1 mil
- Adhesive Colour Amber
- Adhesion to Steel 22 oz/inch
- Break Strength 30 lbs/in
- Dielectric Strength 6800 volts
- Elongation 60%
- Operating Temperature Range -40°F to 500°F
- Flammability: UL 94V-0
- Material: Polyimide film with silicone adhesive
- Dimensions: Width varies with part number, length 36 yards
- Electrical Insulation: Excellent dielectric properties
Buy the Buy Multicomp Polyimide Silicone Tape Part Number MP700362 Online
Purchase the high-temperature polyimide tape designed for PCB masking, electrical insulation, and component protection during soldering processes. Made with a durable polyimide film and silicone adhesive, it withstands temperatures up to 500°F, conforms well to uneven surfaces, and removes cleanly without residue. Ideal for protecting gold fingers, transformers, motors, coils, and PCB manufacturing. Available in various widths with a total thickness of 2.5 mils, ensuring reliable insulation and adherence for demanding electronics manufacturing needs.
Get Multicomp MP700362 today—built for high-temperature masking and electrical insulation efficiency.
