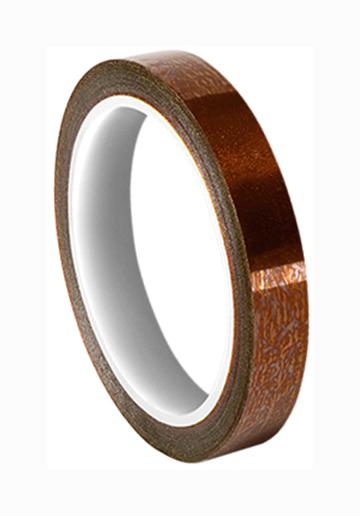

MULTICOMP PRO MP700381 Thermal Transfer Tape
Thermally conductive adhesive transfer tape designed to facilitate efficient heat transfer between heat-generating components and heat sinks or cooling devices, such as fans, heat spreaders, or heat pipes. It offers high mechanical strength, improved surface wet-out for rough or low-surface-energy substrates, excellent shock resistance, and is halogen-free. Suitable for thin bonding applications with good thermal conductivity. Available in wider and longer roll formats.
MULTICOMP PRO MP700381 Thermal Transfer Tape Specifications:
- Tape Type: Filled Acrylic Polymer
- Tape Thickness: 0.125 mm (5 mils) / 0.25 mm (10 mils)
- Filler Type: Ceramic
- Liner Type: Dual liner using silicone-treated polyester
- Liner Thickness: 37.5 um to 50 um (1.5 mils to 2 mils)
- Color: White
- Thermal Impedance: 3.2°C·cm²/W (5 Mil) / 5.8°C·cm²/W (10 Mil)
- Thermal Conductivity: 0.6 W/m·K
- Specific Gravity: 1.07 g/cc
- Surface Resistivity: 1.6 x 10^9 Q-cm
- Volume Resistivity: 5.2 x 10^10 Q-cm (5 Mil) / 3.9 x 10^10 Q-cm (10 Mil)
- Dielectric Strength: 26 kV/mm (5 Mil) / 7 kV/mm (10 Mil)
- Dielectric Constant: 93.5 (5 Mil) / 3.2 (10 Mil)
- Maximum Width: 22 inches
- Maximum Length: 108 yards
- Shelf Life: 24 months when stored properly at 22°C and 50% relative humidity
Buy the Buy Multicomp Thermally Conductive Transfer Tape Part Number MP700381 Online
Order Multicomp thermally conductive transfer tape MP700381 online today and enhance your thermal management solutions. This high-quality adhesive tape efficiently transfers heat between electronic components and heat sinks, ensuring optimal performance. Its high mechanical strength, excellent shock resistance, and halogen-free composition make it ideal for thin bonding applications across various industries. Available in wide and long rolls, it’s perfect for customizing your thermal solutions. Purchase now to improve device reliability, reduce overheating, and streamline your manufacturing processes with ease.
Buy Multicomp MP700381 now and experience unmatched reliability and excellent thermal management for electronic components.
