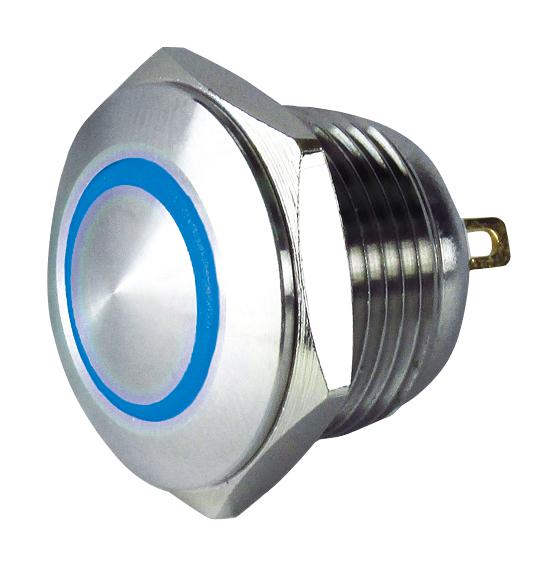

MULTICOMP PRO MC010881 Illuminated Vandal Resistant Switch
The illuminated vandal resistant switch offers robust, corrosion-resistant stainless steel construction with LED illumination in green, red, or blue. Designed for panel mounting with a 16mm hole, it features a 1NO contact operation, solder terminals, and an IP67 protection rating for outdoor or harsh environments. Available in various top types including flush, prominent, and domed, this switch withstands mechanical and electrical life cycles, vibration, and shock resistance. It operates within -30°C to +70°C storage and 1-25°C to +50°C working temperatures, making it ideal for industrial controls with high durability needs.
MULTICOMP PRO MC010881 Illuminated Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min, between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1-25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 500 m/S², Operating limits: 200 m/S²
- Mechanical Life: Momentary: 1,000,000; Maintained: 250,000
- Electrical Life: 50,000
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Multicomp Vandal Resistant Switch – Reliable Illuminated Control for Industrial Applications
Purchase your multicomp vandal resistant illuminated switch online today for high durability in harsh environments. With stainless steel construction, IP67 protection, and multi-color LED options, this switch ensures reliable performance for industrial controls. Its robust design withstands mechanical shocks, vibrations, and temperature extremes, providing long-lasting operation with a high number of cycles. Ideal for outdoor, factory, or outdoor control panels, this switch combines durability with excellent illumination for improved visibility in demanding applications. Order now for fast delivery and dependable performance.
Order your multicomp vandal resistant switch today and ensure your industrial controls are protected with reliable, illuminated operation.
