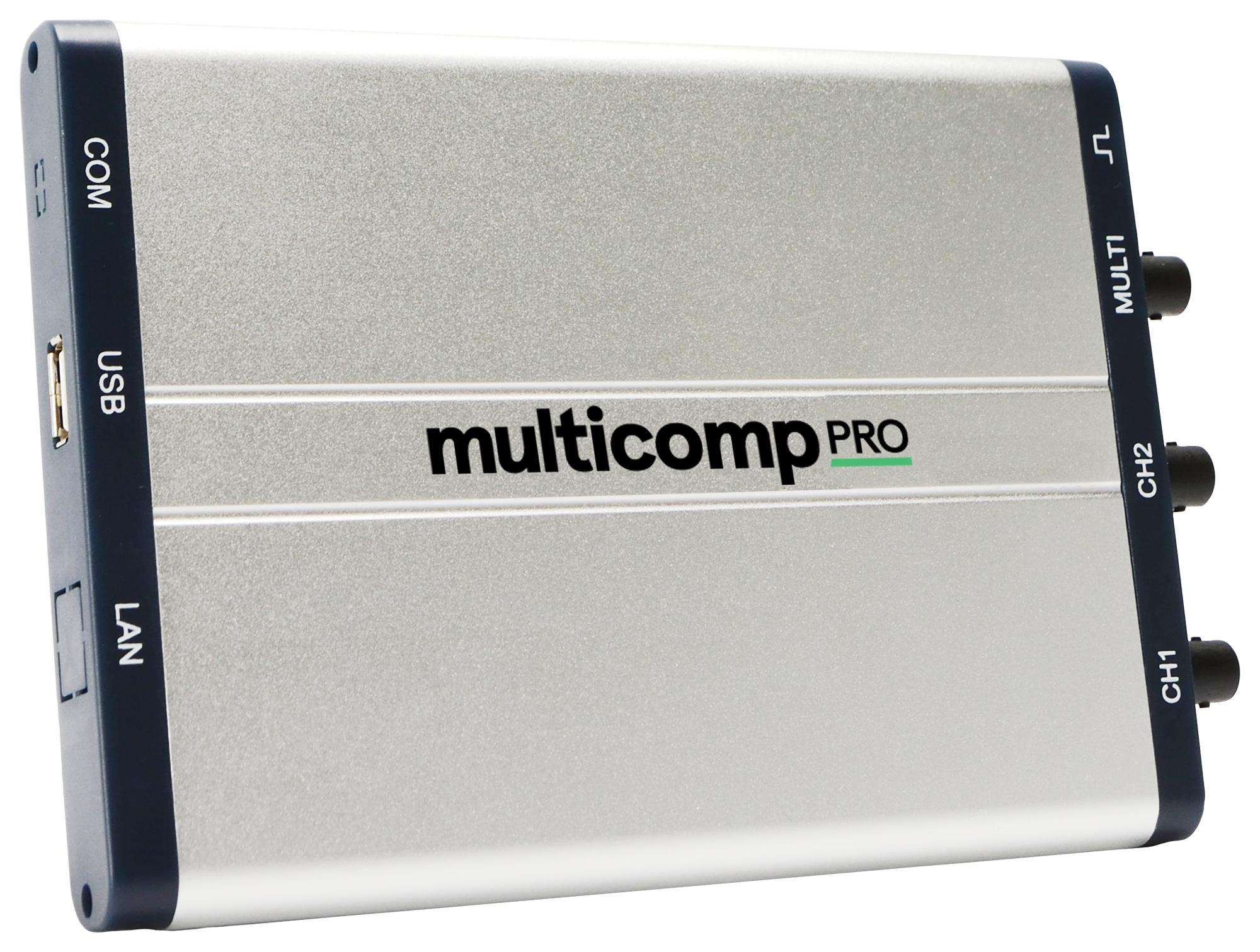

MULTICOMP PRO MP720016US Dual Channel PC Oscilloscope
The MP720016 is a compact, dual-channel 25 MHz PC-based oscilloscope with 8-bit vertical resolution, a 5,000 record length, and multiple trigger options including edge, pulse, video, slope, and alternate. Features include user-friendly interface supporting FFT and X-Y modes, comprehensive measurement functions, and waveform math capabilities. It supports USB 2.0 data transfer, synchronized I/O, pass/fail testing, and external trigger input. Its portable, ultra-thin design is ideal for on-the-go testing, offering adjustable vertical sensitivity from 5 mV/div to 5 V/div and horizontal scale from 5 ns/div to 100 s/div, suitable for various electronic diagnostics and research applications.
MULTICOMP PRO MP720016US Dual Channel PC Oscilloscope Specifications:
- Bandwidth: 25MHz
- Channels: 2 analogue
- Sample Rate: 100MSa/s
- Record Length: 5K
- Vertical Resolution: 8 bits
- Vertical Sensitivity: 5 mV/div to 5 V/div
- Trigger Types: Edge, Pulse, Video, Slope, Alternate
- Trigger Mode: Auto, Normal, Single
- Horizontal Scale: 5ns/div to 100s/div
- Input Impedance: 1MΩ + 2%
- Max Input Voltage: 40V (PK-PK)
- Input Coupling: DC, AC, GND
- Power Supply: 5.0V/1A
- Dimensions: 170mm x 120mm x 18mm
- Device Weight: 0.26 kg
- Connectivity: USB 2.0, external trigger input, pass/fail, synchronized I/O
- Supported Standards: TTL trigger level
Buy the Buy Newark Dual Channel PC Based Oscilloscope Part Number MP720016US Online
Explore the convenience and precision of the Newark MP720016US dual-channel 25 MHz oscilloscope. Featuring an 8-bit resolution, 5,000 record length, and multiple trigger options, this portable device facilitates detailed waveform analysis, making it ideal for engineers, technicians, and researchers. Its compact design delivers high performance with USB 2.0 connectivity, synchronized input/output, pass/fail testing, and support for FFT and X-Y modes. Powering through USB, it ensures reliable data transfer and effortless deployment for field and laboratory testing needs.
Buy Newark MP720016US now and experience unmatched portability, versatile measurement, and comprehensive waveform analysis for electronic testing.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP720016US?
You can click on the BUY or RFQ button to purchase MP720016US from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP720016US?
You can download the MP720016US datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP720016US?
MULTICOMP PRO
