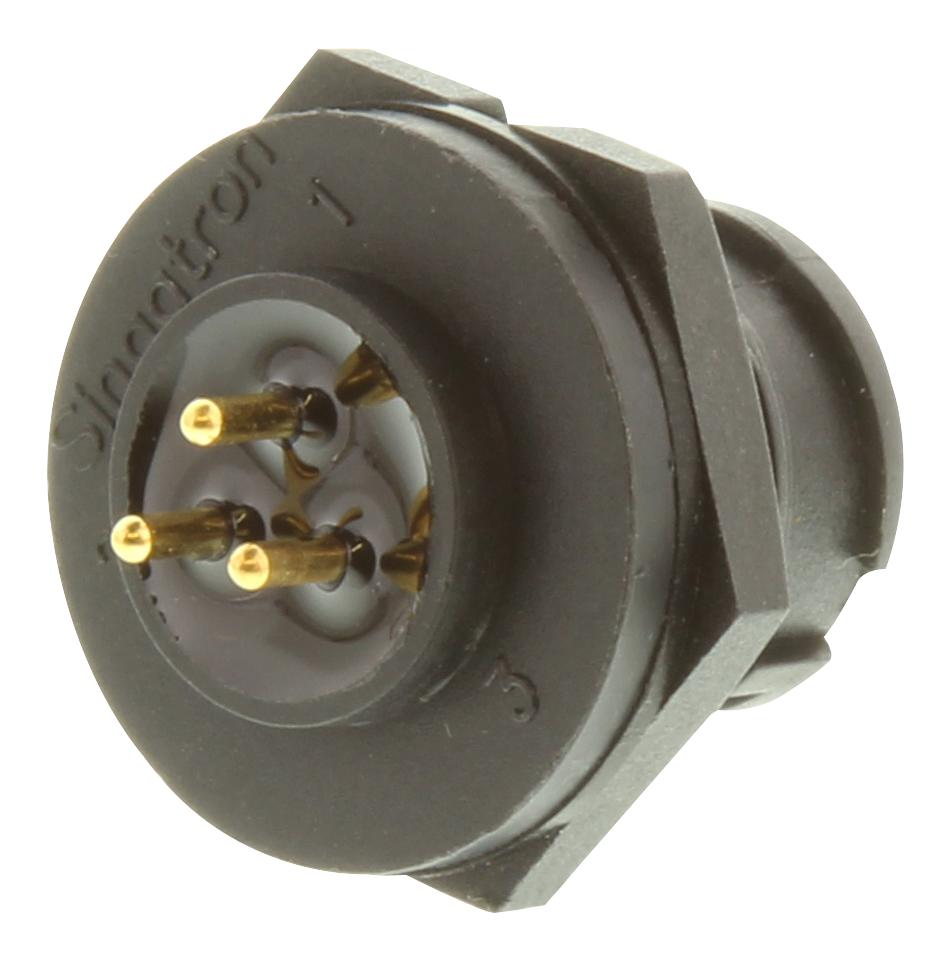

MULTICOMP PRO 2CT3000W03400 Waterproof Panel Mount Connector
The 2CT3000-W03400 from Multicomp is a waterproof, circular panel mount receptacle designed for panel thicknesses up to 4mm. It features a 3-way, 10A solder termination connector with IP67 rating, making it suitable for industrial applications requiring reliable water resistance. Constructed with a nylon and glass-filled body and copper alloy pin contacts with gold plating, the connector offers low contact resistance (≤30mΩ), high insulation resistance (≥100MΩ at 500VDC), and durability for at least 500 mating cycles. It withstands temperatures from -40°C to +100°C and resists corrosion after 48 hours of salt spray exposure. The connector supports a dielectric withstand voltage of 1000VAC for one minute and utilizes a lock-type mating style for secure connection. Multicomp products are rated highly, with a 4.6 out of 5-star rating, and the product comes with a 12-month limited warranty. Applications include various industrial settings.
MULTICOMP PRO 2CT3000W03400 Waterproof Panel Mount Connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Male pin
- Material Contact: Copper Alloy, Gold Plated
- Connector Body: Nylon+GF, PBT
- Panel Thickness: 4mm Max.
- Contact Resistance: ≤30mΩ (without cable)
- Insulation Resistance: ≥100MΩ at DC 500V
- Durability: 500 cycles Min.
- Breakdown Voltage: 1000V AC for one minute
- Corrosion Resistance: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Current Rating: 10A
- Waterproof Rate: IP67 (immersed in 1m water for 30 minutes)
Buy the multicomp Series Waterproof Panel Mount Connector: 2CT3000W03400
Order the multicomp waterproof panel mount connector 2CT3000-W03400 online now for reliable industrial waterproof connections. Featuring a 3-way, 10A solder terminal, IP67 water resistance rating, and robust nylon construction, this connector is ideal for demanding environments. It offers low contact resistance of ≤30mΩ, high insulation resistance of ≥100MΩ at 500VDC, and durability over 500 mating cycles. Suitable for panel thickness up to 4mm, it withstands temperatures from -40°C to +100°C and resists corrosion after salt spray exposure. Secure and easy to install, ensuring dependable electrical connections across various industrial applications.
Get multicomp waterproof panel mount connector 2CT3000-W03400 today—built for industrial durability and water resistance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2CT3000W03400?
You can click on the BUY or RFQ button to purchase 2CT3000W03400 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2CT3000W03400?
You can download the 2CT3000W03400 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2CT3000W03400?
MULTICOMP PRO
