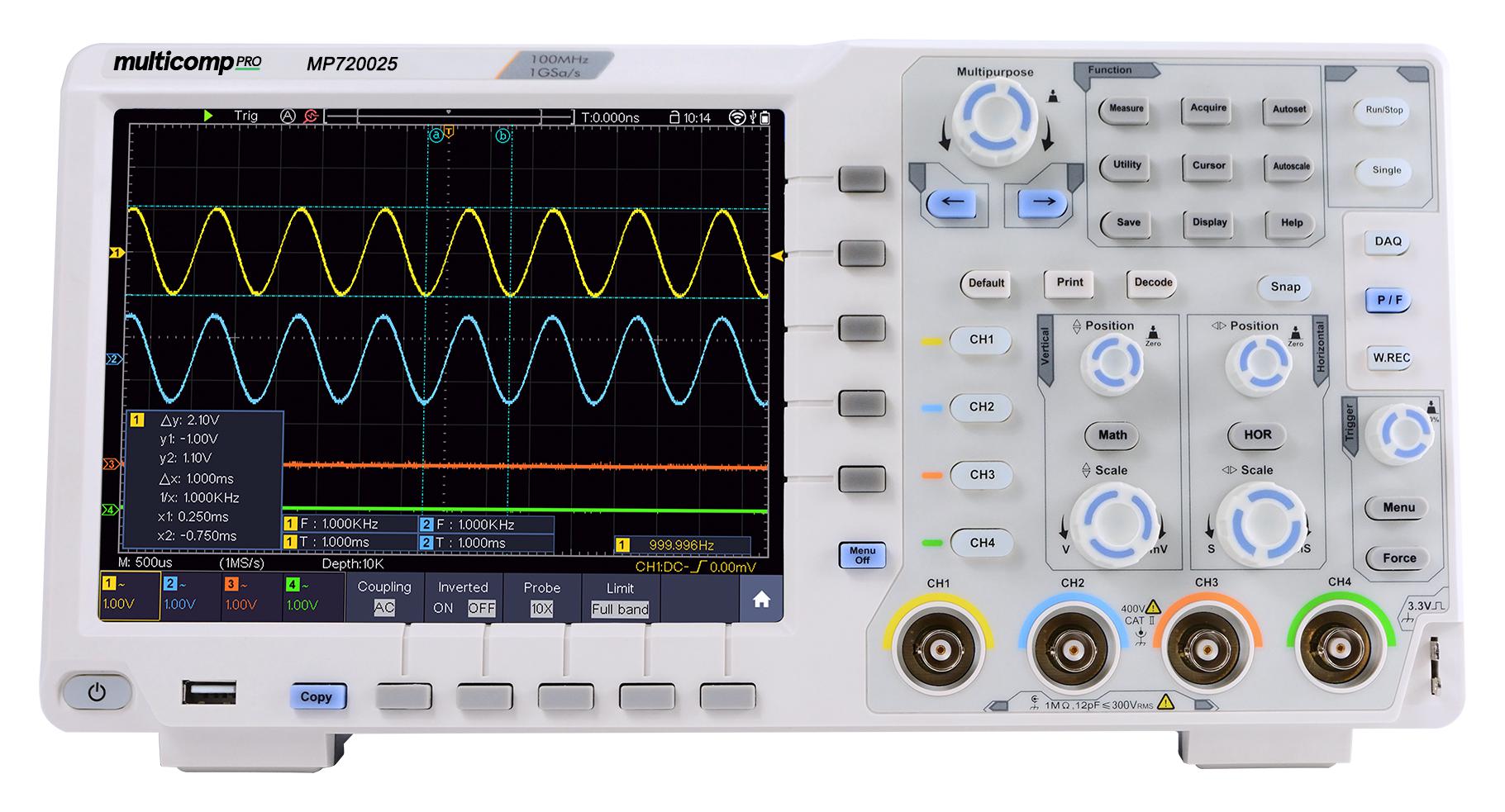

MULTICOMP PRO MP720025US Digital Oscilloscope
The Multicomp Pro MP720025 is an 8-bit, four-channel digital oscilloscope with a 100MHz bandwidth and a high-resolution 8-inch touchscreen LCD display (800x600). It features a waveform refresh rate of up to 45,000 frames per second, low background noise, and supports SCPI and LabVIEW integration. The scope includes a built-in frequency counter and decoder, with 40 million record length and a flexible horizontal time base from 2ns/div to 1000s/div, adjustable in 1-2-5 steps. It offers real-time sampling accuracy of ±2.5 ppm, multiple trigger types including edge, video, pulse, slope, runt, window, timeout, logic, I2C, SPI, RS232, and CAN bus decoding. Additionally, it provides various input couplings (DC, AC, GND), vertical sensitivity from 1mV/div to 10V/div, and multiple communication interfaces, including USB host/device, PictBridge, LAN, VGA, and trigger output. Dimensions are approximately 13.38 inches by 6.9 inches by 3.54 inches. Included accessories comprise four probes, a probe manual, accessory bag, USB Type B cable, operating instructions, CD-ROM, and mains cord.
MULTICOMP PRO MP720025US Digital Oscilloscope Specifications:
- Bandwidth: 100MHz
- Sample Rate: 1GS/s
- Vertical Resolution: 8 bits
- Record Length: 40M
- Waveform Refresh Rate: 45,000 wfms/s
- Horizontal Scale: 2ns/div - 1000s/div, stepped as 1-2-5
- Display: 8-inch colour LCD, 800 x 600 pixels
- Input Impedance: 1MΩ ±2%, in parallel with 15pF ±5pF
- Max Input Voltage: 1MΩ < 300 Vrms
- Trigger Types: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN (optional)
- Bus Decoding: I2C, SPI, RS232, CAN (optional)
- Communication Interface: USB host, USB device, PictBridge, LAN, VGA (optional)
- Dimensions: Approximately 13.38 x 6.9 x 3.54 inches
- Power Supply: 100V-240V AC, 50/60Hz
- Included Accessories: Probes, manual, USB cable, CD-ROM, power cord
Buy the Multicomp Pro MP720025 – Reliable Digital Oscilloscope for Industrial Applications
Experience precise signal analysis with the Multicomp Pro MP720025 digital oscilloscope. Its 100MHz bandwidth, 8-inch touchscreen, and high refresh rate provide fast, accurate measurements ideal for industrial testing, R&D, and troubleshooting. Support for multiple triggers, bus decoding, and SCPI/LabVIEW integration makes it suitable for complex tasks. The comprehensive connectivity options including USB, LAN, VGA, and trigger out ensure seamless data transfer and control. Get your reliable, versatile measurement tool online now and improve your workflow efficiency.
Order your Multicomp Pro MP720025 digital storage oscilloscope today and enhance your testing and measurement capabilities with this versatile instrument.
