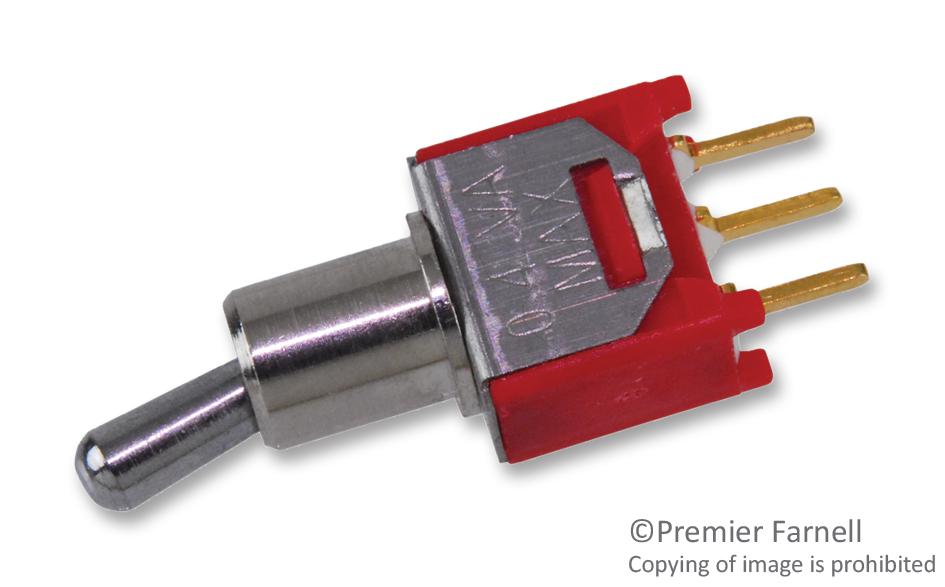

MULTICOMP PRO 2MS1T2B2M2RE Miniature Toggle Switch
The 2MS1 series from Multicomp Pro features sealed, single-pole toggle switches with a variety of termination options. These miniature switches have a maximum contact resistance of 20 milliohms and operate within a temperature range of -30°C to 85°C. They are rated for 100mA at 20VAC or 20VDC with silver contacts. The actuator is made of brass with chrome plating, and the bushing is brass with nickel plating. Contact plating options include silver or gold, based on ordering. They have a minimum insulation resistance of 1000 megaohms and feature an on-on switching operation. These switches are suitable for industrial, power management, automation, and process control applications.
MULTICOMP PRO 2MS1T2B2M2RE Miniature Toggle Switch Specifications:
- Contact Resistance: 20mΩ maximum at 2-4 V DC 100mA
- Mechanical Life: 30,000 cycles
- Insulation Resistance: 1,000MΩ minimum
- Dielectric Strength: 1,000V rms at sea level
- Operating Temperature: -30°C to +85°C
- Material: Case Diallyl phthalate, actuator Brass chrome plated, bushing Brass nickel plated, housing Stainless steel, switch support Brass tin plated, terminal/contact Silver/gold plated
- Contact Rating: 100mA at 20VAC/DC
- Switch Function: On-On, On-Off-On with various pole options
- Dimensions: Refer to detailed model-specific measurements in millimeters/inches
Buy the Buy Multicomp Toggle Switch Part Number 2MS1T2B2M2RE Online
Purchase the Multicomp Pro miniature toggle switch 2MS1T2B2M2RE online today. Designed for durability and precision, these sealed switches feature silver or gold contacts, a maximum contact resistance of 20mΩ, and operate within -30°C to 85°C. Rated for 100mA at 20VAC/DC, they are suitable for automation, power management, and industrial control systems. Offering reliable switching performance, insulation resistance over 1000MΩ, and multiple termination options, this switch ensures high efficiency and long service life for critical applications.
Get Multicomp toggle switch 2MS1T2B2M2RE today—engineered for reliability and long-lasting performance in industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2MS1T2B2M2RE?
You can click on the BUY or RFQ button to purchase 2MS1T2B2M2RE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2MS1T2B2M2RE?
You can download the 2MS1T2B2M2RE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2MS1T2B2M2RE?
MULTICOMP PRO
