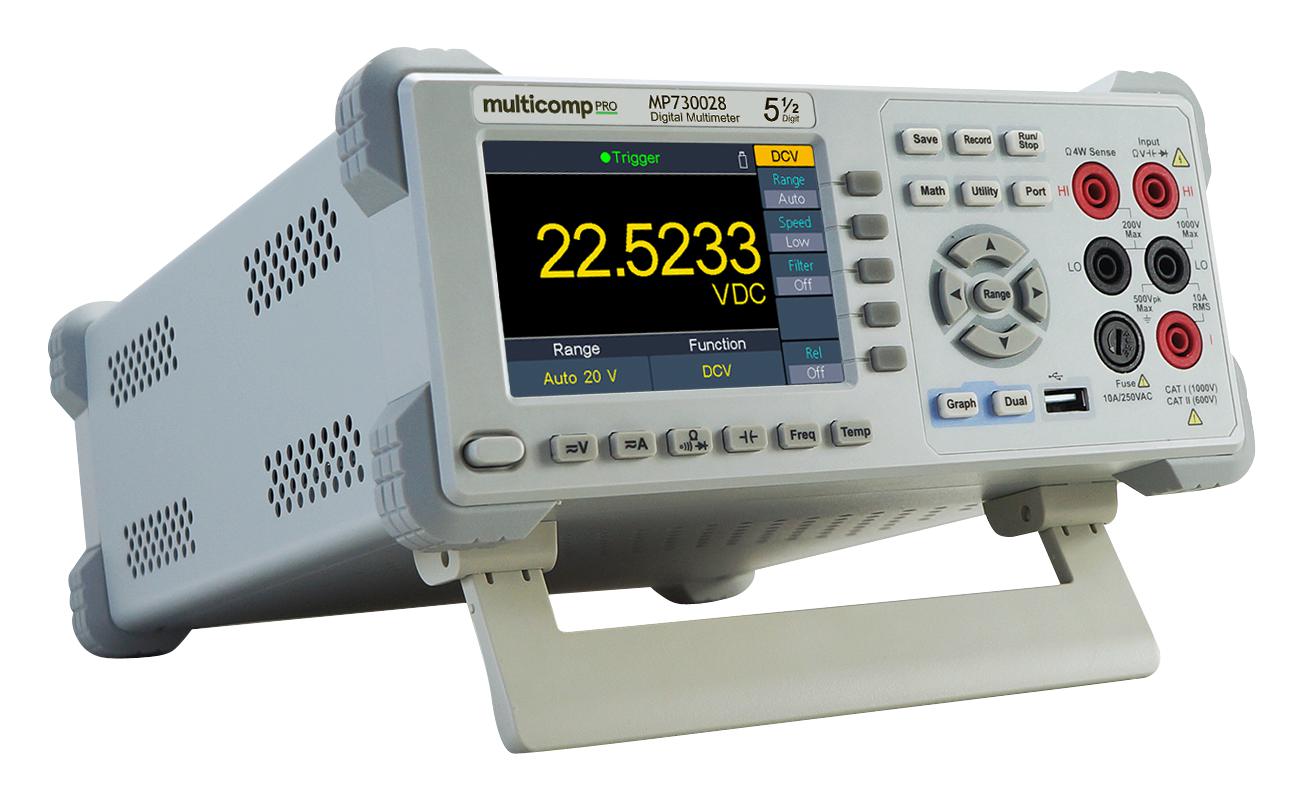

MULTICOMP PRO MP730028US Bench Multimeter
The Multicomp Pro MP730028 is a professional bench-type digital multimeter featuring a 5.5-digit resolution and a 4-inch high-resolution LCD display. It offers up to 150 readings per second, true RMS measurement for AC voltage and current, and supports various display modes including histograms, trend charts, bar meters, and statistical analysis. The multimeter includes a data-logger mode and trend analysis capabilities with specialized chart options. It supports SCPI commands for remote control and data sharing via LAN, USB, and RS232 interfaces. The device is equipped with multiple I/O options, including USB (device/host), RS232, LAN, and extension trigger input. Its dimensions are approximately 9.25 inches by 4.33 inches by 11.6 inches (235mm x 110mm x 295mm), and it weighs around 6.61 pounds (3 kg). The package includes the multimeter, two probes, a USB Type B cable, user manual, fuses, alligator clips, a mains cord, a CD-ROM, and additional fuse sets.
MULTICOMP PRO MP730028US Bench Multimeter Specifications:
- Dimensions: 235mm x 110mm x 295mm (9.25x4.33x11.6 inches)
- Weight: 3kg (6.61 pounds)
- Display: 4-inch high-resolution LCD, 480 x 320 pixels
- Resolution: Up to 5.5 digits
- Reading Rate: Up to 150 readings/sec
- Accuracy: 1 year+
- Measurement Range: DC Voltage 200mV to 1000V, AC Voltage 200mV to 750V, DC Current 200.000mA to 10A, AC Current 2.000A & 10A, Resistance 200Ω to 100MΩ, Capacitance 2.000nF to 10,000μF, Frequency 20Hz-1MHz, Temperature supported with thermocouples, with high accuracy.
- Features: True RMS AC measurement, data logging, trend charts, multiple interfaces including LAN, USB, RS232, trigger input.
- Power Supply: 100V-240V AC, 50/60Hz
- Accessories: Lead, USB cable, manual, fuse, alligator clips, power cord, CD-ROM.
Buy the Multicomp Series Digital Multimeter: MP730028 US
Purchase the Multicomp Pro MP730028 now and enjoy professional-grade measurement capabilities including true RMS AC/DC testing, high-resolution LCD display, and versatile data-logging. Ideal for electronics technicians and engineers, this multimeter provides fast readings with up to 150 samples per second and supports remote control through LAN, USB, RS232, and WiFi. Its compact design, extensive range, and included accessories make it perfect for laboratory or field work, ensuring accurate, reliable testing for electrical and electronic applications. Order online today for quick delivery and professional performance.
Get Multicomp Pro MP730028 today—built for precise electrical measurements with advanced data-logging features.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP730028US?
You can click on the BUY or RFQ button to purchase MP730028US from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP730028US?
You can download the MP730028US datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP730028US?
MULTICOMP PRO
