MULTICOMP PRO MP750290US Arbitrary Waveform Generator

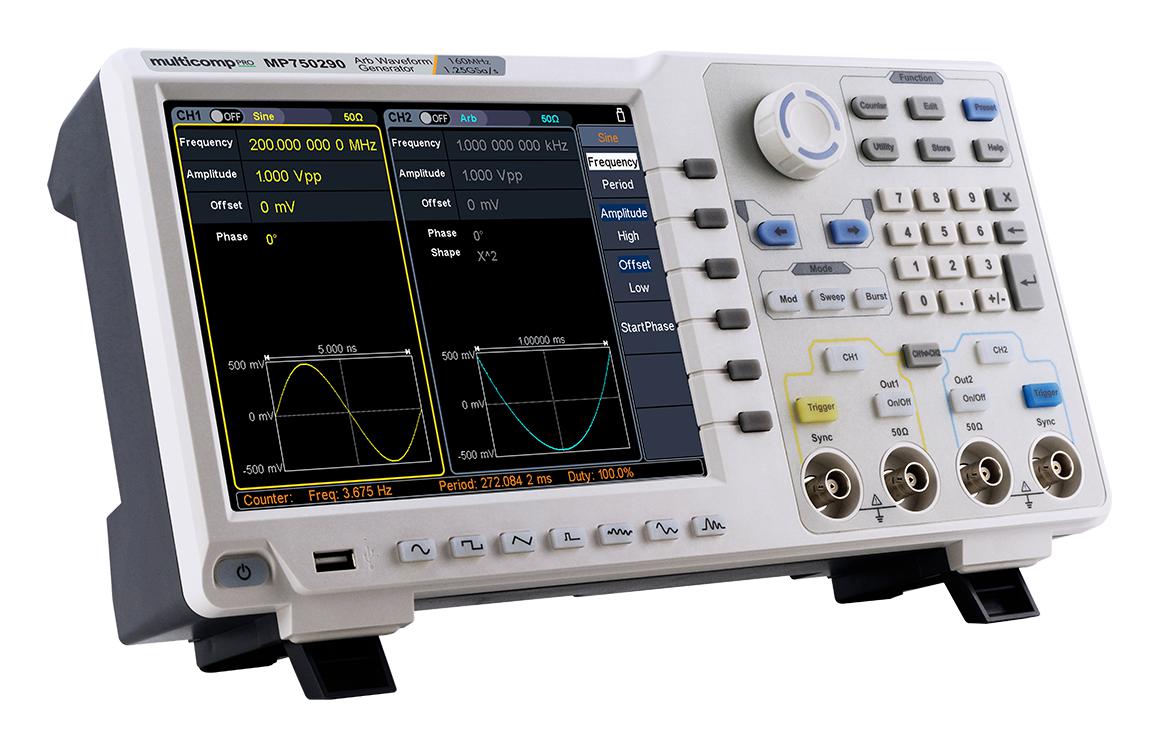

The Multicomp Pro MP750290 is a versatile 2-channel arbitrary waveform generator operating at a maximum frequency of 160MHz. It features a sampling rate up to 1.25GS/s, 14-bit vertical resolution, and supports arbitrary waveforms up to 1 million points. Equipped with an 8-inch multi-touch LCD display (800 x 600 pixels), it includes a high-precision frequency counter supporting up to 200MHz with 7-digit resolution. The device offers comprehensive waveform outputs, including six basic and 152 built-in arbitrary waveforms, along with modulation capabilities such as AM, FM, PM, FSK, PSK, ASK, BPSK, PWM, Sweep, and Burst modes. It is compatible with SCPI and LabVIEW, and features USB and LAN interfaces for connectivity. The instrument measures 340 x 177 x 90 mm and weighs 2.5 kg. Included accessories are the arbitrary function generator, US mains cord, CD-ROM, quick guide, USB cable, and Q9 cable.
MULTICOMP PRO MP750290US Arbitrary Waveform Generator Specifications:
- Max sample rate: 1.25GS/s
- Vertical resolution: 14 bits
- Maximum waveform length: 1 million points
- Number of built-in waveforms: 152
- Basic waveforms: sine, square, pulse, ramp, noise, harmonic
- Frequency range: sine 1pHz - 160MHz, square 1pHz - 30MHz, pulse up to 25MHz, ramp 1Hz - 50MHz
- Amplitude: 2mVpp - 10Vpp (below 40MHz), 2mVpp - 5Vpp (80MHz), 2mVpp - 2Vpp (<250MHz)
- Accuracy: ±1 ppm, 0°C - 40°C
- External clock: Supports external triggers and modulation
- Display: 8-inch multi-touch LCD, 800 x 600 pixels
- Measurement: High-precision frequency counter up to 200MHz with 7-digit resolution
- Interfaces: USB Host, USB Device, LAN
- Physical dimensions: approximately 340 x 177 x 90 mm
- Weight: 2.5 kg
- Power supply: 100V-240V AC, 50/60Hz
- Included accessories: US mains cord, CD-ROM, quick guide, USB cable, Q9 cable
Buy the Farnell MP750290 – Reliable Arbitrary Waveform Generator for Industrial Applications
Order the Farnell MP750290 online today and experience a versatile dual-channel arbitrary waveform generator capable of delivering high-frequency signals up to 160MHz. With a 14-bit vertical resolution, 1.25GS/s sampling rate, and comprehensive modulation features, it’s ideal for precise testing, R&D, and industrial applications. The 8-inch multi-touch LCD enhances user interface, while built-in arbitrary waveforms and a high-precision frequency counter support complex signal generation and measurement tasks. Its connectivity options include USB and LAN for seamless integration into your laboratory setup. Buy now for reliable performance and professional results.
Get Farnell MP750290 today—built for precision and long-lasting durability with extensive modulation options and a sleek multi-touch display.
