MULTICOMP-PRO PP002447 Industrial Communication Cable

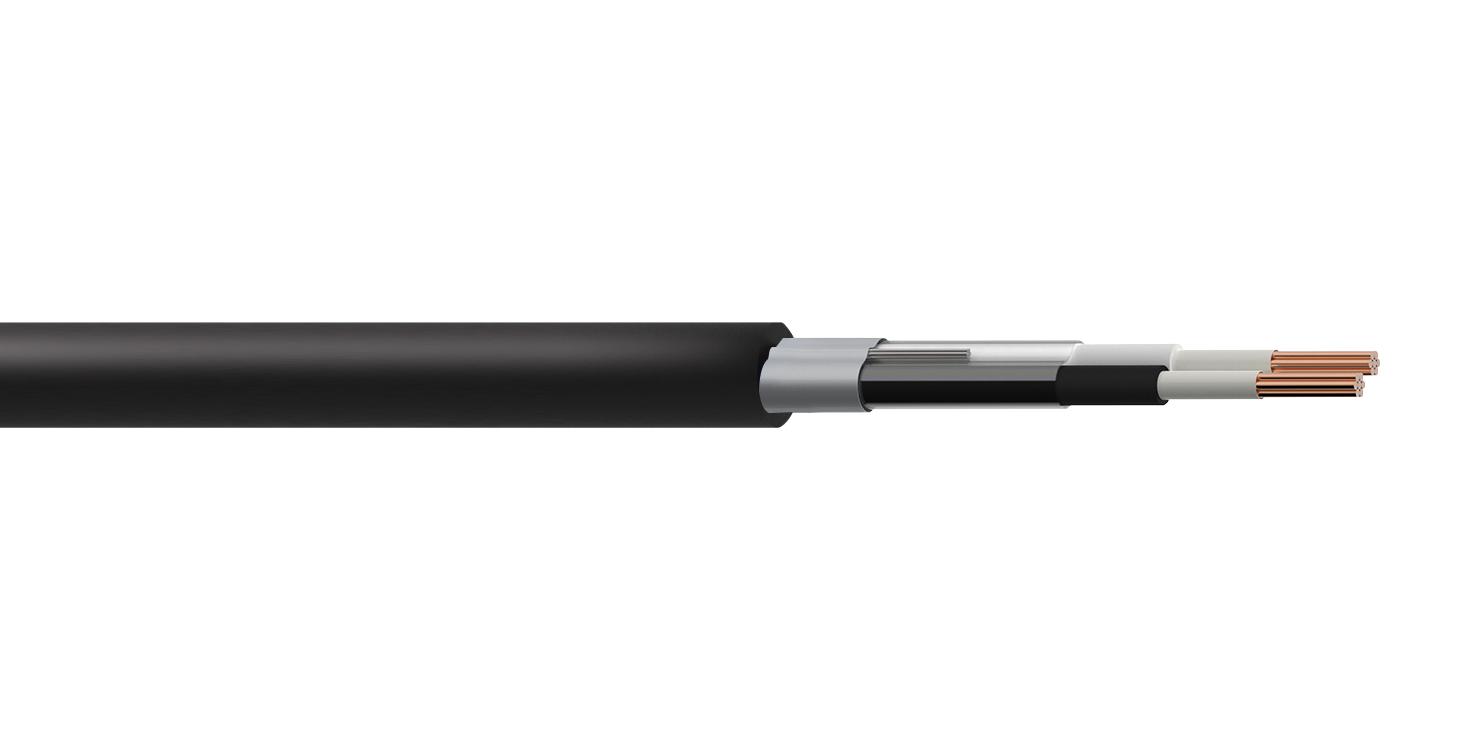

This XLPE/CAM/LSZH multi-core cable is designed for reliable communication and power connections in industrial environments, especially where fire safety and low smoke emissions are critical. Constructed with flexible copper conductors, XLPE insulation, and low smoke zero halogen sheath, it ensures circuit integrity in hazardous areas. Suitable for process industry applications like petrochemical plants, it features screened pairs, robust construction, and compliance with international standards including BS EN 50288-7. Ideal for installations requiring fire-resistant, toxic-fume-free cables that maintain performance during emergencies.
MULTICOMP-PRO PP002447 Industrial Communication Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: Fixed: -30°C to +90°C
- Minimum Bending Radius: 7.5 x overall diameter
- Core Identification: White and Black numbered
- Sheath Colour: Black
- Construction: Conductor - flexible or stranded copper, insulation - XLPE, sheath - LSZH
- Number of Pairs: 1, 2, or 5 pairs depending on part number
- Conductor Cross-Sectional Area: 0.75mm² or 1.5mm²
- Outer Diameter: Ranges from 6mm to 11.8mm
- Weight: From 50kg/km to 165kg/km
- Standards: BS EN 50288-1, BS EN 50288-7, HD 383, BS EN 50290-2, IEC 60331-23
- Maximum DC Resistance: 24.5 Ω/km for 0.75mm² and 12.1 Ω/km for 1.5mm²
- Mutual Capacitance: 100 pF/m for 0.75mm², 100 pF/m for 1.5mm²
- Fire & Safety Compliance: BS EN 60332-1, BS EN 60332-3-24, BS EN 61034-2
Buy the Buy Multicomp XLPE/CAM/LSZH Cables Part Number PP002447 Online
Secure your communication and power connections with our high-quality XLPE/CAM/LSZH industrial cable. Designed to meet stringent fire safety standards, it features low smoke zero halogen sheathing, flexible copper conductors, and screened pairs for noise immunity. Ideal for process plants, petrochemical environments, and hazardous areas, this cable provides dependable circuit integrity during emergency situations. Easy to install, compliant with international standards, and available online for prompt delivery, it’s the perfect choice for ensuring safety, durability, and reliable performance in critical industrial applications.
Order your Multicomp XLPE/CAM/LSZH Cable with 2 Pair 1.5mm Insulation today and ensure fire safety and reliable communication in hazardous environments.
