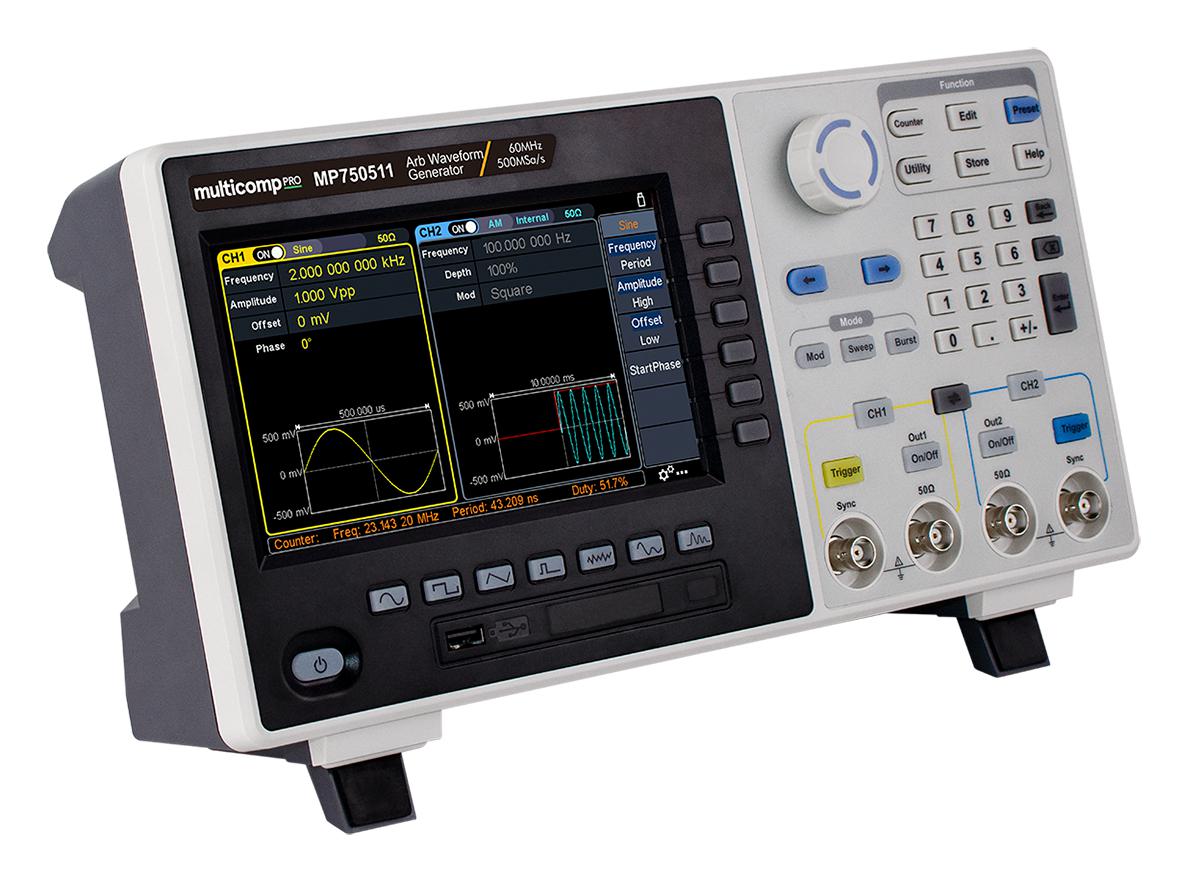

MULTICOMP PRO MP750511US Waveform Generator
The multisource arbitrary waveform generators offer advanced DDS technology with 14-bit vertical resolution, a 10M waveform length, and ideal for precise signal testing. They support a wide frequency output range from 35MHz to 100MHz, feature comprehensive modulation functions like AM, FM, PM, and more, along with high-accuracy frequency counting from 100mHz to 200MHz. Equipped with a 7-inch LCD display, USB, LAN interfaces, and support for SCPI and LabVIEW, these generators are versatile tools for laboratory and industrial applications, delivering reliable performance for complex waveform generation and modulation.
MULTICOMP PRO MP750511US Waveform Generator Specifications:
- Channel: 1 or 2 channels with output frequencies up to 100MHz
- Sample Rate: 500MSa/s
- Vertical Resolution: 14 bits
- Waveforms: Sine, square, pulse, ramp, noise, harmonic, exponential rise, exponential fall, arbitrary waveforms
- Frequency Output: 35MHz, 60MHz, 80MHz, 100MHz (depending on model)
- Frequency Resolution: 1Hz (up to 80MHz), 1pHz (arbitrary waveform)
- Harmonic Distortion: < -70dBe (<10MHz); < -50dBc (>60MHz)
- Rise/Fall Time: <8ns for square wave; <8ns for signals
- Sweep Range: 3MHz to 25MHz depending on waveform
- Amplitude Range: 1mVpp to 10Vpp into 500Ω load, resolution 0.1mVpp
- Offset Range: ±5V (500Ω load), offset resolution 0.1mV
- Modulation Types: AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM, Sum
- External Interface: USB, LAN, SCPI, and LabVIEW support
- Display: 7-inch LCD (800 x 480 pixels)
- Physical Dimensions: 340mm x 177mm x 90mm, weight 2.3kg
Buy the Multicomp Series Arbitrary Waveform Generator: MP750511US
Experience reliable and high-precision waveform generation with the Multicomp Series MP750511US. Featuring advanced DDS technology, 14-bit resolution, and a broad frequency range, this device supports extensive modulation types like AM, FM, and PSK. The 7-inch LCD provides easy control, while USB and LAN interfaces ensure flexible communication. Ideal for laboratory, industrial, or research environments, this generator offers dependable performance in complex signal testing, making it the perfect addition to any technical setup. Purchase online now for quick delivery and exceptional quality.
Get Multicomp Series MP750511US today—built for precise signal testing and industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP750511US?
You can click on the BUY or RFQ button to purchase MP750511US from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP750511US?
You can download the MP750511US datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP750511US?
MULTICOMP PRO
