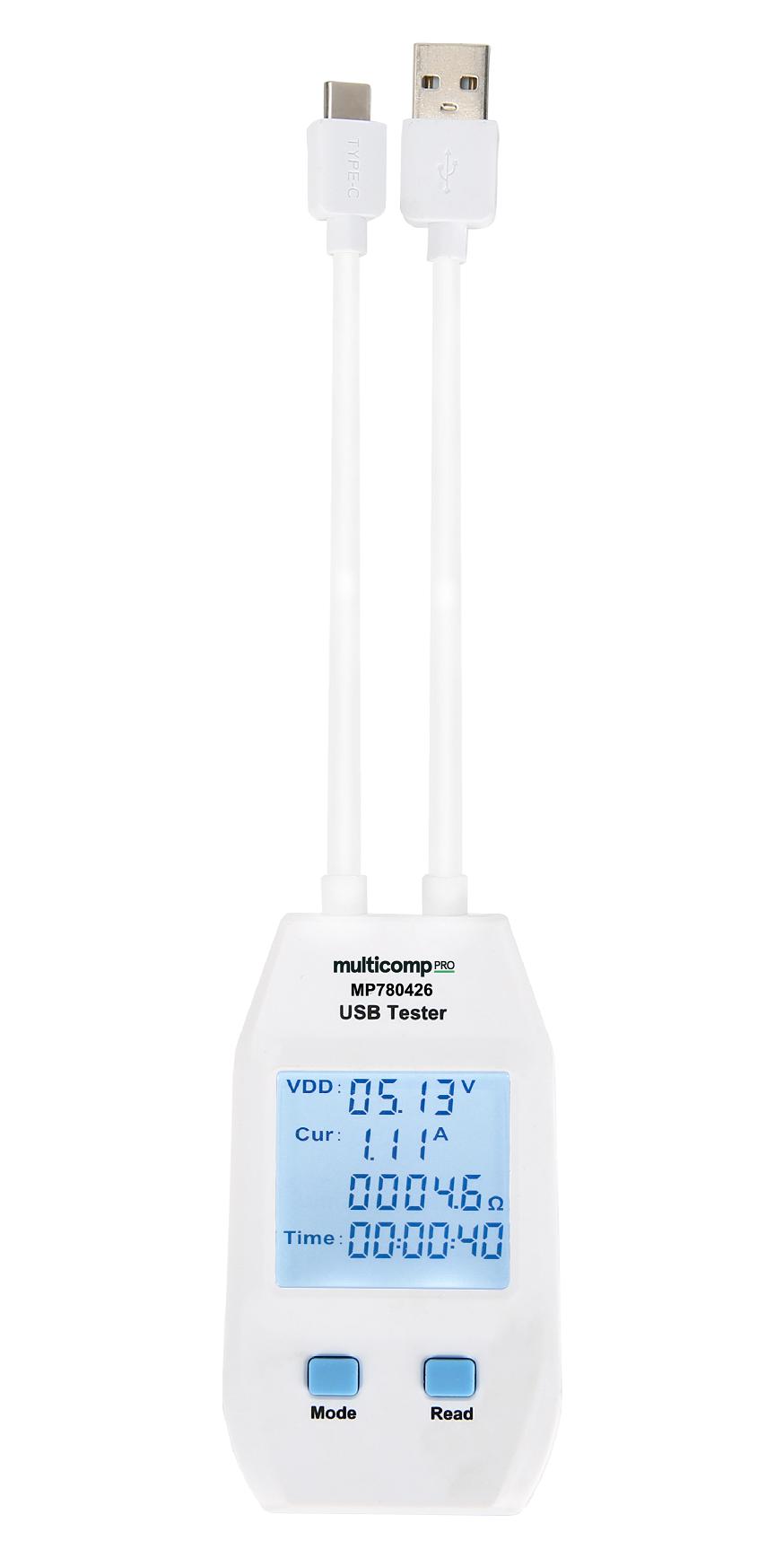

MULTICOMP PRO MP780426 USB Tester
The Multicomp Pro MP780426 is a dual USB tester supporting both Type A and Type C connections. It is designed to inspect and measure various parameters of USB chargers, portable power sources, data cables, and other electronic charging devices. The device can measure output voltage, current, energy, capacity (up to 99,999mAh), circuit equivalent resistance, and the D+ and D- voltages of USB data cables. It features a compact, reliable, and precise build suitable for manufacturing verification, engineering testing, and DIY applications. Key specifications include support for fast charging standards (QC 1.0/2.0/3.0 for Type A and QC 1.0/2.0/3.0/4.0 for Type C), voltage testing from 4V to 24V with 1% accuracy, current testing from 0.05A to 3A or 5A with high accuracy, memory for 10 test groups, and maximum timing of nearly 100 hours. The device is CE certified and includes extendable cables for versatile testing.
MULTICOMP PRO MP780426 USB Tester Specifications:
- Input & Output ports: Type A and Type C
- Voltage Range: 4V DC to 24V DC, resolution 0.01V
- Current Range (Type-A): 0.05A DC to 3A DC, resolution 0.01A
- Current Range (Type-C): 0.05A DC to 5A DC, resolution 0.01A
- Capacity: 0mAh to 99999mAh, resolution 1mAh
- Energy: 0Wh to 1000Wh
- Circuit resistance: 10 to 4800
- Voltage measurement of USB Data cable: 0V to 3.3V
- Maximum recording time: 99h 59min 59sec, resolution 1s
- Support for fast charge protocols: QC 3/4
- Display: Digital
- Dimensions: 93mm x 55mm x 13mm
- Net weight: 65.89g
- Certifications: CE
- Operating temperature: Standard industrial range
Buy the Buy Multicomp USB Tester Part Number MP780426 Online
Order the Multicomp Pro USB Tester MP780426 online today and enjoy hassle-free testing of USB chargers, data cables, and portable power sources. Its dual Type A and Type C support, high-accuracy measurements, fast charge protocol compatibility, and compact design make it an essential tool for manufacturing, engineering verification, and DIY enthusiasts. With extendable cables, long test times, and CE certification, this device offers reliable and versatile performance. Purchase now to optimize your electronic device testing and ensure your products meet industry standards efficiently.
Buy Multicomp MP780426 now and experience precise, reliable USB testing for fast charging protocols, voltage, current, and capacity measurement.
