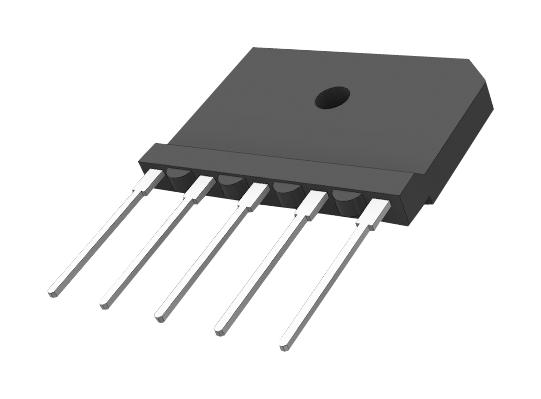

MULTICOMP PRO SGBJ5010 Three Phase Bridge Rectifier
This three-phase bridge rectifier with glass passivated chip ensures high reliability, low forward voltage drop, and insulation voltage of 2500V, making it ideal for power supplies of DC equipment, PWM converter inputs, and DC motor applications. Compact and lightweight design with high thermal conductivity, it features a maximum repetitive voltage of 1000V, peak forward surge current of 840A, and operates efficiently within a temperature range of -55°C to +150°C. Suitable for resistive or inductive loads with approved certifications for safety and durability.
MULTICOMP PRO SGBJ5010 Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1000 V
- Peak Non-Repetitive Reverse Voltage VRSM: 1100 V
- Maximum Average Forward Current: 50 A
- Peak Forward Surge Current: 840 A
- Maximum Forward Voltage drop: 17.5 V at 17.5A
- Reverse peak current: 5 pA
- Insulation Voltage: 2500 V
- Typical Thermal Resistance: 0.8 °C/W
- Dimensions: 1.367 inches (34.7 mm) x 0.977 inches (24.8 mm) x 0.140 inches (3.55 mm)
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Weight: 10 g
Buy the Buy Multicomp Rectifier Part Number SGBJ5010 Online
Order the high-quality three-phase bridge rectifier online today and ensure reliable power conversion for your equipment. Featuring a glass passivated chip, 1000V insulation voltage, and a maximum forward current of 50A, this compact device provides excellent thermal management with a thermal resistance of 0.8 °C/W. Suitable for resistive or inductive loads, it operates efficiently within a temperature range of -55°C to +150°C. Purchase now for fast delivery and enhance your power systems' performance.
Buy Multicomp SGBJ5010 now and experience unmatched reliability and high thermal conductivity for demanding power applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SGBJ5010?
You can click on the BUY or RFQ button to purchase SGBJ5010 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SGBJ5010?
You can download the SGBJ5010 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SGBJ5010?
MULTICOMP PRO
