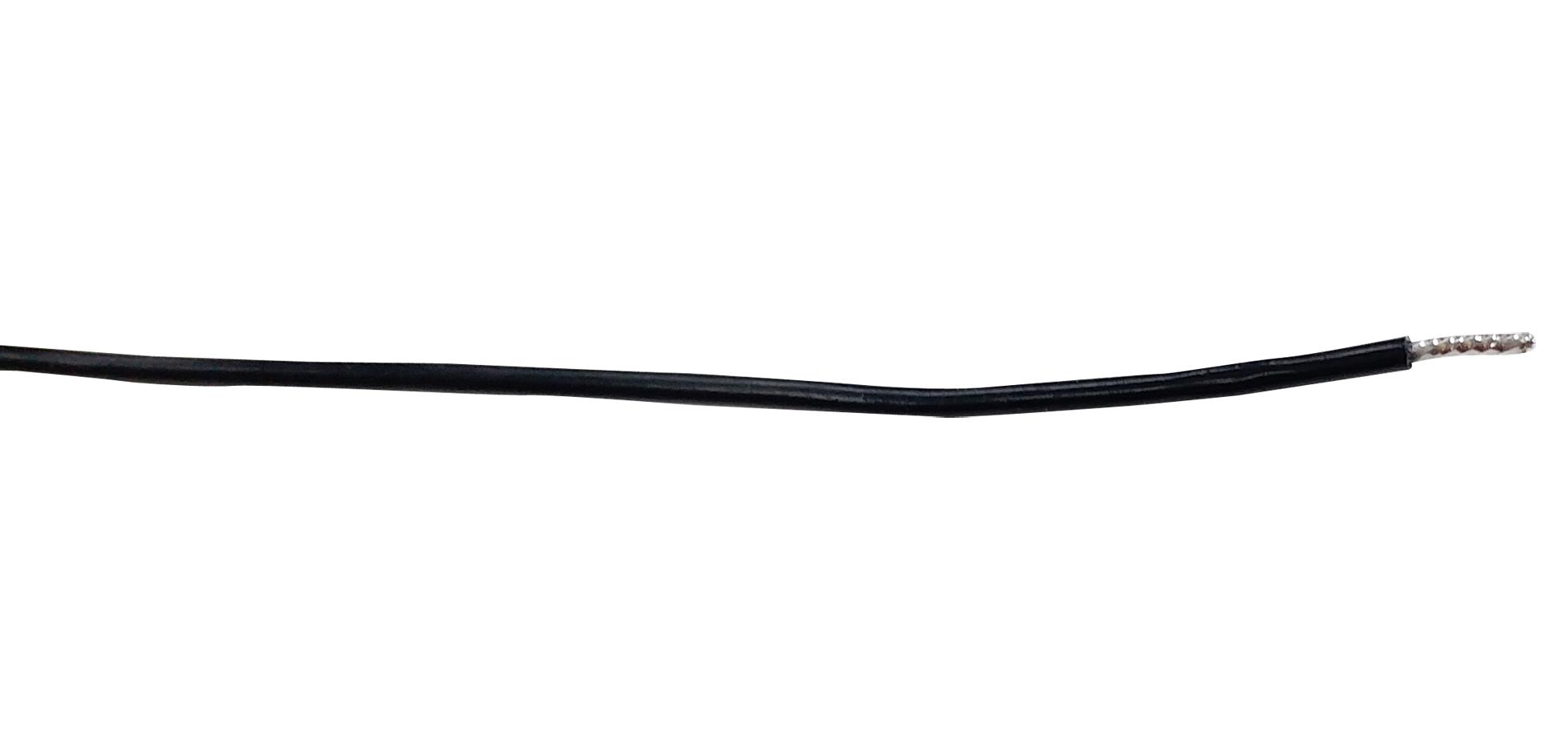

MULTICOMP-PRO PP002546 Hook-Up Wire
This UL1569 style stranded hook-up wire by pro-POWER is crafted with tinned copper conductors and PVC insulation, rated for 105°C and 300V. Available in multiple wire gauges from 16 to 30 AWG, it features flexible stranded construction suitable for electronic and electrical applications. The wire options include various colors: black, brown, red, yellow, green/yellow, blue, white, purple, grey, and orange. It comes in reels of 305 meters or per-meter length, ensuring versatile installation and use in wiring harnesses, control panels, and device connections, complying with UL standards and RoHS directives.
MULTICOMP-PRO PP002546 Hook-Up Wire Specifications:
- Conductor Material: Tinned Copper
- Insulator Material: PVC
- Rated Temperature: 105°C
- Rated Voltage: 300V
- Wire Gauges: 16, 18, 20, 22, 24, 26, 28, 30 AWG
- Conductor Strands: 65/0.16, 34/0.18, 17/0.16, 11/0.16, 7/0.16, 7/0.127, 7/0.10
- Conductor Diameter: 1.49 mm (16 AWG), 1.21 mm (18 AWG), 0.95 mm (20 AWG), 0.76 mm (22 AWG), 0.61 mm (24 AWG), 0.49 mm (26 AWG), 0.39 mm (28 AWG), 0.31 mm (30 AWG)
- Insulation Diameter: Varies from 0.31 mm to 2.0 mm depending on gauge
- Color Options: Black, Brown, Red, Yellow, Green/Yellow, Blue, White, Purple, Grey, Orange
- Available Lengths: 305 meters reel or per meter
- Compliance: UL Listed (UL file no. E352035), RoHS Live, UL1569 standard
- Application: Suitable for wiring, control panels, electronic devices, and other electrical connections requiring flexible stranded wire
Buy the Buy pro-POWER UL1569 Hook-Up Wire Part Number PP002546 Online
Secure your wiring needs with pro-POWER UL1569 stranded hook-up wire, available online for quick and reliable delivery. With various gauges and colors, this high-quality wire ensures optimal performance in electronic and electrical applications. Rated for 105°C and 300V, it offers flexibility and durability for use in control panels, wiring harnesses, and device connections. Order now for fast, convenient online shopping, and get the trusted quality you need for your electrical projects from an authorized distributor.
Buy pro-POWER PP002546 now and enjoy reliable, flexible wiring solutions for professional electronic and electrical projects.
