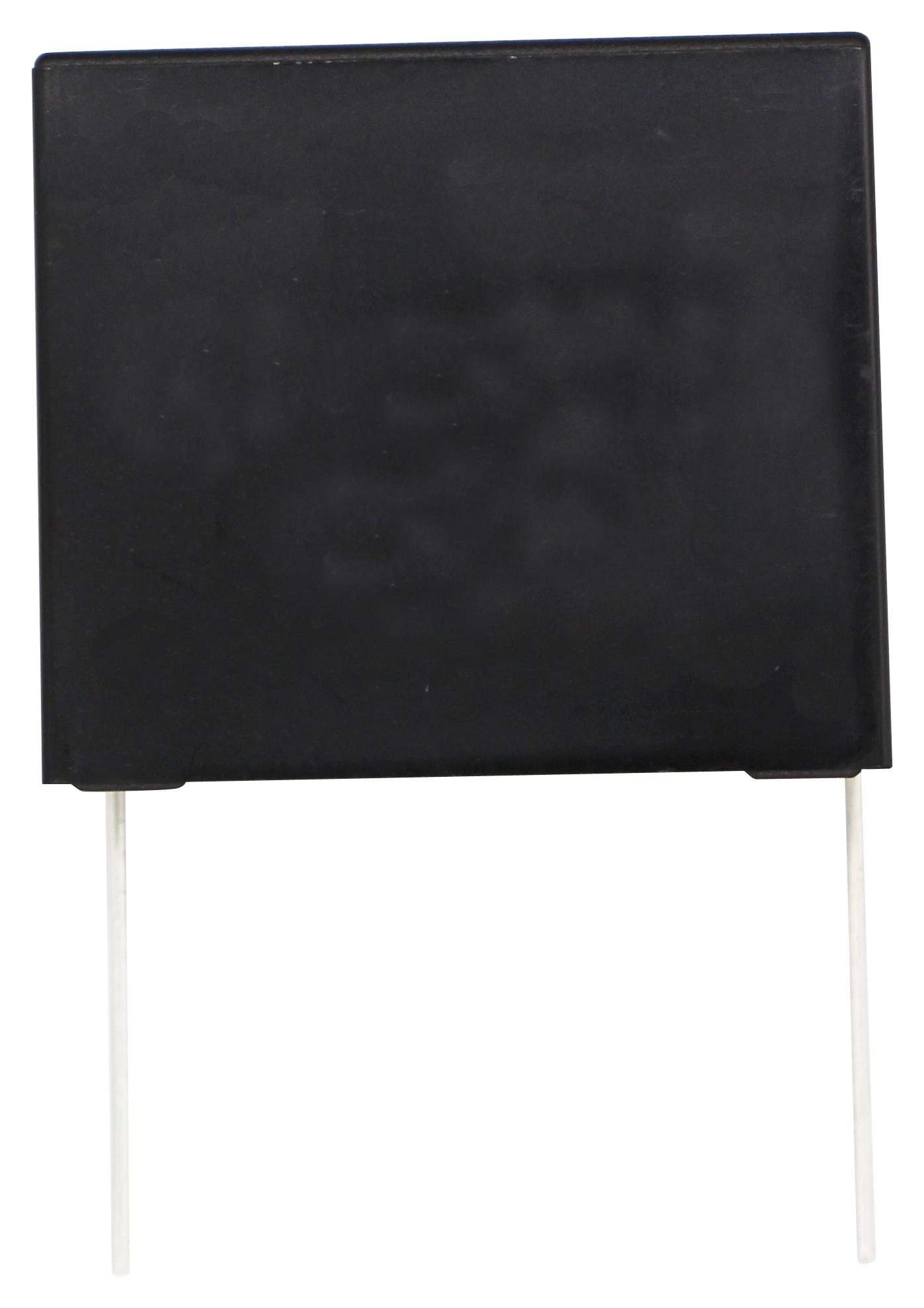

MULTICOMP PRO MPAPK4A4W22K0R200 AC Filter Capacitor
The AC Output Filter Film Capacitors of the MPAPK series are radial leaded components designed for small power AC filtering applications such as UPS and solar inverter systems. They feature metallized polypropylene film construction with self-healing properties and operate within a temperature range of -40°C to +105°C. With voltage ratings up to 440V AC and capacitance options from 0.68uF to 15uF, these capacitors are ideal for AC output filtering, offering high insulation resistance and low dissipation factor for reliable performance in demanding electrical environments.
MULTICOMP PRO MPAPK4A4W22K0R200 AC Filter Capacitor Specifications:
- Reference Standard : GB/T17702 (IEC 61071)
- Climatic Category 1 40/85/21
- Operating Temperature Range (Case) : -40°C to +105°C
- Rated RMS Voltage : 350V AC and 440V AC
- Rated AC Voltage : 450V AC
- Max continuous DC Voltage : 600V DC
- Capacitance Range : 0.68 UF to 15uF
- Capacitance Tolerance : ±10% (K)
- Voltage Proof : Between Terminals 1.5UN (10s), Between Terminals to Case 3000V AC (60s)
- Insulation Resistance : ≥3000s (20°C, 100V DC, 1 min)
- Dissipation Factor : ≤20 x 10^-4 (1kHz, 20°C), typical 15 x 10^-4
- Dimensions (mm): Ww 40.05, T 20.05, H 20, Lead Dia 1.2 mm
- Operating temperature: -40°C to +105°C
- Peak ESR and IR characteristics vary by model, with high current capacity and low impedance suitable for filtering purposes.
Buy the AC Output Filter Series Multicomp PRO: MPAPK4A4W22K0R200
Enhance your electrical systems with the multicomp PRO AC filter capacitor. With ratings up to 440V AC and capacitance options from 0.68uF to 15uF, these radial leaded components deliver reliable AC output filtering, excellent insulation resistance, and high thermal stability from -40°C to +105°C. Perfect for UPS and solar inverter applications, they ensure optimal system performance. Order online today for fast delivery and trusted quality, making your power management solutions more efficient and dependable in demanding environments.
Get multicomp PRO MPAPK4A4W22K0R200 today—built for precision filtering and long-lasting durability in AC power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPAPK4A4W22K0R200?
You can click on the BUY or RFQ button to purchase MPAPK4A4W22K0R200 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPAPK4A4W22K0R200?
You can download the MPAPK4A4W22K0R200 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPAPK4A4W22K0R200?
MULTICOMP PRO
