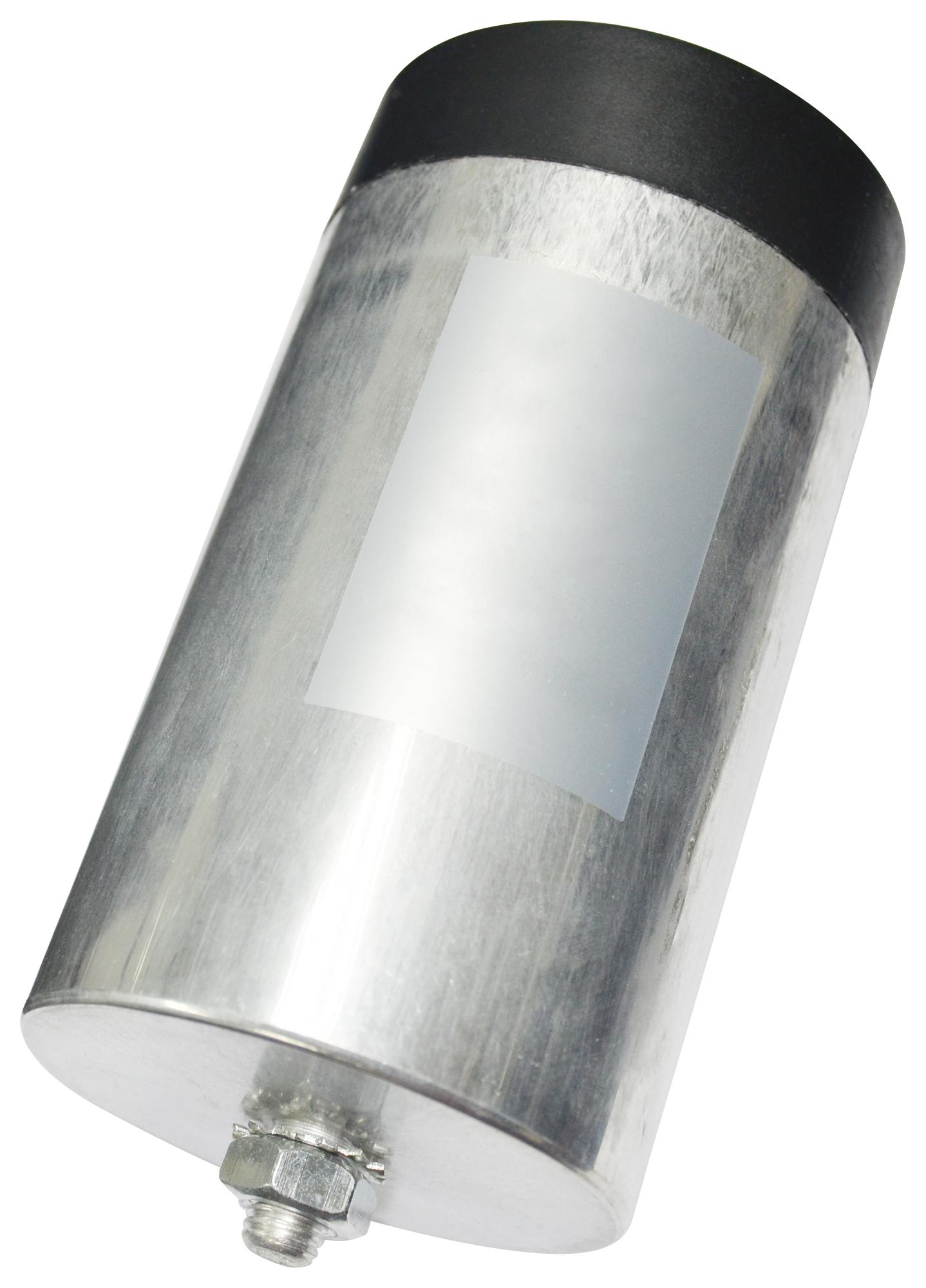

MULTICOMP PRO MPDAT107J300VD76N6M DC-Link Capacitor
The DC-Link Film Capacitors from the MPDAT series are advanced metallized polypropylene film capacitors designed as efficient replacements for electrolytic capacitors in DC-Link circuits. They feature low equivalent series resistance (ESR), high ripple current handling capacity, and self-healing properties, making them ideal for use in renewable energy inverters, electric vehicles, welders, and motor driver systems. These capacitors comply with GB/T17702 standards, operate within -40°C to +85°C, and have rated voltages of 300V and 480V, ensuring durability and reliable performance in demanding applications.
MULTICOMP PRO MPDAT107J300VD76N6M DC-Link Capacitor Specifications:
- Climatic Category 2 40/85/56
- Operating Temperature Range: -40°C to +85°C
- Capacitance Range: 40uF to 100uF
- Capacitance Tolerance: ±5%
- Test Voltage Between Terminals: 1.5Un (10s, 20°C +5°C)
- Test Voltage Between Terminals and Case: 1500V DC, 3000V AC (10s, 50Hz, 20°C +5°C)
- Rated Voltage (Urms): 300V and 480V
- Rated Frequency: 50/60Hz
- Life Expectancy: 100,000 hours at Un and Ons +70°C
- Dielectric Material: Metallized Polypropylene Film
- Max. Altitude: 2000m
- Leads: 2-M6x20 Bolt
Buy the Premier Series DC-Link Capacitors: MPDAT 107J300VD76N6M
Order the high-performance DC-Link Capacitors from the MPDAT series online now. These capacitors are engineered for renewable energy inverter systems, electric vehicle applications, and industrial motor drives. With low ESR, self-healing features, and rated voltages of 300V and 480V, they ensure reliable operation under demanding conditions. Perfect for energy storage, motor control, and power conversion, these capacitors meet international standards and offer exceptional durability, making them a smart choice for engineers seeking quality and longevity in their power electronics projects.
Get Premier Series DC-Link Capacitors MPDAT 107J300VD76N6M today—designed for high ripple current handling and long-lasting reliability in industrial power systems.
