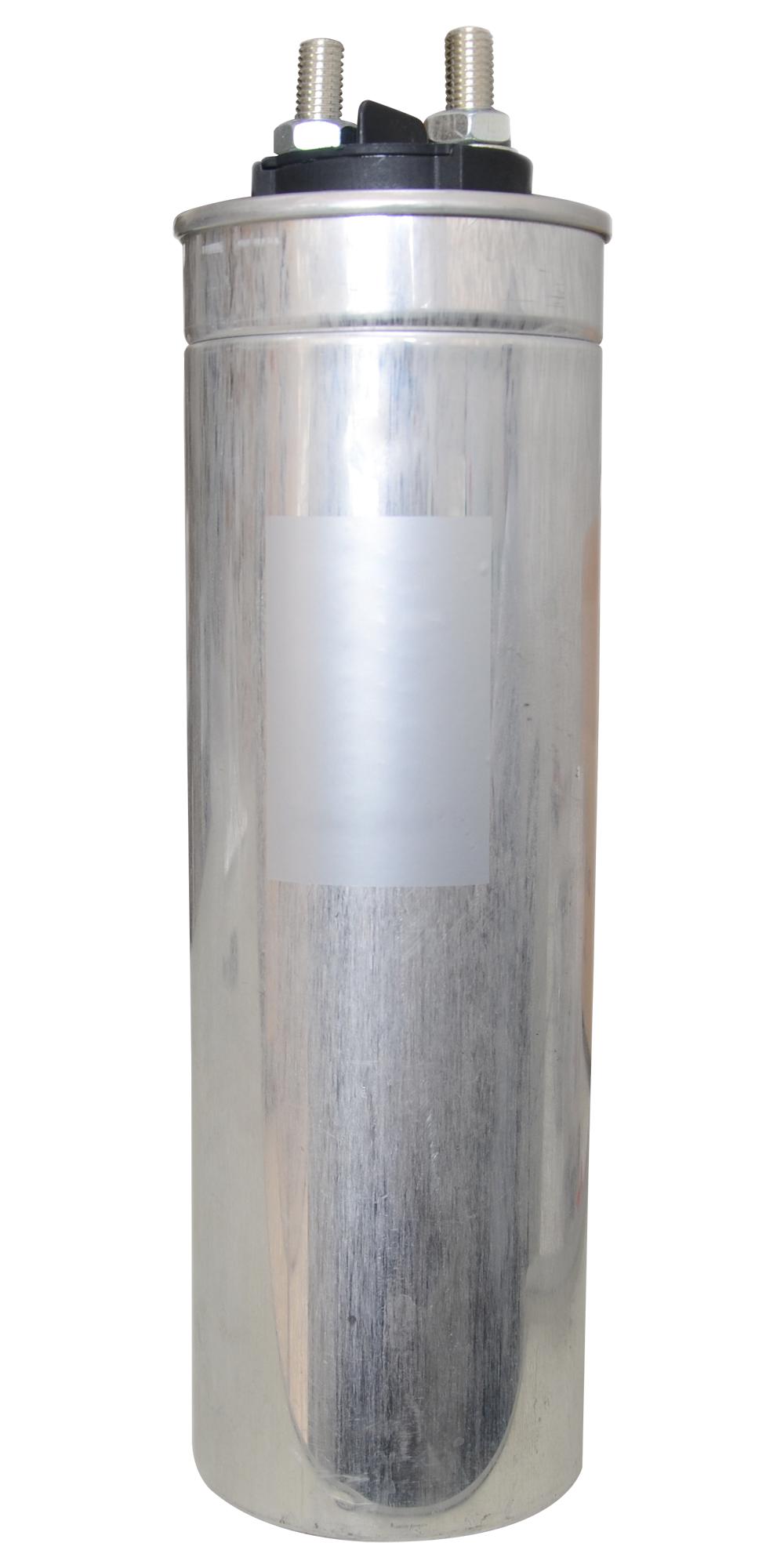

MULTICOMP PRO MPAPM4A0A50J0 AC Filter Capacitor
This AC filter film capacitor features a robust metallized polypropylene dielectric with a round aluminum housing, suitable for filtering applications in electrical systems. It has rated voltages of 300V AC and 400V AC, with a capacitance of 50uF at 60Hz. The capacitor offers excellent insulation resistance, low dissipation factor, and high dielectric strength for durability and reliability under operational conditions from -25°C to +70°C. Its compact size and quick connect terminals simplify installation, making it ideal for power filtering, suppression, and noise reduction in industrial and electronic circuits.
MULTICOMP PRO MPAPM4A0A50J0 AC Filter Capacitor Specifications:
- Capacitance: 50uF
- Rated Voltage: 400V AC
- Rated Frequency: 60Hz
- Temperature Range: -25°C to +70°C
- Dielectric Material: Metallized Polypropylene film
- Insulation Resistance: >5000S
- Dissipation Factor: tg 5 <0.0018 @ 100Hz @ +25°C
- Capacitive Rating Deviation: ±5%
- Outer Protective Surface: Round aluminum housing
- Leads: Quick connect terminals, M6*20 screw with M8 nut
- Dielectric Strength: 3000V DC/60Sec @ +25°C
- Life Expectancy: 60000 hours at Un and @hs <50°C
- Electrode and Shell Voltage Strength: 1.75Un Continuous 5S
- Certifications: IEC 61071
Buy the Multicomp Series MP Series AC Filter Capacitor: MPAPM4A0A50J0
Enhance your electronic and industrial systems with the durable and high-performance AC filter capacitor from Multicomp. With its metallized polypropylene dielectric, quick connect terminals, and wide temperature range, this capacitor delivers reliable filtering, noise reduction, and power stability. Designed for easy installation and long life expectancy, it is perfect for power supply filtering, motor drive applications, and electronic noise suppression. Purchase now online for quick delivery and assured quality, ensuring your equipment runs smoothly and efficiently.
Buy Multicomp MPAPM4A0A50J0 now and experience unmatched reliability and performance in power filtering and noise suppression.
