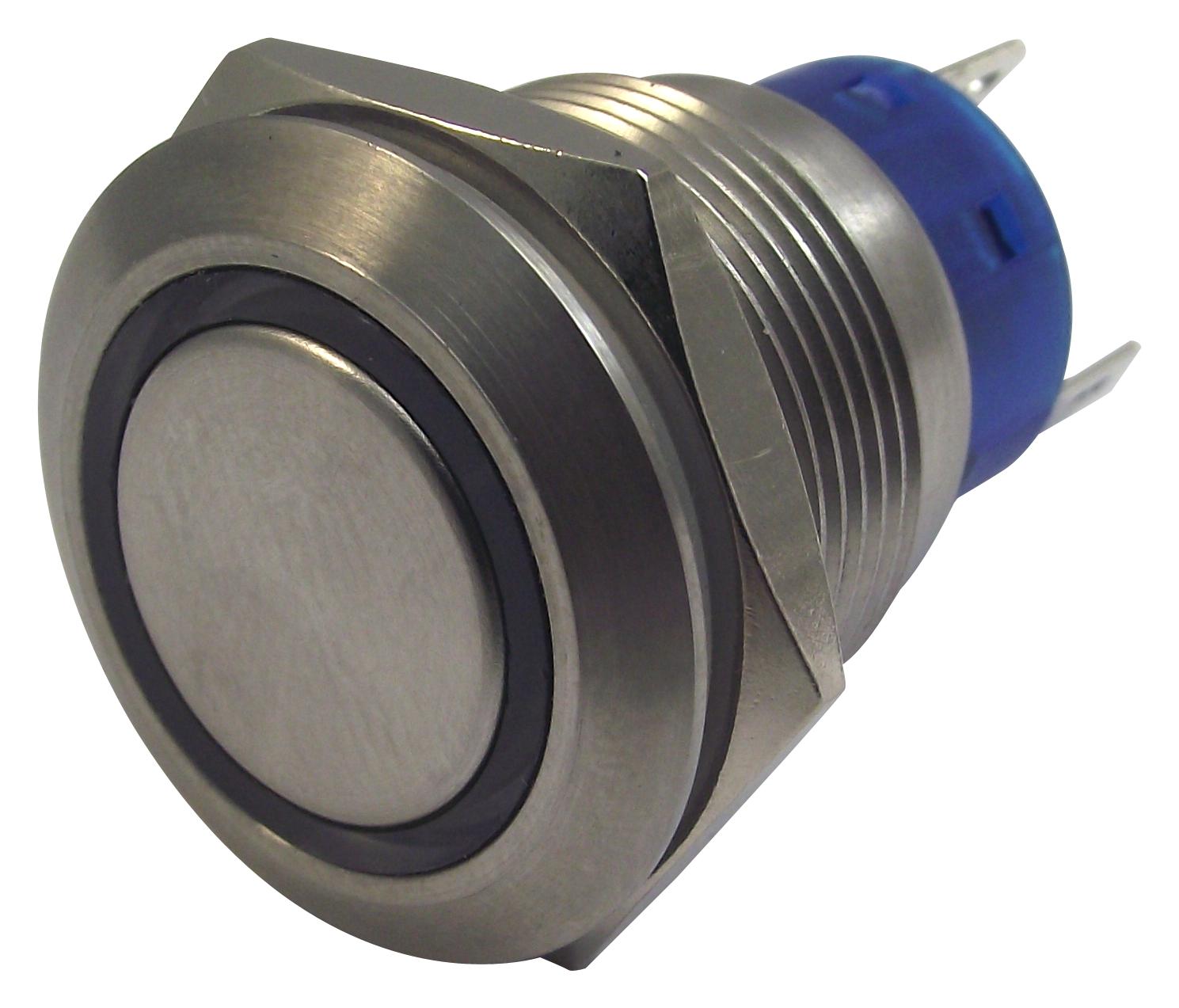

MULTICOMP PRO MPB19A0F10R312JQ Industrial Pushbutton Switch
The Metal Pushbutton Switch multicomp:ro is a durable, stainless steel and nickel-plated brass switch designed for industrial applications. It features silver contacts rated at 250V AC resistive load of 3A, with a robust IP67 ingress protection rating and IK10 impact resistance. Suitable for panel thickness up to 10mm, it offers a mechanical life of 1,000,000 cycles in momentary mode and 500,000 in lock mode. The switch operates reliably between -20°C to +55°C and includes sealing with silicone. The actuator is made of PC stainless steel, and it features a terminal shape of solder type with a ring body for fixed installation.
MULTICOMP PRO MPB19A0F10R312JQ Industrial Pushbutton Switch Specifications:
- Contact Material: Silver
- Rating: SA/250V AC, resistive load 3A/250V AC
- Contact Resistance: 50mQ Max. @ 1A12V DC
- Insulation Resistance: 1,000MQ Min. at 500V DC
- Dielectric Strength: 2,000VRMs @ sea level
- Operating Temperature: -20°C to +55°C
- Mechanical Life: Momentary 1,000,000 Cycles, Self-Lock 500,000
- Electrical Life: 50,000 cycles at full load
- Torque: 5Nm to 14Nm
- Panel Thickness: Up to 10mm
- Ingress Protection: IP67, IK10
- Material: Bushing Stainless Steel/Nickel Plated Brass/Aluminum alloy, Base PBT/PC, Actuator PC/Stainless Steel
- Terminal Shape: Solder terminal
- Travel: About 3.2mm
- Operation Pressure: 1.5N to 2.5N
Buy the Multicomp:ro MPB19A0F10R312JQ – Reliable Industrial Pushbutton for Automation
Purchase the reliable industrial pushbutton switch online today. Designed for harsh environments, it features stainless steel and nickel-plated brass components, IP67 protection, and a long mechanical life. Suitable for panels up to 10mm thick, it provides consistent performance with silver contacts rated at 250V AC and 3A resistive load. This switch is ideal for automation, machinery, and control systems requiring durable, high-quality components. Order now for prompt delivery and support for your industrial applications.
Get Multicomp:ro MPB19A0F10R312JQ today—built for precision and long-lasting durability in industrial control systems.
