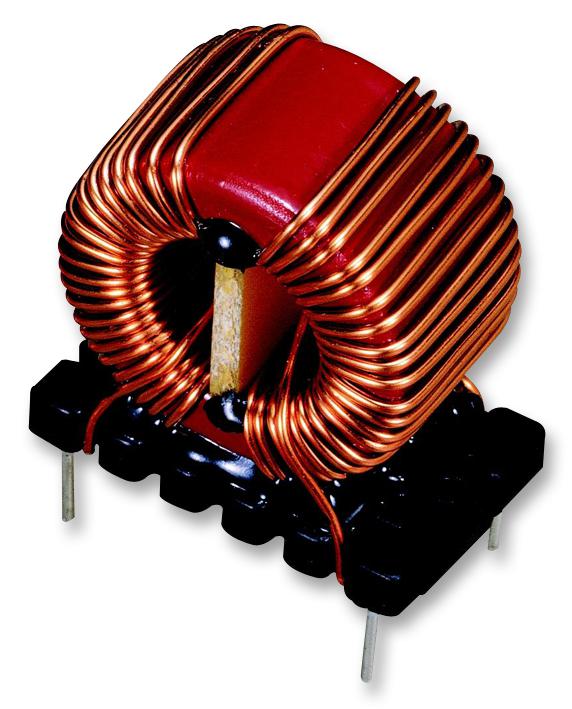

MULTICOMP PRO MCAPB108020100A471MU Toroidal Inductor
The MCAPB108020100A-471MU is a 470 microhenry toroidal inductor with a T80-75-TAF200 core, suitable for power management and industrial applications. It features a 0.8 mm UEFN/U wire rated for 155°C, with lead-free Sn99.3% / Cu0.7% solder, and is built on a 1.5 mm thick FR4 substrate. Designed for operating temperatures from -55°C to 130°C, it offers low DCR and high inductance stability. The component includes quality solder coating, ensuring reliable electrical and mechanical performance in demanding environments.
MULTICOMP PRO MCAPB108020100A471MU Toroidal Inductor Specifications:
- Inductance: 470μH ±20%
- Maximum DCR: 110mΩ
- Operating Temperature: -55°C to +130°C
- Core Material: T80-75-TAF200
- Wire Diameter: 0.8mm UEFN/U (155°C)
- Solder: Lead-free Sn99.3% / Cu0.7%
- Substrate: FR4, thickness 1.5mm
- Test Frequency: 1kHz
- Test Voltage: 0.25V
- Inductance Tolerance: ±20%
- Temperature Rise: Max 40°C
- Solderability: ≥95% surface coverage
- Moisture Sensitivity: According to J-STD-020B Level 3
- Reliability: Includes temperature and humidity testing
- Part Number: MCAPB108020100A-471MU
Buy the Buy Multicomp Toroidal Inductor Part Number MCAPB108020100A-471MU Online
Get the high-performance 470 microhenry toroidal inductor designed for industrial and power applications. With a T80-75-TAF200 core, 0.8mm wire rated at 155°C, and a temperature range from -55°C to +130°C, this component ensures optimal electrical stability and durability. Its lead-free solder coating guarantees reliable connections, while the FR4 substrate provides mechanical strength. Ideal for demanding environments requiring low DCR, consistent inductance, and moisture resistance. Purchase online now for fast delivery and trusted quality from Multicomp Pro.
Order your Multicomp Toroidal Inductor MCAPB108020100A-471MU today and experience reliable power management in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCAPB108020100A471MU?
You can click on the BUY or RFQ button to purchase MCAPB108020100A471MU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCAPB108020100A471MU?
You can download the MCAPB108020100A471MU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCAPB108020100A471MU?
MULTICOMP PRO
