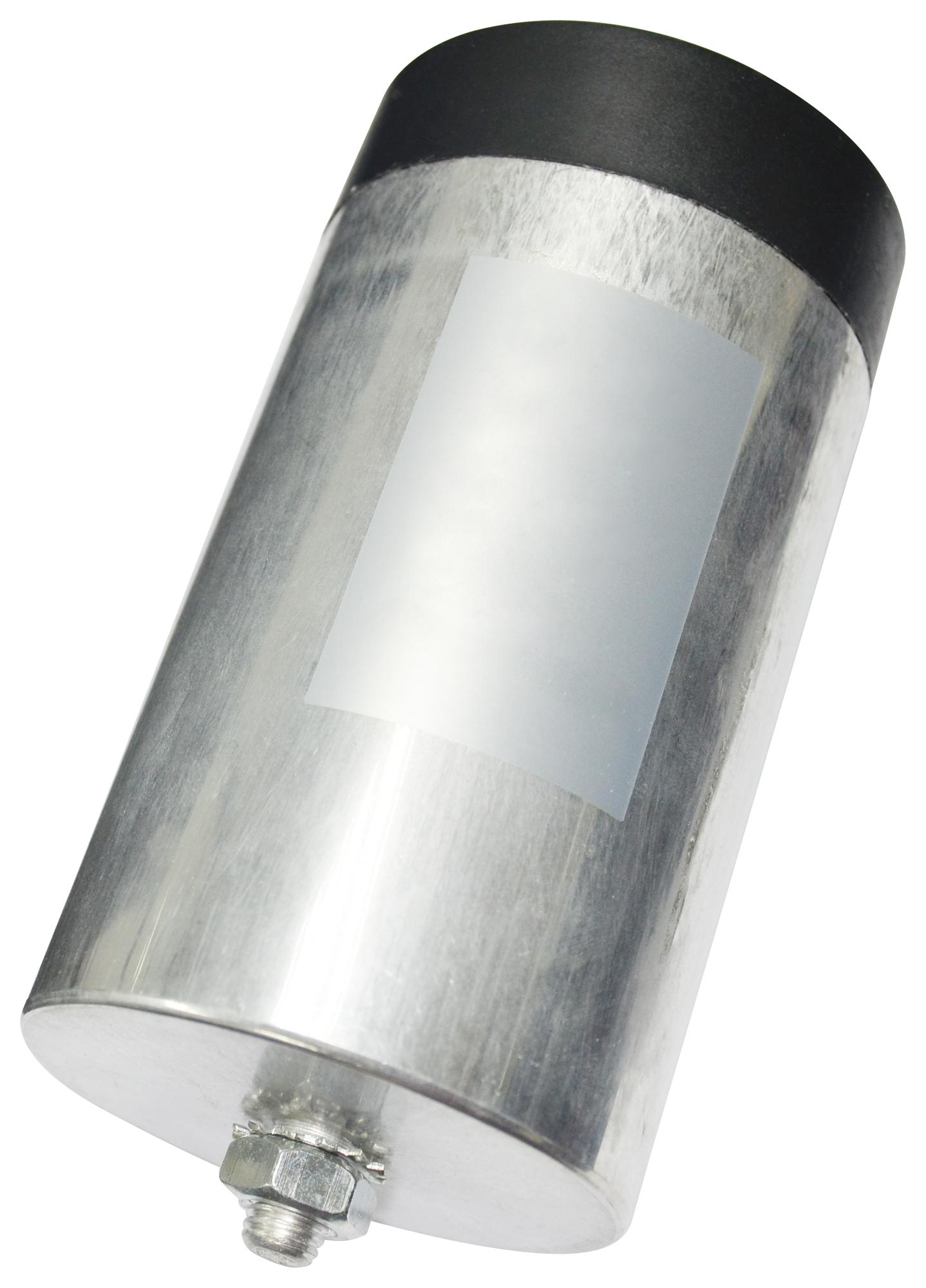

MULTICOMP PRO MPDAT356J360VD50T4M DC-Link Capacitor
The DC-Link Film Capacitor of the MPDAT Series is designed for high-performance applications such as wind and solar power inverters, electric vehicles, and motor driver systems. It features low ESR, high ripple current handling, self-healing properties, and operates within a temperature range of -40°C to +85°C. Available capacities include 10uF, 35uF, and 50uF with rated voltages up to 450V. Its metallized polypropylene film dielectric ensures durability, reliability, and efficient energy storage for demanding industrial applications.
MULTICOMP PRO MPDAT356J360VD50T4M DC-Link Capacitor Specifications:
- Reference Standard: GB/T17702 (IEC 61071)
- Climatic Category: 2 40/85/56
- Operating Temperature Range: -40°C to +85°C
- Capacitance Range: 10uF to 50uF
- Capacitance Tolerance: ±5%
- Test Voltage Between Terminals: 1.5Un (10s, 20°C +5°C)
- Test Voltage Between Terminals and Case: 1500V DC, 3000V AC (10s, 50Hz, 20°C +5°C)
- Rated Voltage (Urms): 300V, 360V, 450V
- Rated Frequency: 50/60Hz
- Life Expectancy: 100,000 hours at Un and Ons +70°C
- Dielectric Material: Metallized Polypropylene Film
- Max Altitude: 2000m
- Connectors: Aluminium Bolts (M8, torque <4.5 N·m), Leads to Electrical Extremes: 250# (2+2) Quick insert
Buy the Avenwick Series MPDAT DC-Link Film Capacitor: MPDAT356J360VD50T4M
Secure your high-quality DC-Link capacitor from the MPDAT Series online today. Designed for inverters, EVs, wind, and solar energy systems, these capacitors offer low ESR, high ripple current, and long life. Perfect for industrial power applications requiring durable, efficient energy storage and reliable self-healing performance. Make your purchase now and ensure your projects stay driven by dependable, advanced capacitor technology for optimal energy management and performance in demanding environments.
Order your Avenwick Series MPDAT DC-Link Film Capacitor today and ensure reliable energy storage for your wind, solar, or electric vehicle systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDAT356J360VD50T4M?
You can click on the BUY or RFQ button to purchase MPDAT356J360VD50T4M from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDAT356J360VD50T4M?
You can download the MPDAT356J360VD50T4M datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDAT356J360VD50T4M?
MULTICOMP PRO
