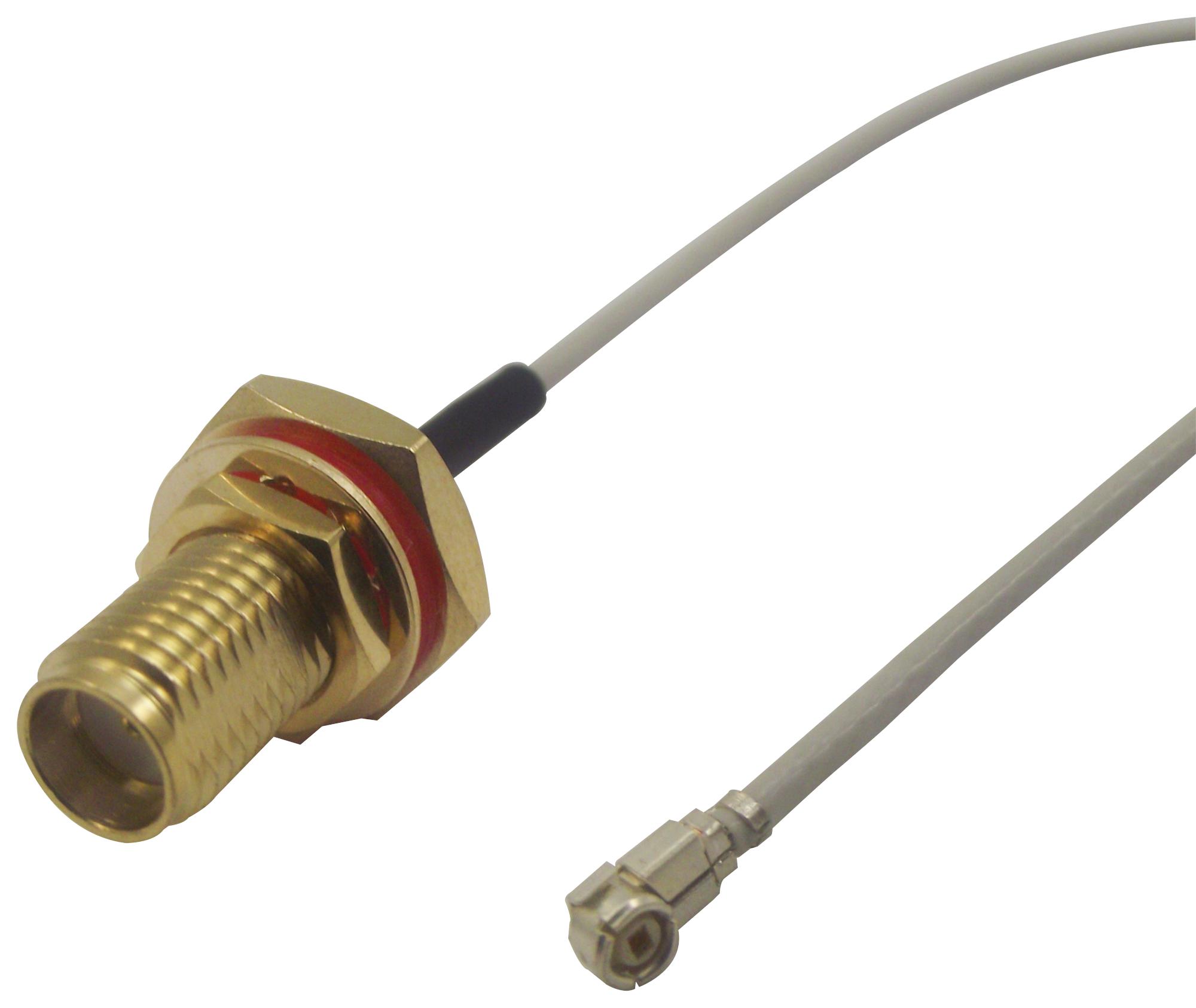

MULTICOMP PRO MC000823 RF Coaxial Cable Assembly

The MC000823 is a 200mm long, white IP67-rated RF coaxial cable assembly designed for outdoor RF communication. It features a 50Ω impedance and supports frequencies from DC to 3 GHz. Equipped with an SMA bulkhead jack and a 90° UFL connector, it is built with a low-loss 1.37mm micro coaxial cable in a white sheath. The assembly has a maximum working voltage of 60V RMS, dielectric withstand voltage of 200V RMS, and an insulator resistance of at least 500 megaohms. It ensures reliable performance with an insertion loss no more than -1.0dB, VSWR up to 1.4:1, and operates effectively in temperatures from -20°C to +70°C.

View MC000823Datasheet [pdf]

Buy the Multicom 200mm IP67 RF Cable – Reliable Coaxial Assembly for Industrial Applications

Enhance your outdoor RF communication systems with this durable 200mm white IP67-rated coaxial cable assembly. Featuring a 50Ω impedance, DC to 3GHz frequency range, SMA bulkhead jack, and UFL connector, it offers excellent performance and weather resistance. Designed with a low-loss 1.37mm cable, this assembly supports up to 60V RMS and dielectric withstand voltage of 200V RMS. Its compact design, high insulator resistance, and optimal VSWR ensure reliable connectivity in demanding environments. Purchase online today for quick delivery and professional-grade quality.

Order your Multicom series MC000823 200mm white IP67 RF coaxial cable today and ensure your outdoor RF communication projects are protected with dependable, high-performance connectors.
