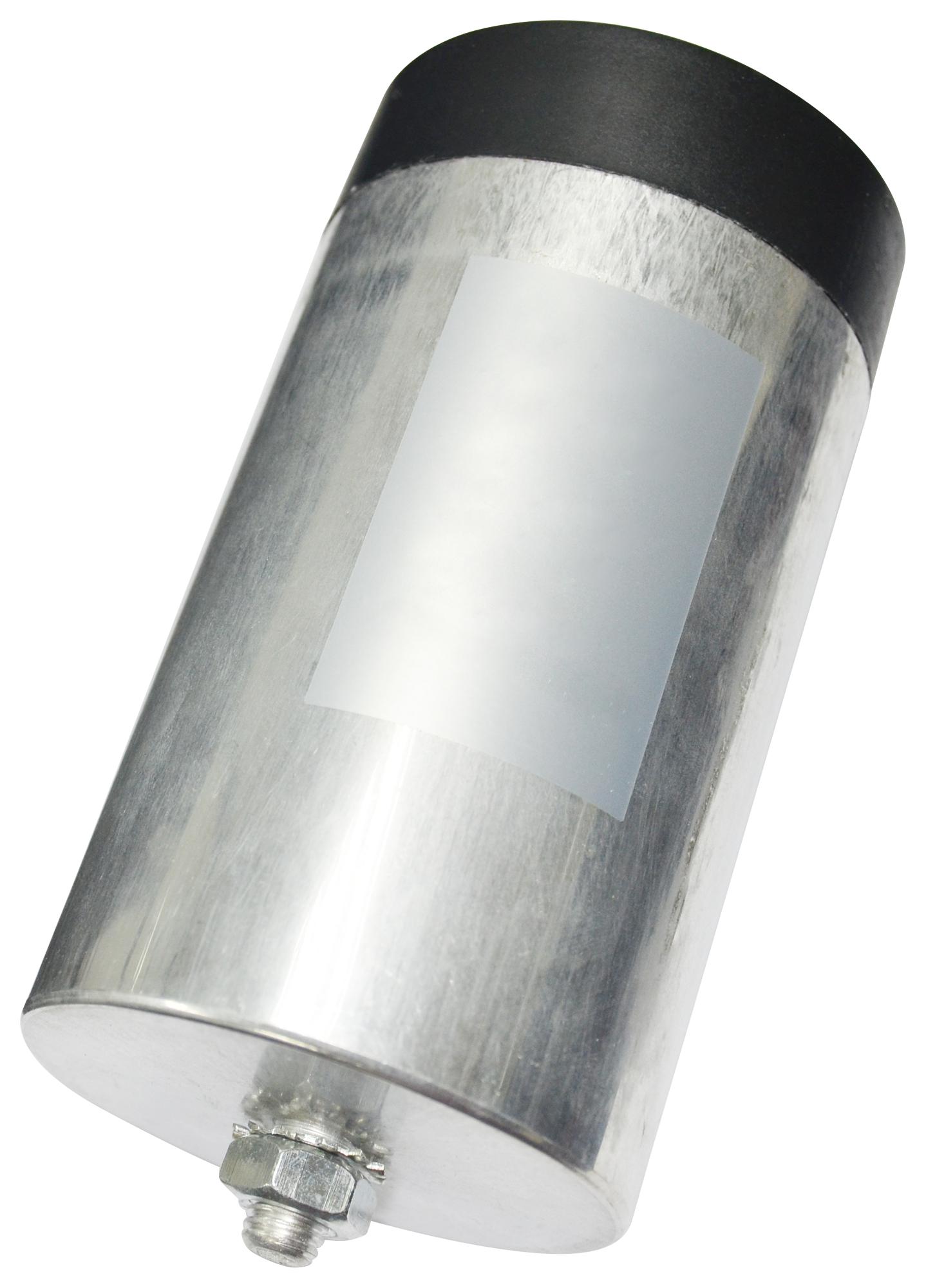

MULTICOMP PRO MPDAT406J480VD76N6M DC-Link Film Capacitor
The MPDAT406J480VD76N6M is a DC-Link film capacitor with a 40uF capacitance and a 480V rated voltage, designed for efficient energy storage in power inverter systems. Constructed with metallized polypropylene film, it features self-healing properties, low ESR, and high ripple current handling, making it ideal for wind, solar power inverters, EV and HEV transportation, and industrial motor drives. Its robust design ensures long-life operation, high reliability, and excellent performance in demanding applications. Compliant with GB/T17702 standards, it withstands harsh climatic conditions from -40°C to +85°C.
MULTICOMP PRO MPDAT406J480VD76N6M DC-Link Film Capacitor Specifications:
- Capacitance: 40uF
- Rated Voltage (Urms): 480V
- Test Voltage Between Terminals: 1500V DC, 3000V AC (10s, 50Hz, 20°C +5°C)
- Capacitance Tolerance: ±5%
- Temperature Range: -40°C to +85°C
- Dielectric Material: Metallized Polypropylene Film
- Climatic Category: 2 40/85/56
- Life Expectancy: 100,000 hours at Un and Ons +70°C
- Reference Standard: GB/T17702 (IEC 61071)
- Dimensions: Diameter 76 mm, Height 140 mm
- Max. Altitude: 2000m
- Leakage Current: IRx CN 5000s at 20°C, 500V DC, 1 min
- Installation: Aluminium Bolts (M12, 10N·m)
Buy the Farnell Series DC-Link Film Capacitor: MPDAT406J480VD76N6M
Experience reliable energy storage with the Farnell MPDAT406J480VD76N6M DC-Link film capacitor. Designed for inverter, solar, wind power, and industrial motor systems, it offers low ESR, high ripple current, and long life expectancy. Its metallized polypropylene dielectric ensures excellent performance and self-healing capabilities, supporting demanding environments from -40°C to +85°C. Easy to install with aluminum bolts, this capacitor guarantees durability and efficiency for your renewable energy projects and industrial drives. Buy online today for top-tier performance and peace of mind.
Get Farnell MPDAT406J480VD76N6M today—built for high reliability and efficient energy storage in inverter and industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDAT406J480VD76N6M?
You can click on the BUY or RFQ button to purchase MPDAT406J480VD76N6M from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDAT406J480VD76N6M?
You can download the MPDAT406J480VD76N6M datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDAT406J480VD76N6M?
MULTICOMP PRO
