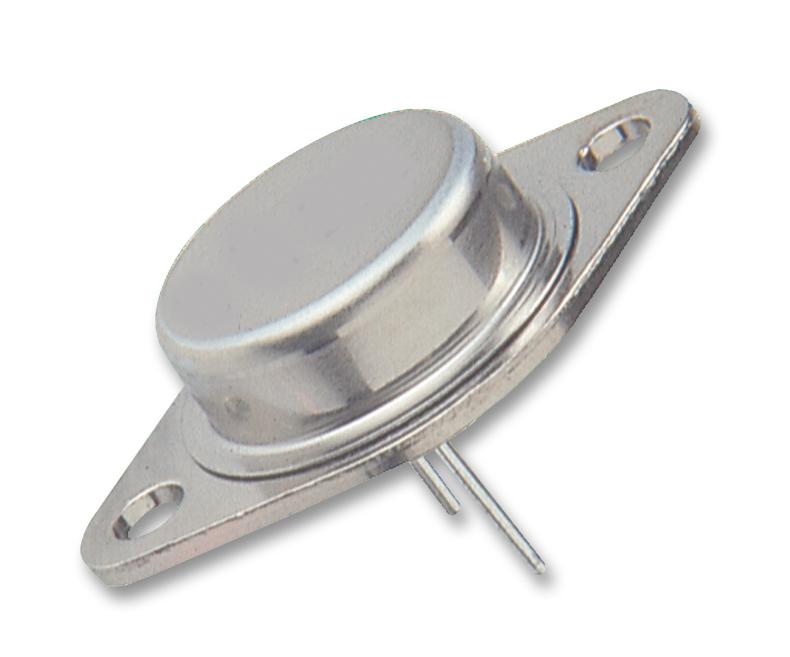

MULTICOMP PRO MJ11016 Darlington Transistor
The MJ11016 is a Darlington transistor designed for use as an output device in complementary general-purpose amplifier applications. It features high current gain, high DC current gain, and a monolithic construction with a built-in base-emitter shunt resistor. Suitable for audio applications, this transistor offers reliable performance for various amplification needs.
MULTICOMP PRO MJ11016 Darlington Transistor Specifications:
- Collector-Emitter Voltage Vero 120 V
- Collector-Base Voltage Veo 120 V
- Emitter-Base Voltage Veso 5 V
- Collector Current -Continuous lc 30 A
- Peak Collector Current 50 A
- Base Current Is 1 A
- Total Power Dissipation @Tc= 25°C P 200 W
- Thermal Resistance Junction to Case Rejc 0.87 °C/W
- Operating and Storage Junction Temperature Range Tj, Tst -65 to +200 °C
- Collector-Emitter Saturation Voltage Voe (sat) 0.7 V
- Base-Emitter Saturation Voltage Vee (sat) 3.5 V
- Collector-Emitter Voltage (Vce) 120 V
- Collector Cutoff Current Ileo 0 mA
- Emitter Cutoff Current Iebo 0 mA
- Small-Signal Current Gain hFE Min 1000 at Ic=20A
- Thermal characteristics include power dissipation up to 200W and thermal resistance of 0.87°C/W
Buy the Farnell MJ11016 U+2013 Reliable Darlington Transistor for Industrial Applications
Purchase the Farnell MJ11016 Darlington transistor online today for exceptional high-current performance and reliable amplification. Designed for use in amplifiers and industrial applications, it features high current gain, robust power handling, and a monolithic construction with a built-in base-emitter shunt resistor. This reliable component ensures efficient operation with a maximum collector-emitter voltage of 120V and supports power dissipation up to 200W. Order now to benefit from fast delivery and expert support for all your industrial and electronic needs.
Get Farnell MJ11016 today—built for precision and long-lasting durability in high-current amplification applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MJ11016?
You can click on the BUY or RFQ button to purchase MJ11016 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MJ11016?
You can download the MJ11016 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MJ11016?
MULTICOMP PRO
