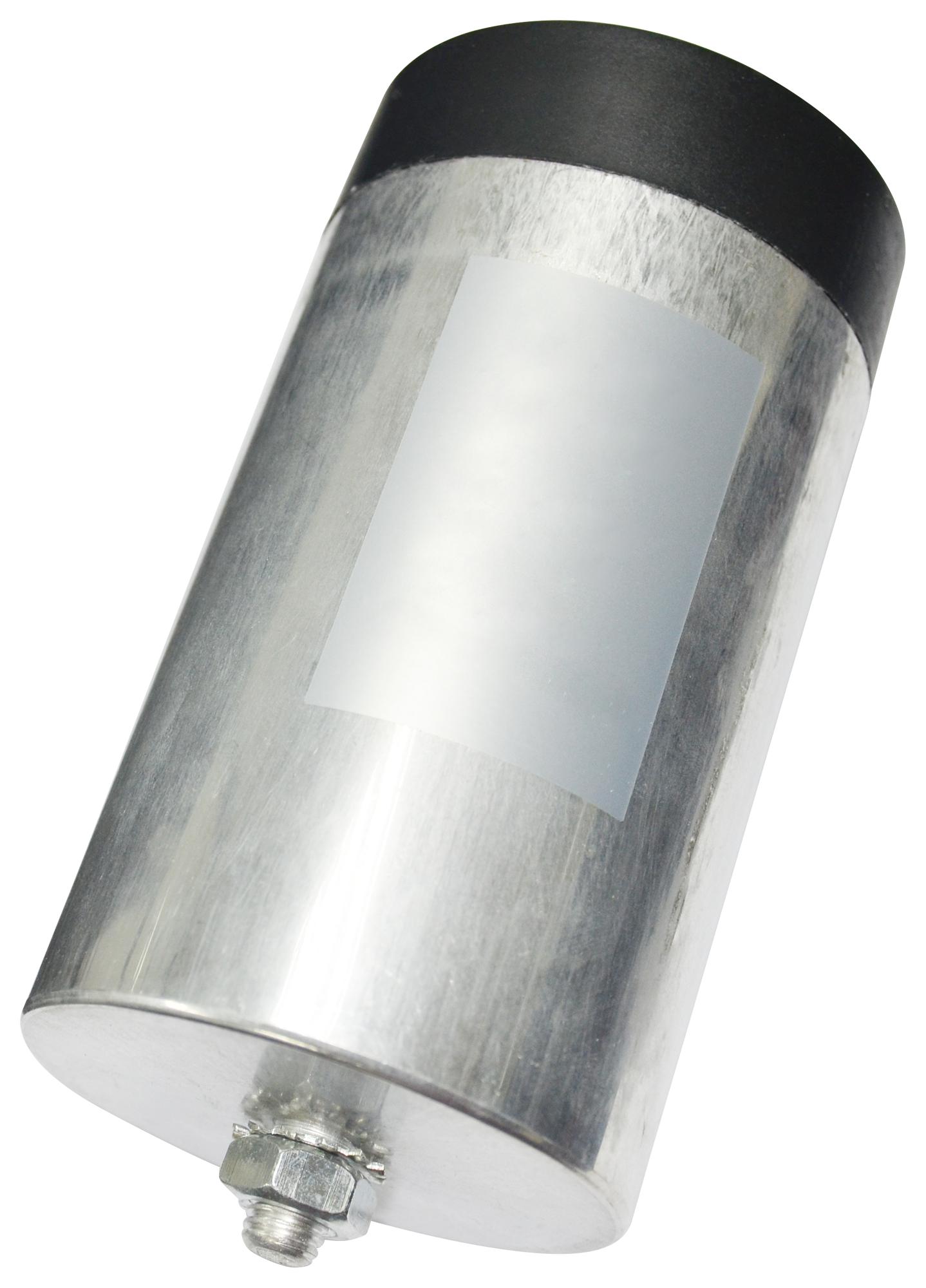

MULTICOMP PRO MPDAT506J300VD50T4M DC-Link Capacitor
DC-Link film capacitors are essential components used in high-power inverter systems for renewable energy, electric vehicles, welders, and motor drives. Made with metallized polypropylene film, they offer low ESR, high ripple current capacity, and self-healing features, ensuring durability and reliable performance in demanding environments. These capacitors operate effectively from -40°C to +85°C, with voltage ratings up to 450V and capacitance from 10uF to 50uF. They meet IEC 61071 standards, making them ideal for DC-link circuits replacing electrolytic capacitors and supporting renewable and transportation applications.
MULTICOMP PRO MPDAT506J300VD50T4M DC-Link Capacitor Specifications:
- Climatic Category 2 40/85/56
- Operating Temperature Range: -40°C to +85°C
- Capacitance Range: 10uF to 50uF
- Capacitance Tolerance: ±5%(J)
- Rated Voltage (Urms): 300V, 360V, 450V
- Test Voltage Between Terminals: 1.5Un (10s, 20°C +5°C)
- Test Voltage Between Terminals and Case: 1500V DC, 3000V AC (10s, 50Hz, 20°C +5°C)
- IRx CN: 5000s (20°C, 500V DC, 1 min)
- Max. Altitude: 2000m
- Rated Frequency: 50/60Hz
- Life Expectancy: 100,000 hours at Un and Ons +70°C
- Dielectric Material: Metallized Polypropylene Film
- Physical Dimensions: Length 42-50 mm, Width 22-45 mm, Height 65-85 mm (varies by model)
- Leads: 250# (2+2) quick insert
- Max. Current: Up to 18A
- ESR: Approx. 0.4-0.57 mΩ
Buy the Buy Multicomp DC-Link Film Capacitors Part Number MPDAT506J300VD50T4M Online
Purchase the Multicomp DC-Link Capacitor MPDAT506J300VD50T4M online today. Designed for renewable energy, motor drives, and high-power inverter systems, this capacitor offers low ESR, high ripple current handling, and long service life. With ratings up to 450V and capacitance from 10uF to 50uF, it ensures reliable operation across a wide temperature range from -40°C to +85°C. Ideal for replacing electrolytic capacitors in demanding applications, ensuring durability and optimal performance in industrial and transportation sectors.
Get Multicomp DC-Link Film Capacitor MPDAT506J300VD50T4M today—built for high ripple current and reliable inverter performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDAT506J300VD50T4M?
You can click on the BUY or RFQ button to purchase MPDAT506J300VD50T4M from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDAT506J300VD50T4M?
You can download the MPDAT506J300VD50T4M datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDAT506J300VD50T4M?
MULTICOMP PRO
