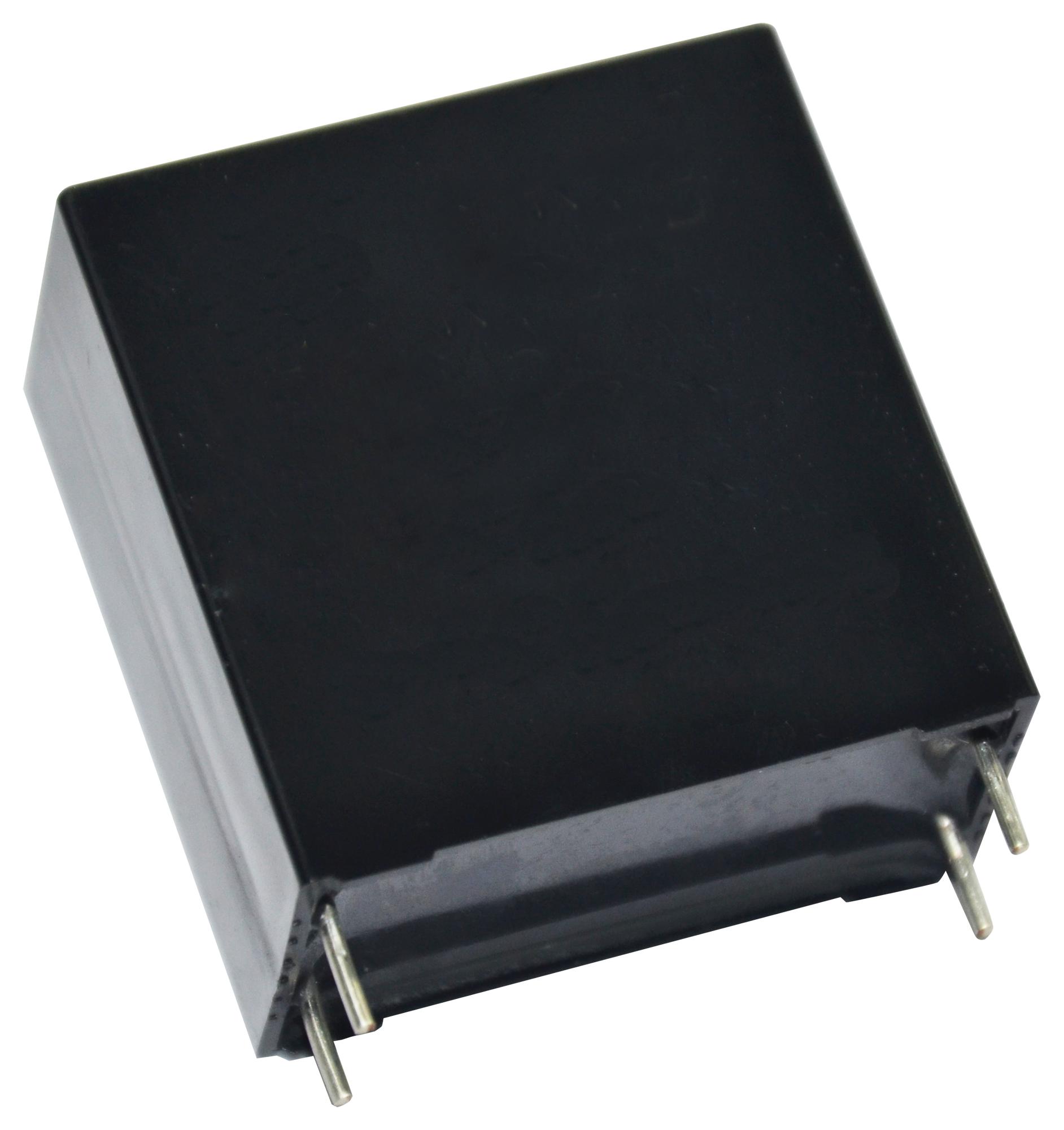

MULTICOMP PRO MPDPB700A75K4Y050 DC-link film capacitor
The MPDPB700A75K4Y050 is a high-performance DC-link film capacitor with radial lead construction, designed for industrial applications such as frequency converters, power supplies, and solar inverters. Built with metallized polypropylene film, it offers excellent electrical properties, a rated voltage of 700V DC, and a capacitance of 75µF. The capacitor features a UL94 V-0 plastic case filled with resin, with a temperature range of -40°C to +105°C and an expected lifetime of up to 100,000 hours, ensuring long-term reliability in demanding environments.
MULTICOMP PRO MPDPB700A75K4Y050 DC-link film capacitor Specifications:
- Climatic Category: 40/105/56
- Rated Temperature: +85°C
- Operating Temperature Range: -40°C to +105°C
- Rated Voltage Un: 700V DC
- Capacitance Range: 8µF to 80µF
- Capacitance Tolerance: ±10%
- Voltage Proof: 1.5UN (10s)
- Insulation Resistance: 210,000s at 20°C and 100V DC for 1 min
- Self-Inductance: <1nH per mm of lead spacing
- Max Peak Current: 1=C.dV/dt
- Expected Lifetime: 100,000 hours at Un, 70°C
- Construction: Metallized polypropylene film
- Case Material: UL94 V-0 plastic filled with resin
- Dimensions: Diameter approximately 35mm, length approximately 52.5mm with radial leads
- Lead Diameter: 1.2mm
- Standards: GB/T17702, IEC 61071
Buy the Multicomp Pro MPDPB700A75K4Y050 – Reliable DC-Link Film Capacitor for Industrial Applications
Purchase the Multicomp Pro MPDPB700A75K4Y050 online to ensure your industrial power systems operate with high reliability and efficiency. Designed for demanding environments, this 75μF, 700V DC capacitor features excellent electrical properties, a robust resin-filled UL94 V-0 plastic case, and long-term performance of up to 100,000 hours. Its radial lead construction simplifies installation in power converters, solar inverters, and high-end power supplies. Trust this capacitor for your critical applications and enjoy quick, secure online purchasing today.
Get Multicomp Pro MPDPB700A75K4Y050 today—built for precision and long-lasting durability in power conversion systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDPB700A75K4Y050?
You can click on the BUY or RFQ button to purchase MPDPB700A75K4Y050 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDPB700A75K4Y050?
You can download the MPDPB700A75K4Y050 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDPB700A75K4Y050?
MULTICOMP PRO
