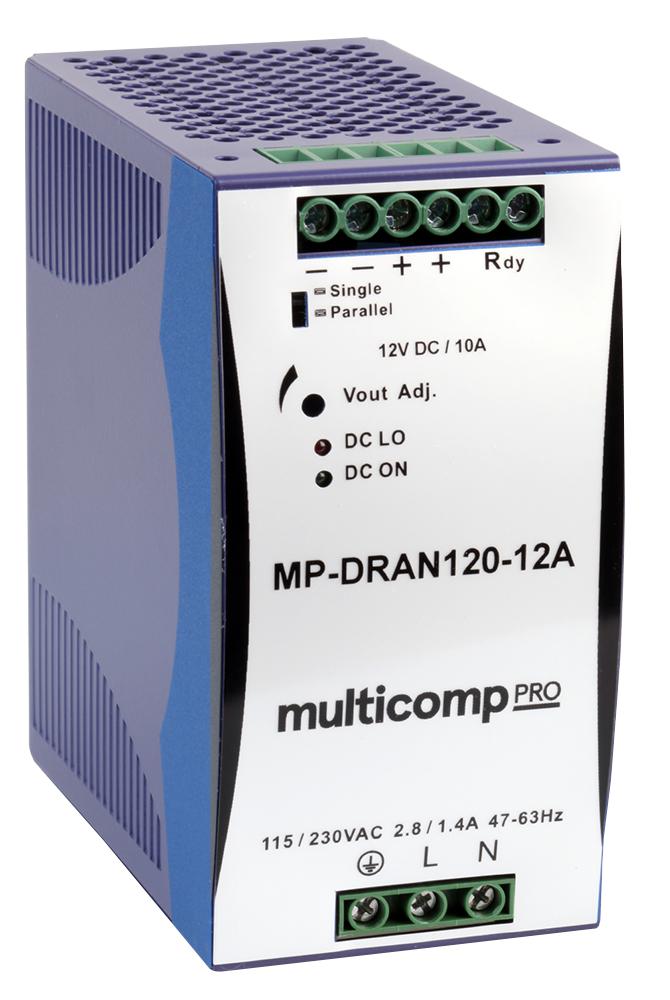

MULTICOMP PRO MPDRAN12012A Industrial Power Supply
The MPDRAN12012A is a 120W AC to DC power supply designed for DIN rail mounting. It features active Power Factor Correction, parallel operation capability, and universal input voltage (115/230V AC). Suitable for industrial automation, it offers high efficiency up to 87%, wide temperature range from -35°C to +71°C with derating, and comprehensive safety standards including UL and CE certifications. The power supply includes indicators for operation and low voltage, ensuring reliable performance in demanding electrical environments, with robust insulation and protective features for industrial applications.
MULTICOMP PRO MPDRAN12012A Industrial Power Supply Specifications:
- Input Voltage: 115/230V AC, auto select
- Output Wattage: 120W
- Output Voltage: +12V DC, +24V DC, +48V DC options
- Output Current: 10A for 12V, 5A for 24V, 2.58A for 48V
- Efficiency: Up to 87%
- Isolation Voltage: Input-Output 3,000/4,242 VAC, Input-FG 1,500/2,121 VAC
- Dimensions: 124.5mm x 64mm x 123.6mm, Metal case
- Operating Temperature: -35°C to +71°C (derating from +61°C)
- Cooling: Free air convection, all sides with 25mm clearance
- Input Frequency: 47-63Hz
- Leakage Current: Input-Output 0.25mA
- Protection: Over-voltage, short circuit, overcurrent
- Certifications: UL 508, UL 60950-1, UL 1310, EN 61000-6-3, EN 61000-4-4, CE
- Inrush Current: 24/48A at 115/230V
- Case Size: 124.5mm x 64mm x 123.6mm, Weight: 920g
- Connector: Screw terminal, AWG24-10
Buy the Buy Multicomp Power Supply Part Number MPDRAN12012A Online
Enhance your industrial control systems with the reliable MPDRAN12012A power supply, featuring universal input, high efficiency up to 87%, and robust safety standards. Designed for DIN rail mounting, this 120W power source supports multiple output options including +12V, +24V, and +48V DC, making it suitable for automation and manufacturing environments. Its wide operating temperature range and safety certifications ensure durability and performance. Purchase online today and get fast delivery, expert support, and the dependability your projects require.
Order your Multicomp Series MPDRAN12012A power supply today and ensure reliable, high-efficiency power for industrial automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDRAN12012A?
You can click on the BUY or RFQ button to purchase MPDRAN12012A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDRAN12012A?
You can download the MPDRAN12012A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDRAN12012A?
MULTICOMP PRO
