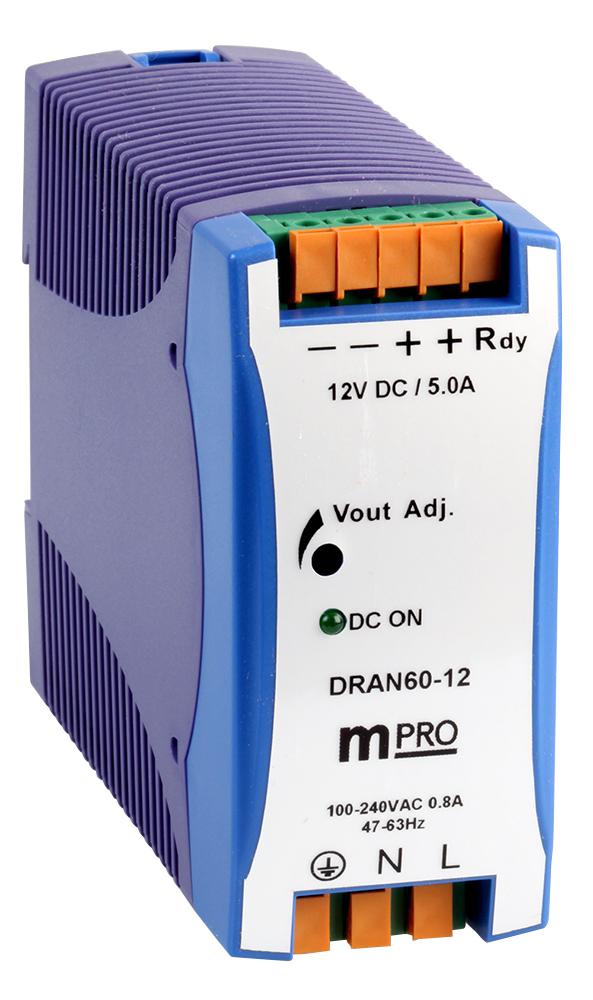

MULTICOMP PRO MPDRAN6012 industrial power supply
The MPDRAN60 series is a DIN rail mountable switching power supply offering high efficiency up to 89%, wide input voltage range of 85V AC to 264V AC, and robust features such as short circuit protection and internal input filter. Designed for industrial automation, the units operate over a temperature range from -40°C to +71°C with a compact case size. They support various output voltages including 5V, 12V, 24V, and 48V, making them suitable for diverse industrial applications requiring reliable power conversion and high performance.
MULTICOMP PRO MPDRAN6012 industrial power supply Specifications:
- Input Voltage Range: 85V AC to 264V AC, 100VAC to 375VAC DC in, 47-63Hz line frequency
- Output Voltages: 5V, 12V, 24V, 48V (adjustable range for some models)
- Output Current: 5V up to 10A, 12V up to 2.5A, 24V up to 2.5A, 48V up to 1.25A
- Efficiency: Up to 89% (typical), with models achieving 86-89%
- Protection: Short circuit, overvoltage, and overcurrent protection
- Isolation Voltage: Input to output 3,000/4,242 VAC, Input to GND 1,500/2,121 VAC, Output to GND 500/710 VAC
- Operating Temperature: -40°C to +71°C, derating above +61°C
- Dimensions: 90mm x 40.5mm x 114mm, plastic case, capable of snap-on mounting to DIN rail
- Certifications: UL 508, UL 60950-1, UL 62368-1, IEC standards, CE
Buy the Multicomp MPDRAN60 Reliable Power Supply for Industrial Applications
Enhance your industrial automation systems with the robust and high-efficiency Multicomp MPDRAN60 power supply. This DIN rail mountable unit provides a wide input voltage range of 85V AC to 264V AC and features multiple output options including 5V, 12V, 24V, and 48V, supporting various application needs. It offers high efficiency up to 89%, ensuring energy savings and reduced operational costs. Built-in protections against short circuits, overvoltage, and overcurrent make it a dependable choice for demanding environments. Easy installation, standard certifications, and reliable operation make this power supply an excellent choice for industrial facilities seeking durable, high-performance power conversion solutions.
Buy Multicomp MPDRAN60 now and experience unmatched reliability and performance for your industrial automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDRAN6012?
You can click on the BUY or RFQ button to purchase MPDRAN6012 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDRAN6012?
You can download the MPDRAN6012 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDRAN6012?
MULTICOMP PRO
