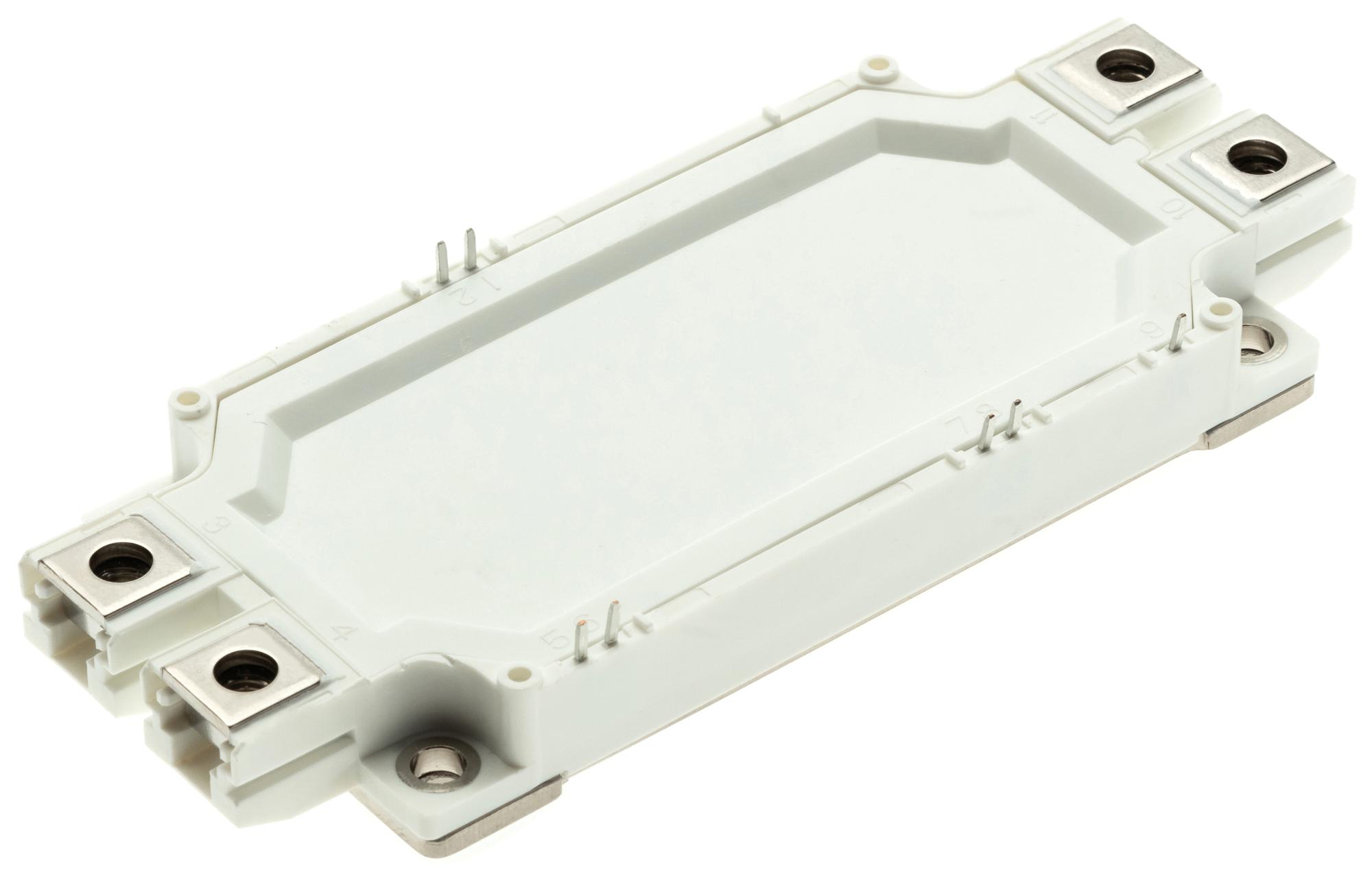

MULTICOMP PRO MPIM600M117TG5 IGBT Module
The multicomppro half bridge IGBT module operating at 1700V and 600A is designed for high reliability applications like wind turbines, power charging, and smart grids. Featuring trench gate, Gen 5 TMOS IGBT technology with enhanced field stop, it offers high thermal cycling, short circuit withstand capability up to 10 microseconds, and low inductance construction for safer circuit layouts and grounded heat sinks. Its robust design ensures high performance and safety in demanding power electronics environments.
MULTICOMP PRO MPIM600M117TG5 IGBT Module Specifications:
- Collector-emitter voltage: 1700 V
- Collector current: 600 A
- Peak collector current: 1200 A
- Gate-emitter voltage: +20 V
- Power dissipation: 3.26 kW
- Isolation voltage: 3400 V RMS
- Thermal resistance IGBT: 46°C/W
- Junction temperature: 150°C
- Storage temperature: -125°C to +150°C
- Creepage distance terminal to heatsink: 14.5mm
- Creepage distance terminal to terminal: 13mm
- Module weight: 345g
- Mounting screw torque: 7 Nm
- Insulation material: Al2O3
- Baseplate material: Cu
Buy the Buy multicomppro Half Bridge IGBT Module Part Number MPIM600M117TG5 Online
Purchase the multicomppro 1700V, 600A IGBT module MPIM600M117TG5 online easily. This high-reliability component features trench gate technology, enhanced thermal cycling, and a compact, low inductance design that optimizes circuit safety and performance. Ideal for wind turbines, power conversion, and smart grid applications, it ensures long-lasting durability with robust electrical and thermal characteristics. Experience seamless ordering, fast delivery, and technical support all in one convenient online platform to enhance your power electronics projects.
Get multicomppro Half Bridge IGBT Module MPIM600M117TG5 today—designed for high voltage and current applications with superior safety features and thermal performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPIM600M117TG5?
You can click on the BUY or RFQ button to purchase MPIM600M117TG5 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPIM600M117TG5?
You can download the MPIM600M117TG5 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPIM600M117TG5?
MULTICOMP PRO
